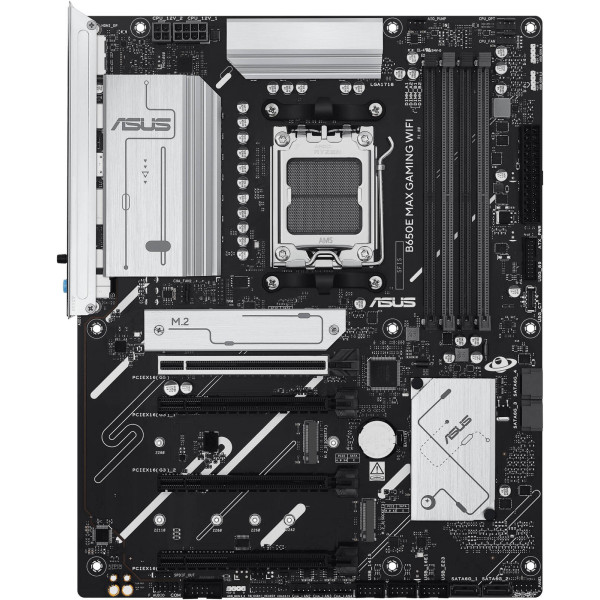

ASUS B650E MAX GAMING WIFI W is an excellent choice for gamers and PC builders seeking high performance and advanced features. It supports AMD Ryzen™ 7000, 8000, and 9000 series processors and comes with modern technologies such as DDR5 memory, PCIe 5.0, Wi-Fi 6E, and USB 10Gbps Type-C, making it ideal for high-performance gaming and demanding applications.
Key Features
• Supports AMD Ryzen™ 7000, 8000, and 9000 series processors
• High-performance AMD B650 chipset
• DDR5 memory support up to 256GB with speeds up to 8000+ MT/s (OC)
• Supports EXPO™ and AEMP for memory overclocking
• PCIe 5.0, 4.0, and 3.0 slots for powerful expansion
• High-speed storage options with M.2 and SATA ports
• Wi-Fi 6E and 2.5Gb Ethernet networking
• Multiple USB ports, including support for USB4
• Realtek 7.1 HD Audio with dedicated PCB layers and high-quality audio capacitors
• Video outputs: DisplayPort and HDMI
• Advanced cooling with VRM, M.2, and PCH heatsinks and Fan Xpert 2+ support
• Aura Sync RGB Gen 2 with customizable headers
• BIOS FlashBack™ for easy BIOS updates

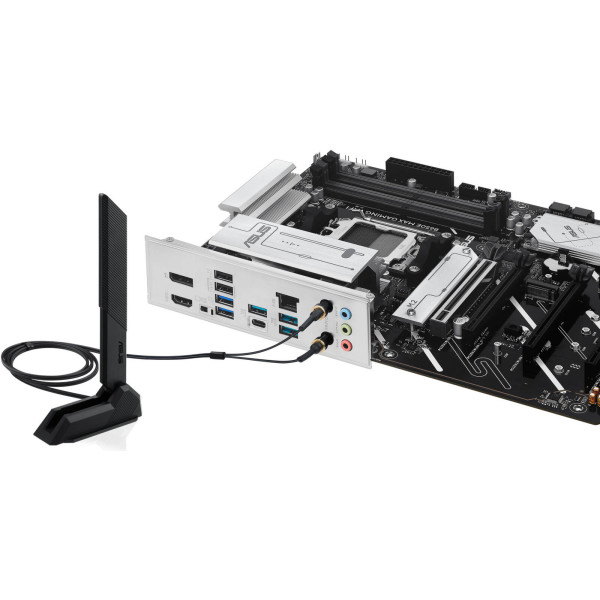

• Pre-mounted I/O shield, Q-Antenna, and Q-LED Core for easier installation
Technical Specifications
CPU Support:
• Socket AM5
• Compatible with AMD Ryzen™ 7000, 8000, and 9000 series
Chipset:
• AMD B650
Memory (RAM):
• 4 × DIMM DDR5 slots
• Supports up to 256GB
• Speeds up to 8000+ MT/s (OC)
• Supports EXPO™ and AEMP
Expansion Slots:
• 1 × PCIe 5.0 x16 (supports x16 mode)
• 1 × PCIe 4.0 x16 (supports x8/x4 mode)
• 1 × PCIe 4.0 x16 (supports x4 mode)
• 2 × PCIe 3.0 x16 (supports x1 mode)
Storage:
• 3 × M.2 slots (1 × PCIe 5.0 x4, 2 × PCIe 4.0 x4)
• 4 × SATA 6Gb/s ports
Networking:
• Wi-Fi 6E
• 2.5Gb Ethernet

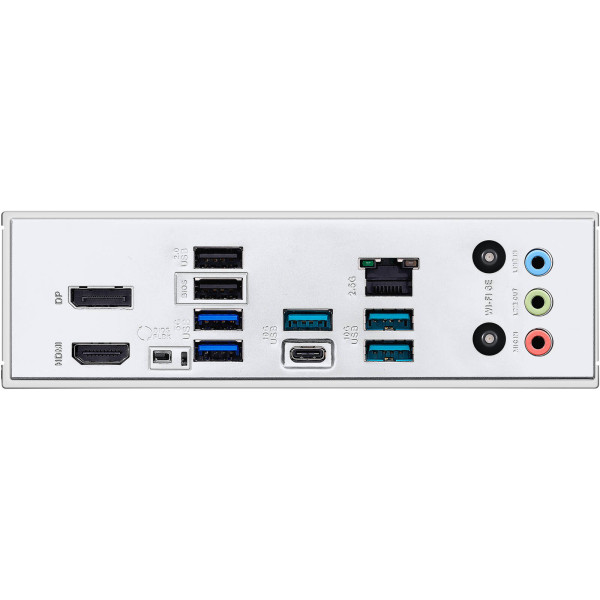

USB Ports:
Rear: 1 × USB 10Gbps Type-C®, 3 × USB 10Gbps Type-A, 2 × USB 5Gbps Type-A, 2 × USB 2.0 Type-A
Front: 1 × USB 5Gbps Type-C®, 1 × USB 5Gbps (supports 2 additional ports), 3 × USB 2.0 (supports 6 additional ports)
Audio:
• Realtek 7.1 HD Audio CODEC
• Supports jack detection, multi-streaming, front jack reset
• 24-bit/192kHz quality
• Dedicated PCB layers, high-quality audio capacitors, audio shielding
Video Outputs:
• 1 × DisplayPort (up to 8K@30Hz)
• 1 × HDMI™ (up to 4K@60Hz)
Cooling:
• Heatsinks for VRM, M.2, and PCH
• Hybrid fan headers with Fan Xpert 2+ support
