The ASUS B850 MAX GAMING WIFI W motherboard is an ideal choice for gamers and advanced PC builders. It supports AMD Ryzen™ 7000, 8000, and 9000 series processors, delivering high performance with advanced connectivity and a sleek white design featuring customizable RGB lighting.
Key Features
• Supports AMD Ryzen™ 7000, 8000, and 9000 series processors
• High-performance B850 chipset
• DDR5 memory support up to 256GB with OC speeds up to 8000+ MT/s
• PCIe 5.0 and 4.0 slots for powerful expansion
• High-speed M.2 and SATA storage options
• 2.5Gb Ethernet and Wi-Fi 6E networking
• Multiple USB ports including high-speed USB Type-C
• Aura Sync RGB support with customizable lighting
• BIOS FlashBack™ for easy BIOS updates
• SafeSlot reinforced PCIe slots for enhanced durability
• Sleek white design suitable for modern builds
Technical Specifications
CPU Support:
• Socket AM5
• Compatible with AMD Ryzen™ 7000, 8000, and 9000 series
Chipset:
• AMD B850
Memory:
• 4 × DIMM slots
• Supports up to 256GB DDR5
• OC speeds up to 8000+ MT/s
Expansion Slots:
• 1 × PCIe 5.0 x16 (supports x16 mode)
• 1 × PCIe 4.0 x16 (supports x4 mode)
• 2 × PCIe 3.0 x16 (supports x1 mode)
Storage:
• 3 × M.2 slots (1 × PCIe 5.0 x4, 2 × PCIe 4.0 x4)
• 4 × SATA 6Gb/s ports
Networking:
• Realtek 2.5Gb Ethernet
• Wi-Fi 6E
USB Ports:

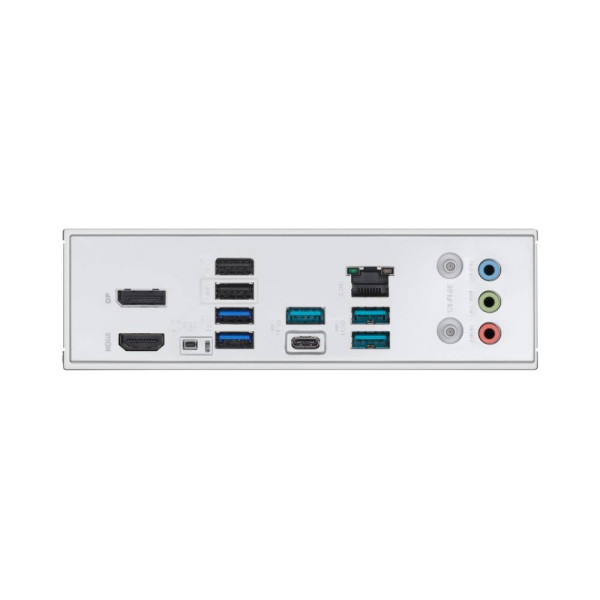

• Rear: USB 10Gbps Type-C, USB 3.2 Gen 2, USB 2.0
• Front: USB Type-C 5Gbps
Video Outputs:
• 1 × DisplayPort (up to 8K@30Hz)
• 1 × HDMI™ (up to 4K@60Hz)
Additional Features:
• BIOS FlashBack™
• SafeSlot PCIe
• Aura Sync RGB
• ASUS AI Advisor
