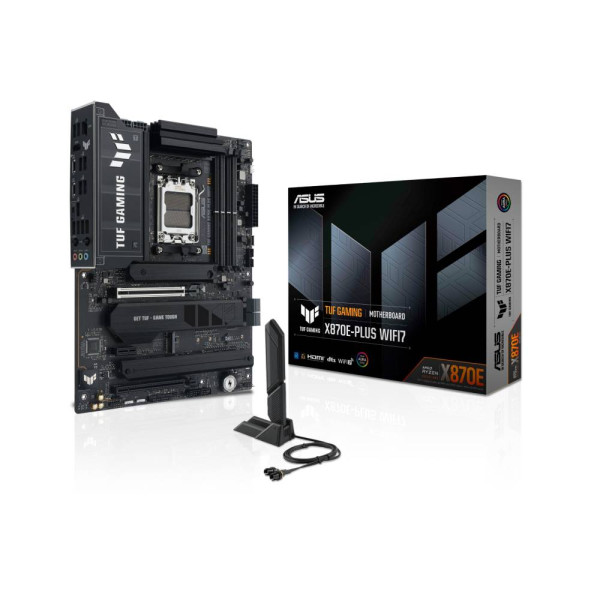

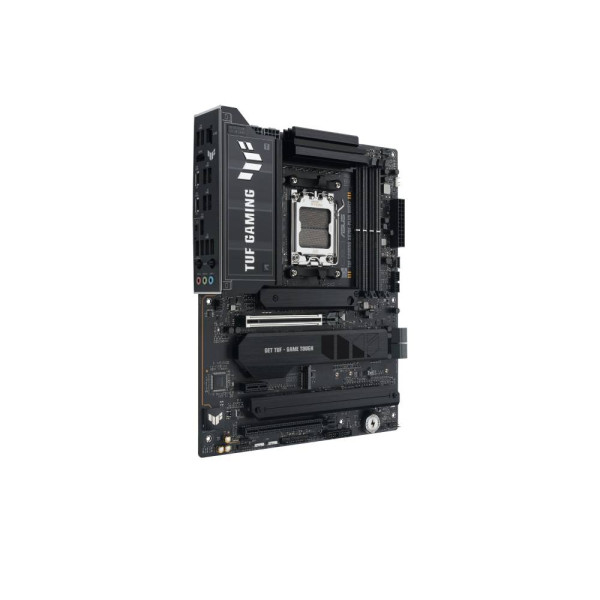

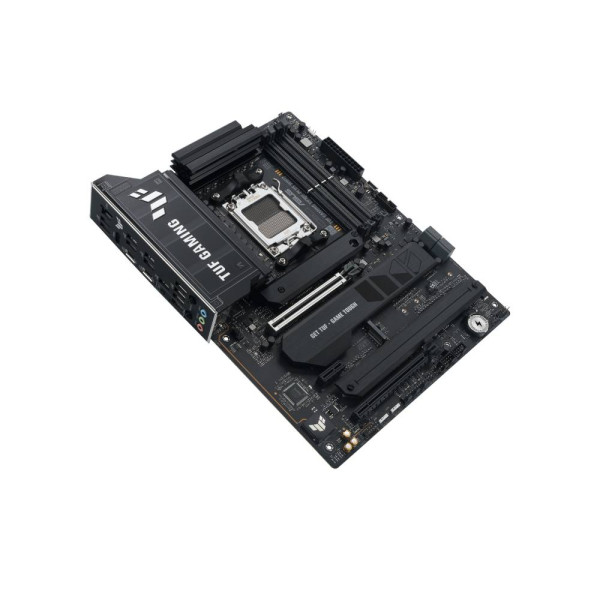

The ASUS TUF GAMING X870E-PLUS WIFI7 motherboard is engineered for gamers and power users who demand stability, speed, and next-gen features. Built on the AMD X870E chipset with AM5 socket support, it combines advanced AI-powered performance tuning, blazing-fast PCIe 5.0 storage, DDR5 memory up to 8000+ MT/s, and next-generation WiFi 7 connectivity. Designed with military-grade components and DIY-friendly features, it ensures long-lasting durability and high performance.
Key Features
Supports latest AMD Ryzen 9000 / 8000 / 7000 Series CPUs with AM5 socket.
DDR5 memory support up to 8000+ MT/s, max capacity 256GB.
Robust 16+2+1 power stage (80A) VRM design with enlarged heatsinks.
4 × M.2 slots (including PCIe 5.0) + 4 × SATA 6Gb/s ports.
PCIe 5.0 x16 SafeSlot for latest GPUs.
Dual USB4® 40Gbps ports + front USB-C 20Gbps with 30W fast charging.
WiFi 7 + Bluetooth v5.4 + 2.5GbE LAN.
DIY-friendly design: PCIe Q-Release, M.2 Q-Latch, Q-LED.
ASUS AI features: AI Overclocking, AI Cooling II, AI Networking II, AI Cache Boost.
Technical Specifications
• Socket: AMD AM5
• Chipset: AMD X870E
• CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series
• Memory:
4 × DDR5 DIMM, up to 256GB
Speeds up to 8000+ MT/s (OC)
Supports AMD EXPO™ & AEMP profiles
• Power Delivery:
16+2+1 power stages (80A)
Enlarged VRM heatsinks for cooling
• Storage:
4 × M.2 slots (PCIe 5.0 x4 & PCIe 4.0 support)
4 × SATA 6Gb/s ports
• Expansion Slots:
1 × PCIe 5.0 x16 SafeSlot
1 × PCIe 4.0 x16 (max x4)
1 × PCIe 3.0 x1

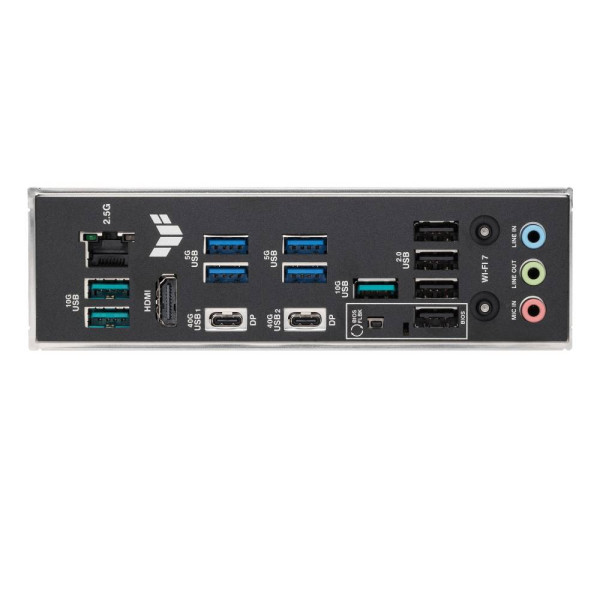

• Rear I/O Ports:
2 × USB4® (40Gbps, Type-C)
3 × USB 10Gbps (Type-A)
4 × USB 5Gbps (Type-A)
4 × USB 2.0
HDMI 2.1 (4K@60Hz)
Realtek 2.5Gb Ethernet port
WiFi 7 antenna connectors
3 × Audio jacks
BIOS FlashBack™ button
• Front I/O Headers:
1 × USB-C 20Gbps with PD fast charge (30W)
1 × USB 3.2 Gen1 header (2 ports)
2 × USB 2.0 headers (4 ports)
• Networking:
WiFi 7 (802.11be, 2.4/5/6GHz bands)
Bluetooth v5.4
Realtek 2.5GbE LAN
