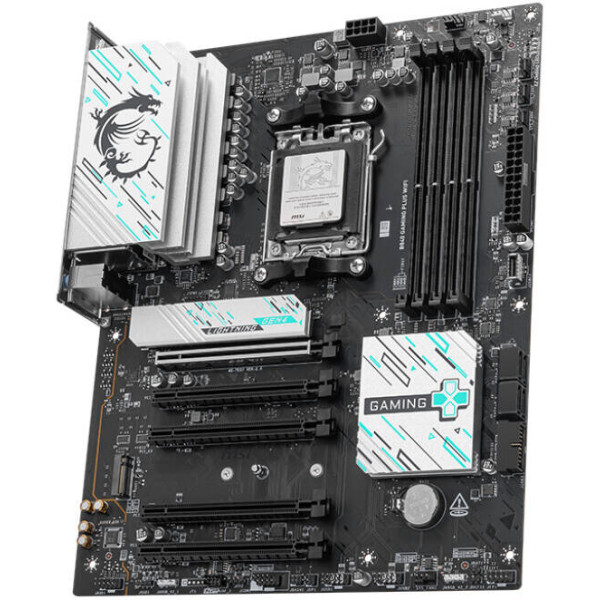

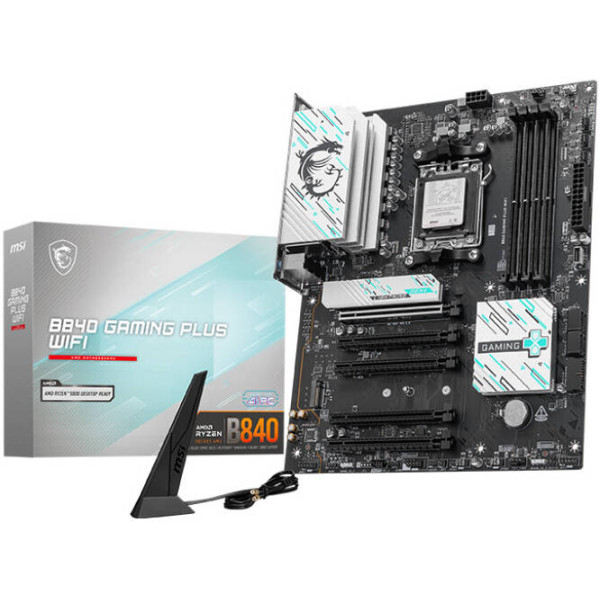

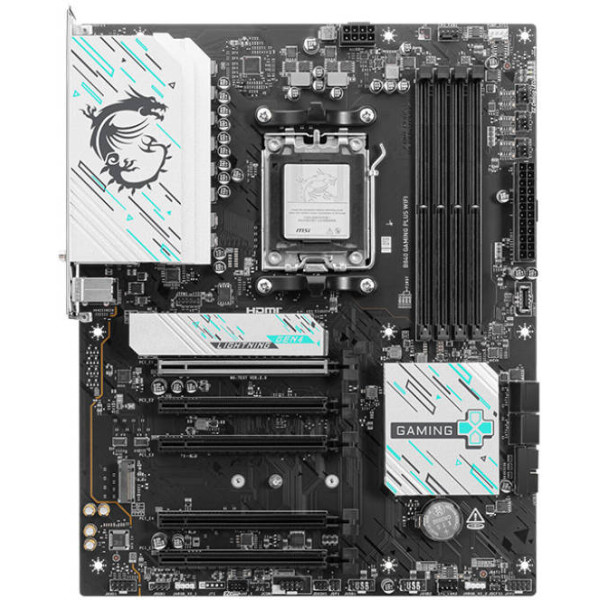

MSI B840 Gaming Plus WiFi 7 - DDR5- AM5 Motherboard
Chipset : AMD B840
CPU : Supports AMD Ryzen™ 900080007000 Series Desktop Processors, Socket AM5
Memory : 4x DDR5 UDIMM, Max Capacity 256GB, DDR5 8000-5600 (OC), 5600-4800 (JEDEC) MTs, Dual-Channel, Non-ECC, AMD EXPO™, Memory Overclocking
Onboard Graphics : 1x HDMI™ 2.1, Max Resolution 4K 60Hz (processors with integrated graphics only)
Slots : 5x PCI-E x16 (varies by processor), PCIe 4.03.0 support
Audio : Realtek® ALC897, 7.1-Channel High Definition Audio
Storage : 2x M.2 (PCIe 4.03.0 support varies by processor), 4x SATA 6G, RAID 0 and 1 for M.2 NVMe storage devices
USB Ports : Rear 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C. Front 4x USB 2.0, 2x USB 5Gbps Type-A, 1x Type-C
LAN : Realtek® 8125BG 2.5G LAN
Internal IO : Power Connectors, Fan Headers, RGB LED, TPM pin, USB ports, Front Panel Connectors, Debug LEDs
Wireless LAN & Bluetooth : Wi-Fi 7 (up to 5.8Gbps, supports 6GHz), Bluetooth® 5.4 (Windows 11 version 24H2 required for full features)
LED Features : 4x EZ Debug LED

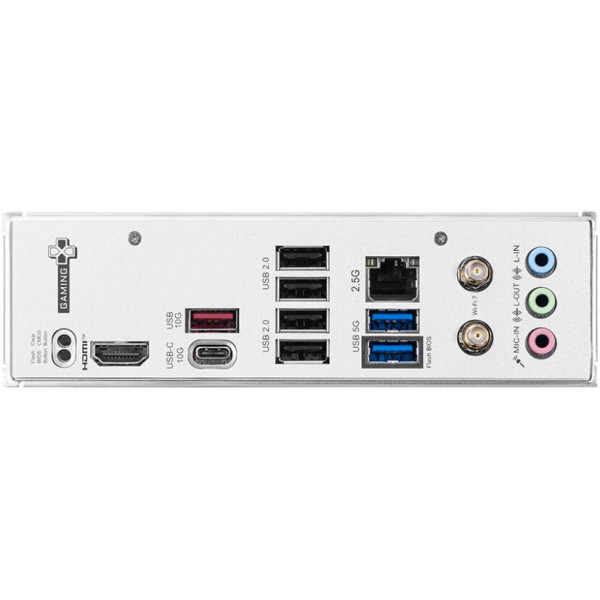

Back Panel Ports : Clear CMOS, USB (2.0, 5Gbps, 10Gbps), HDMI™ 2.1, 2.5G LAN, Wi-FiBluetooth, Flash BIOS Button, Audio Connectors
Operating System : Support for Windows® 11 64-bit
Box Content : PCB Info ATX, 243.84mm x 304.8mm
