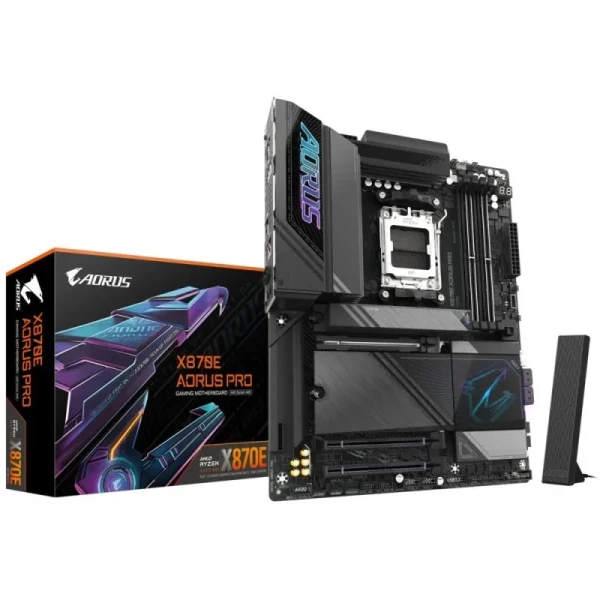

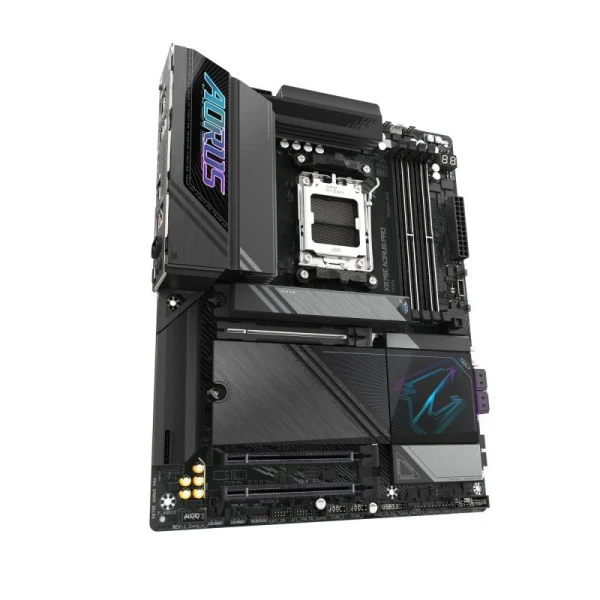

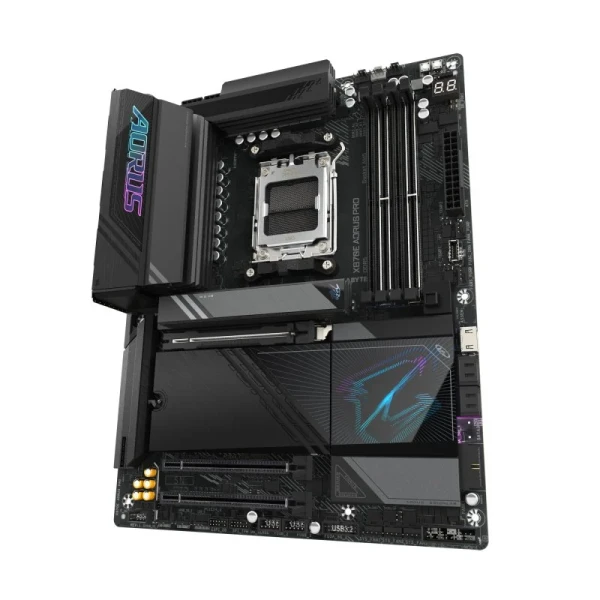

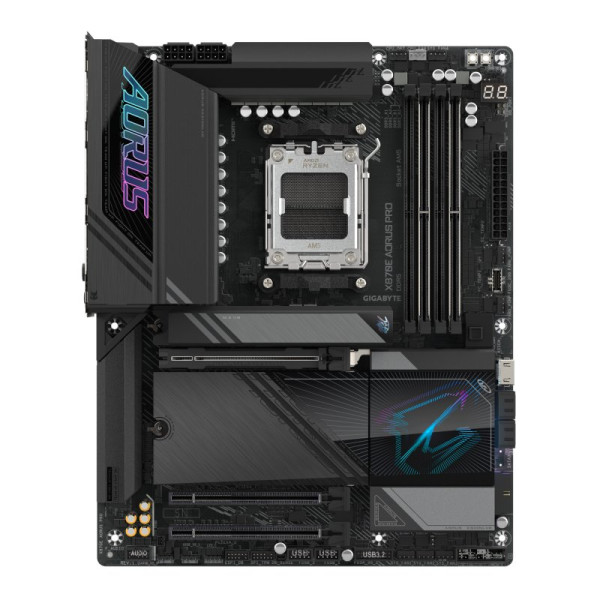

Motherboard GIGABYTE X870E AORUS PRO AM5 Socket, DDR5 Support, Wi-Fi 7 Bluetooth 5.3, 16+2+2 VRM Design

The GIGABYTE X870E AORUS PRO is a high-end motherboard featuring the AMD X870E chipset, designed for AMD Ryzen™ 7000, 8000, and 9000 series processors. It delivers exceptional performance with a 16+2+2 digital VRM design, DDR5 memory support up to 8000MHz, and advanced connectivity including Wi-Fi 7 and Bluetooth 5.3, making it perfect for gaming and high-performance builds.

Key Features

• AM5 Socket Support: Compatible with AMD Ryzen™ 7000, 8000, and 9000 series processors.

• 16+2+2 Digital VRM Design: Provides stable and efficient power delivery to the CPU.

• DDR5 Memory Support: Supports up to 4 DIMMs, speeds up to 8000MHz, with AMD EXPO™ support.

• Advanced Connectivity: Features Wi-Fi 7 and Bluetooth 5.3 with high-gain antennas.

• EZ-Latch Design: Simplifies installation of expansion cards and M.2 drives without tools.

• High-Speed Storage: Equipped with 4 M.2 slots, including 3 PCIe 5.0 x4 slots.

• Dual USB4 Type-C Ports: Offers up to 40Gbps data transfer speeds.

• High-Speed Networking: 2.5GbE LAN for ultra-fast wired connections.

• High-Quality Audio: Realtek ALC1220 codec with premium audio capacitors.

Technical Specifications

• Model: GIGABYTE X870E AORUS PRO (9MX87EPRO-00-G10)

• Chipset: AMD X870E

• Socket: AM5

• CPU Support: AMD Ryzen™ 7000/8000/9000 Series

• Memory:

  • 4 × DIMM, DDR5 up to 256GB

  • Speeds up to 8000MHz

  • AMD EXPO™ support

• Storage:

  • 4 × M.2 (3 × PCIe 5.0 x4, 1 × PCIe 4.0 x4)

  • 4 × SATA III

• Expansion Slots:

  • 1 × PCIe 5.0 x16

  • 1 × PCIe 4.0 x16 (x4 mode)

  • 1 × PCIe 3.0 x16 (x4 mode)

• Networking:

  • 2.5GbE LAN

  • Wi-Fi 7 (802.11be)

  • Bluetooth 5.3

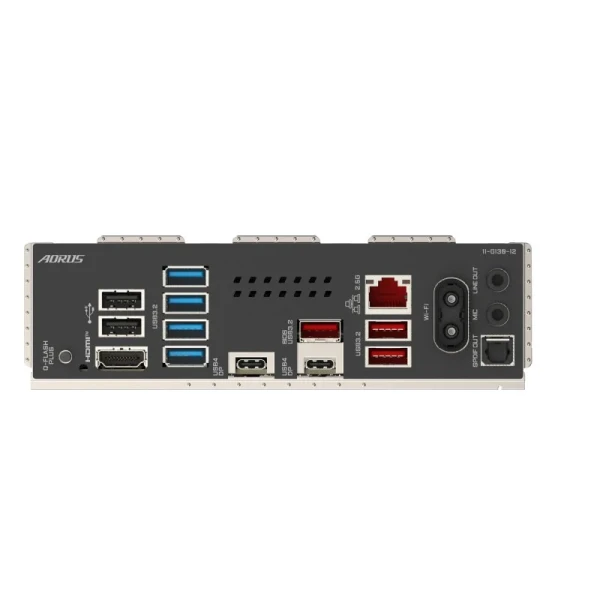

• USB Ports:

  • 2 × USB4 Type-C (up to 40Gbps)

  • 3 × USB 3.2 Gen 2

  • 4 × USB 3.2 Gen 1

  • 2 × USB 2.0

• Audio:

  • Realtek ALC1220 codec

  • Premium audio capacitors

• Cooling:

  • VRM Thermal Armor

  • M.2 Thermal Guard L

• Design:

  • 6-layer PCB

  • PCIe Armor

  • EZ-Latch Plus and EZ-Latch Click

• Form Factor: ATX

• Color: Black
