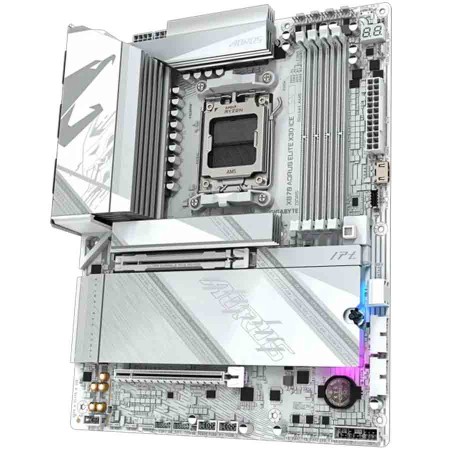

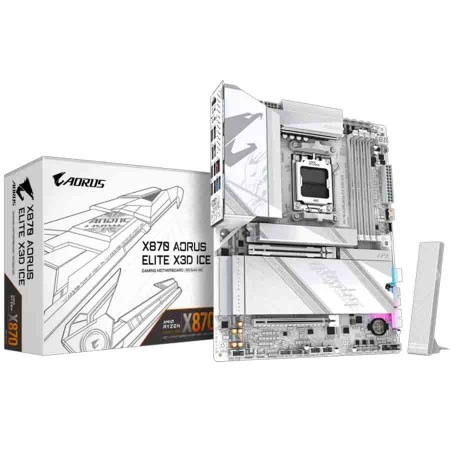

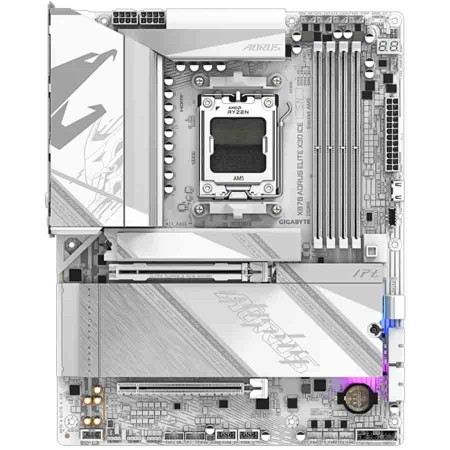

Motherbaord GIGABYTE X870 AORUS ELITE X3D ICE ,DDR5 ,PCIe 5.0 x16 slot ,WiFi 7 ,USB4 Type-C ,Socket AM5

The GIGABYTE X870 AORUS ELITE X3D ICE is a high-end ATX motherboard designed for enthusiasts, gamers, and creators who demand maximum performance and modern connectivity. Built on the AMD AM5 platform, it supports Ryzen 9000, 8000, and 7000 series processors and features cutting-edge technologies such as DDR5 memory, PCIe 5.0, USB4, WiFi 7, and 5GbE LAN.

Key Features:

• Supports AMD Ryzen™ 9000 / 8000 / 7000 CPUs
• AMD X870 chipset for high-end performance
• DDR5 memory up to 8800 MT/s (OC)
• Up to 256GB memory capacity (4 DIMMs)
• PCIe 5.0 x16 slot for next-gen GPUs
• Ultra-fast storage support:
  • 4× M.2 slots (PCIe 5.0 / 4.0)
  • 2× SATA 6Gb/s
• Advanced connectivity:
  • WiFi 7 (6GHz band)
  • Bluetooth 5.4
  • 5GbE LAN
• Display outputs:
  • 2× USB4 Type-C (up to 4K@240Hz via DP)
  • HDMI 2.1 (4K@60Hz)
  • Front HDMI (1080p@30Hz)
• Realtek ALC1220 high-end audio (7.1 channel)
• Advanced VRM and M.2 thermal design
• RGB & ARGB Gen2 support
• Onboard power/reset/Clear CMOS buttons
• RAID support for NVMe and SATA

Technical Specifications:

CPU Support

• AMD Socket AM5
• Ryzen 9000 / 8000 / 7000 series support

Chipset

• AMD X870

Memory

• 4× DDR5 DIMM slots
• Up to 256GB
• 4800–8800 MT/s (OC)
• Dual Channel
• AMD EXPO / XMP support

Graphics Output

• 2× USB4 Type-C (DP 4K@240Hz)
• HDMI 2.1 (4K@60Hz)
• Front HDMI (1080p@30Hz)

Audio

• Realtek ALC1220 codec
• 7.1 channel HD audio
• S/PDIF support

Networking

• Realtek 5GbE LAN
• Qualcomm WiFi 7 (QCNCM865)
• Bluetooth 5.4

Expansion Slots

• 1× PCIe 5.0 x16
• 1× PCIe 4.0 x4

Storage

• 4× M.2 slots
• 2× SATA 6Gb/s ports
• RAID 0 / 1 / 5 / 10 support

USB Ports

• USB4 Type-C ×2
• USB 3.2 Gen2 / Gen2x2
• USB 3.2 Gen1
• USB 2.0

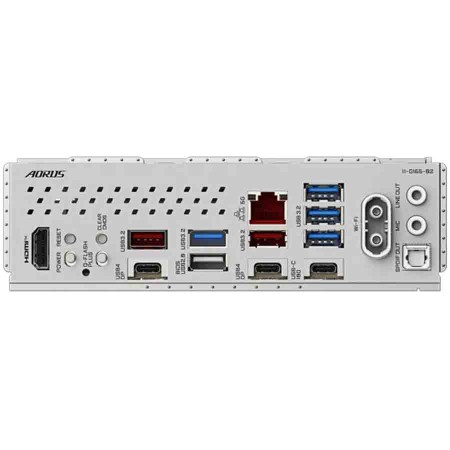

Rear I/O

• HDMI
• USB4 Type-C ×2
• USB 3.2 Gen2 Type-A
• USB 3.2 Gen1
• USB 2.0
• RJ-45
• S/PDIF
• Audio jacks
• WiFi antennas

Additional Features

• Q-Flash Plus
• Smart Backup
• RGB / ARGB Gen2 headers
• Fan & water cooling support
• Temperature & noise detection
• Windows 11 64-bit support
• ATX form factor (30.5 × 24.4 cm)
