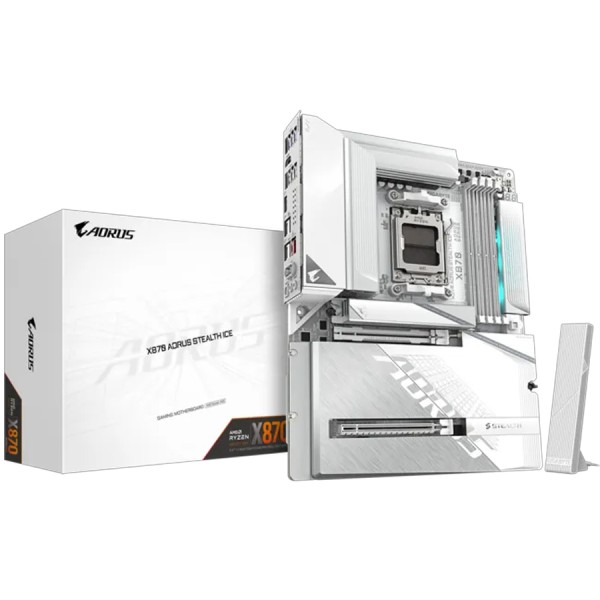

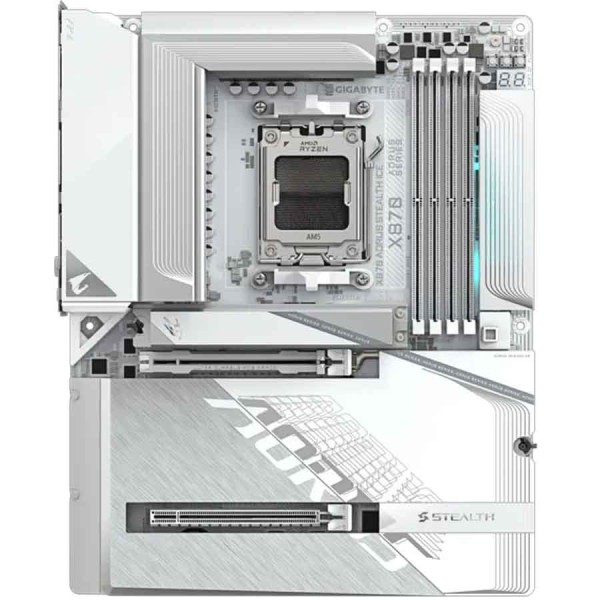

Motherbaord GIGABYTE X870 AORUS STEALTH ICE ,DDR5 memory ,PCIe 5.0 x16 ,WiFi 7 ,USB4 Type-C .socket AM5 - White

The GIGABYTE X870 AORUS STEALTH ICE is a premium ATX motherboard built for the AMD AM5 platform, delivering extreme performance with DDR5, PCIe 5.0, WiFi 7, and USB4. Its standout feature is the Stealth rear-connector design, enabling a completely clean and cable-free high-end PC build.

Key Features:

• Supports AMD Ryzen 9000 / 8000 / 7000 series processors
• DDR5 memory up to 8200 MT/s (OC), up to 256GB
• Dual-channel memory architecture with EXPO & XMP support
• PCIe 5.0 x16 slot for next-gen GPUs
• High-speed M.2 PCIe 5.0 + PCIe 4.0 storage with RAID support
• Ultra-fast networking: 5GbE LAN + WiFi 7 + Bluetooth 5.4
• USB4 Type-C with DisplayPort up to 4K@240Hz
• Premium Realtek ALC1220 audio (7.1 + S/PDIF)

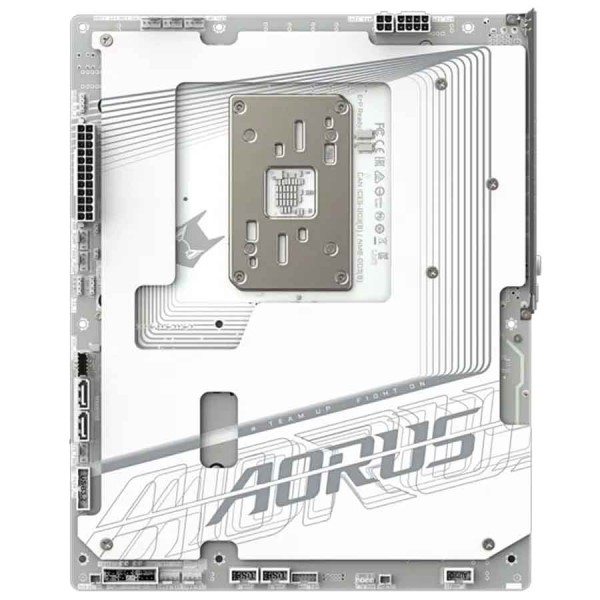

• Stealth design with rear-facing connectors for clean builds
• Advanced cooling and fan/pump monitoring system
• Built-in control buttons (Power / Reset / Q-Flash Plus)

Technical Specifications:

CPU:

• AMD AM5 socket
• Ryzen 9000 / 8000 / 7000 series support
• PCIe behavior depends on CPU generation

Chipset:

• AMD X870

Memory:

• 4× DDR5 DIMM slots
• Up to 256GB capacity
• Dual-channel architecture
• DDR5 support from 4800 up to 8200 MT/s (OC)
• AMD EXPO & Intel XMP support
• Non-ECC Unbuffered DIMM support

Onboard Graphics:

• 2× USB4 Type-C ports
  • DisplayPort + HDR support
  • Up to 4K@240Hz
• 1× HDMI 2.1 port
  • Up to 4K@60Hz
  • HDR + HDCP 2.3

Audio:

• Realtek ALC1220 codec
• 2/4/5.1/7.1-channel audio
• S/PDIF Out support
• DSD audio support

Networking:

• Realtek 5GbE LAN (5 Gbps)
• Qualcomm WiFi 7 (QCNCM865)
  • 2.4 / 5 / 6 GHz bands
  • 320MHz bandwidth support
• Bluetooth 5.4

Expansion Slots:

• PCIe 5.0 x16 (GPU slot, CPU connected)
• PCIe 4.0 x4 (chipset slot)
• GPU or NVMe usage limitation on x16 slot

Storage:

• 4× M.2 slots:
  • PCIe 5.0 / 4.0 (CPU dependent)
  • PCIe 4.0 (chipset)
• 2× SATA 6Gb/s ports
• RAID 0 / 1 / 5 / 10 support (NVMe)
• RAID 5 supported only on Ryzen 9000 series

USB Connectivity:

• USB4 Type-C (rear I/O)
• USB 3.2 Gen 2 Type-C (chipset)
• USB 3.2 Gen 2x2 internal header
• USB 3.2 Gen 2 Type-A (red ports)
• USB 3.2 Gen 1 ports (multiple)
• USB 2.0 ports (internal + rear)

 Internal I/O:

• 24-pin + 8-pin + 4-pin power connectors
• Multiple fan & pump headers
• RGB / ARGB Gen2 headers
• TPM header
• Noise detection header
• Q-Flash Plus button
• Power & Reset buttons
• Clear CMOS jumper
• Temperature sensor headers

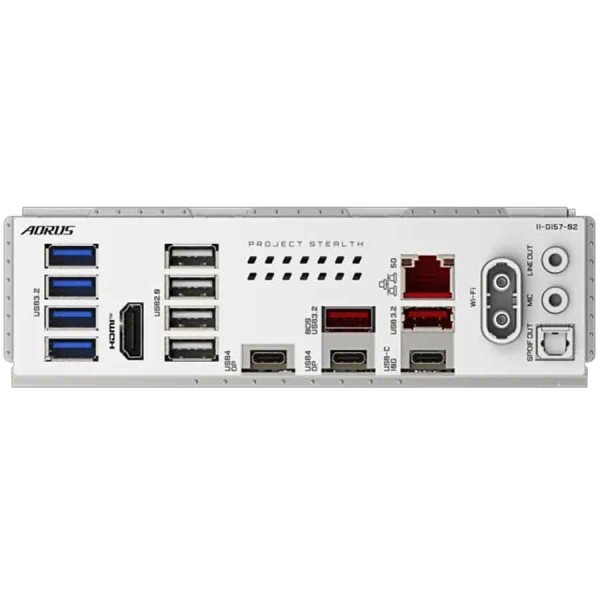

Rear Panel:

• HDMI
• 2× USB4 Type-C
• 2× USB 3.2 Gen2
• 4× USB 3.2 Gen1
• 4× USB 2.0
• RJ-45 (5GbE)
• S/PDIF Out + audio jacks
• WiFi antenna connectors (2T2R)

Monitoring & Cooling:

• Voltage, temperature, and fan monitoring
• Water cooling flow detection
• Fan failure warning system
• Full fan/pump control

General:

• ATX form factor (30.5 × 24.4 cm)
• AMI UEFI BIOS (512 Mbit)
• Windows 11 64-bit only
• GIGABYTE Control Center
• Q-Flash / Q-Flash Plus
• Smart Backup
