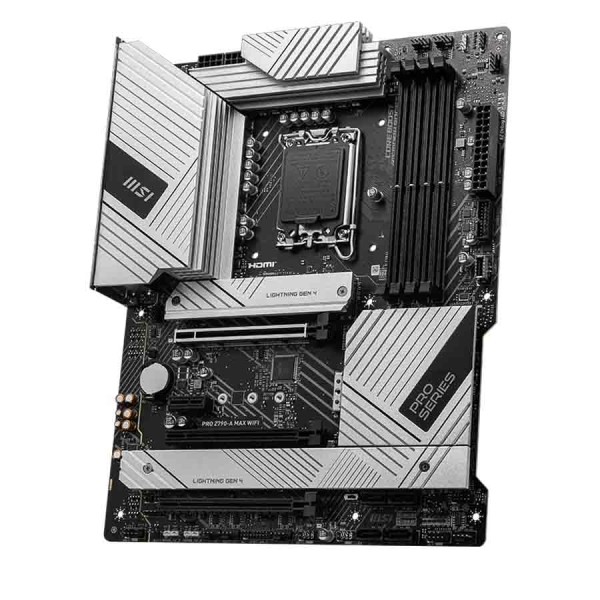

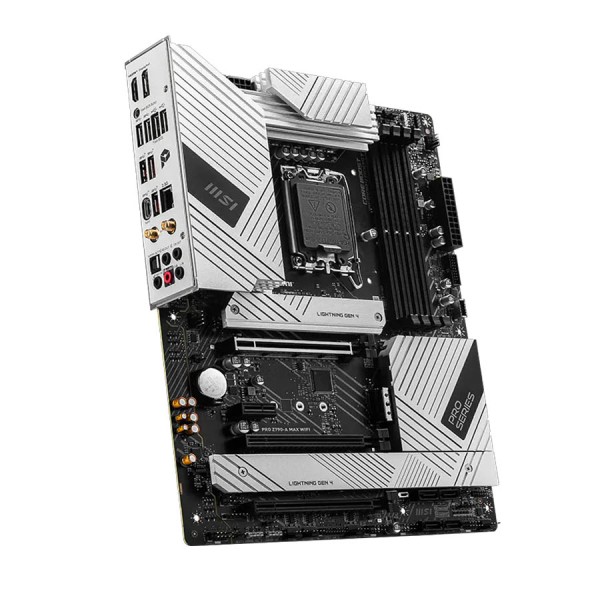

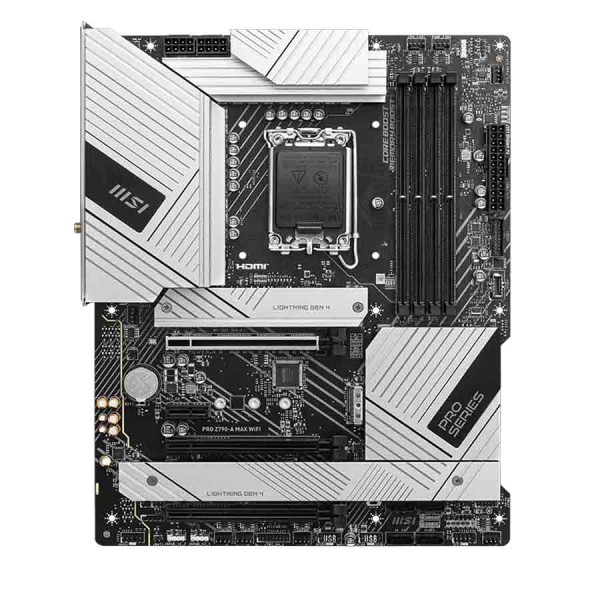

Upgrade your desktop build with the MSI PRO Z790-A MAX WiFi DDR5, a high-performance motherboard engineered for professional users and advanced workstations. Powered by the Intel Z790 chipset, this board delivers outstanding stability, next-generation connectivity, and extensive expansion options, making it ideal for content creation, multitasking, and high-end gaming systems.
Key Features:
• Supports Intel Core processors 12th, 13th, and 14th Gen
• Intel Z790 high-performance chipset
• DDR5 memory support with Intel XMP for extreme speeds
• PCIe Gen 5.0 support for next-generation graphics cards
• Ultra-fast Wi-Fi 7 with Bluetooth 5.4
• 2.5Gbps LAN for reliable high-speed networking
• Premium Realtek ALC4080 7.1-channel audio
• Multiple USB ports with speeds up to 20Gbps
• Advanced NVMe M.2 storage support
• ATX form factor designed for professional systems
Technical Specifications:
• Manufacturer: MSI
• Model: PRO Z790-A MAX WiFi
• Part Number: 911-7E07-033
• Chipset: Intel Z790
• CPU Socket: LGA 1700
• Supported CPUs: Intel Core 12th / 13th / 14th Gen
• Form Factor: ATX
Memory
• Memory Type: DDR5
• Memory Slots: 4
• Max Capacity: Up to 192GB
• Supports high-speed overclocking (OC)
• Intel XMP support
Expansion Slots
• 3x PCI-E x16 slots
• 1x PCI-E x1 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (from CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (from chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (from chipset)
• PCI_E4 Gen PCIe 3.0 supports up to x1 (from chipset)
Storage
• 4x M.2 PCIe NVMe slots
• 6x SATA 6Gb/s ports
Audio
• Realtek® ALC4080 Codec
• 7.1-Channel USB High-Performance Audio
• Supports S/PDIF output

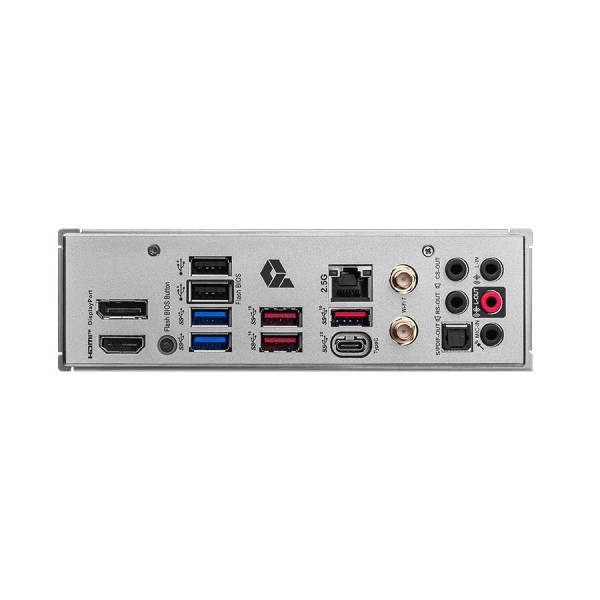

USB Ports
• 2x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 5Gbps Type-A (Rear)
• 2x USB 5Gbps Type-A (Front)
• 3x USB 10Gbps Type-A (Rear)
• 1x USB 10Gbps Type-C (Front)
• 1x USB 20Gbps Type-C (Rear)
Networking
• 2.5 Gigabit Ethernet
• Wi-Fi 7
• Bluetooth 5.4
Internal I/O
• 1x ATX Power Connector
• 2x CPU Power Connectors
• 1x CPU Fan Header
• 1x Pump Fan Header
• 6x System Fan Headers
• 2x Front Panel Headers (JFP)
• 1x Chassis Intrusion Header (JCI)
• 1x Front Audio Header (JAUD)
• 1x Tuning Controller Connector (JDASH)
• 3x Addressable V2 RGB LED Connectors (JARGB_V2)
• 1x RGB LED Connector (JRGB)
• 1x TPM Header (Supports TPM 2.0)
• 1x USB4 Card Connector (JTBT_U4_1, supports RTD3)
• 4x USB 2.0 Headers
• 2x USB 5Gbps Type-A Headers
• 1x USB 10Gbps Type-C Header
Ideal For
• Professional workstations
• Content creation and editing
• Software development and multitasking
• High-end gaming builds
