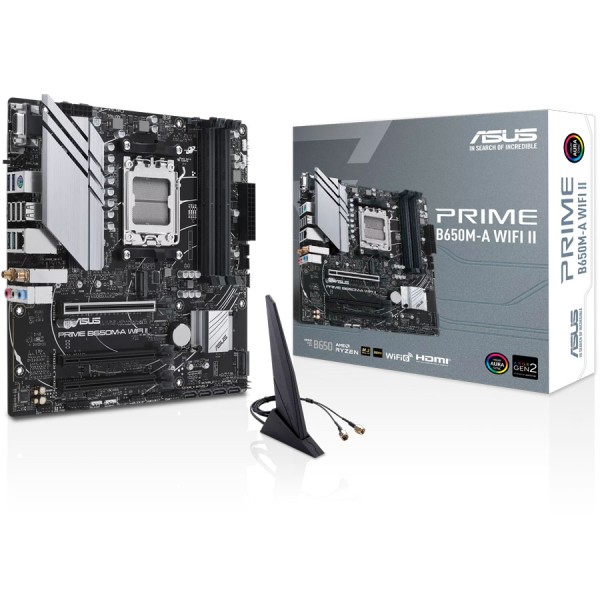

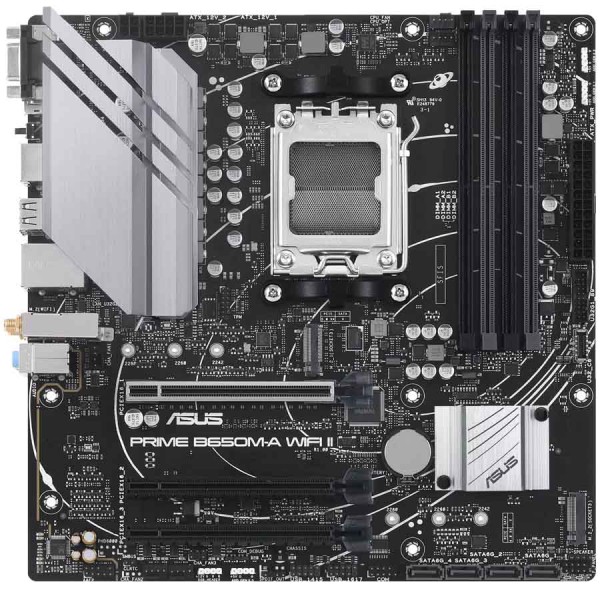

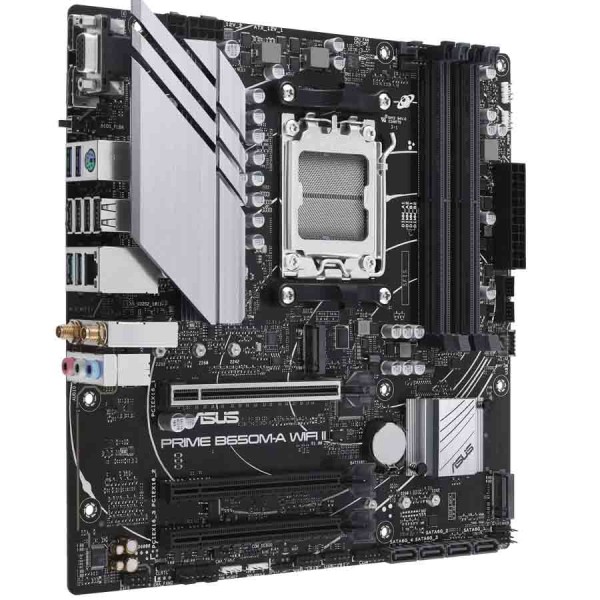

MOTHERBAORD ASUS PRIME B650M‑A WiFi II ,DDR5 memory support ,OptiMem II technology ,PCIe 5.0/4.0 slots Socket AM5

The ASUS PRIME B650M‑A WiFi II motherboard is engineered for modern AMD Ryzen processors on the AM5 socket, supporting high-speed DDR5 memory and advanced connectivity features like Wi‑Fi 6, Bluetooth 5.2, and 2.5Gb LAN. This board delivers excellent performance for users seeking efficiency, multiple expansion options, enhanced cooling, and a compact Micro‑ATX design.

Key Features:

• Supports AMD Ryzen 9000, 7000 & 8000 Series Desktop Processors on AM5 socket.
• DDR5 memory support up to 192 GB, speeds up to 7600 MHz (OC), Dual Channel, ECC / Non-ECC, and EXPO™ overclocking.
• OptiMem II technology for stable memory and high overclocking performance.
• Dual-band Wi‑Fi 6 (2.4/5 GHz) and Bluetooth 5.2 for wireless connectivity.
• High-speed 2.5 Gb LAN.
• PCIe 5.0/4.0 slots and M.2 NVMe support for ultra-fast storage.
• RAID support via PCIe and SATA using AMD RAIDXpert2.
• USB 3.2 Gen 2 and USB-C ports (front & rear).
• Enhanced cooling with VRM heatsinks and Fan Xpert 2+.
• Aura Sync RGB for customizable lighting.
• BIOS FlashBack™ allows BIOS updates without CPU installed.



Technical Specifications:

• Socket: AM5
• Chipset: AMD B650
• Form Factor: Micro‑ATX
• Memory:
  • 4 × DIMM, up to 192 GB DDR5
  • Supported speeds: 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800
  • Dual Channel, ECC & Non-ECC, Un-buffered
  • AMD EXPO™ support for overclocking
  • OptiMem II for improved signal integrity
• PCIe Slots:
  • 1 × PCIe 5.0 x16 (Ryzen 9000/7000, supports x16)
  • 1 × PCIe 4.0 x16 (Ryzen 8000, supports x8/x4)
  • 1 × PCIe 4.0 x16 (B650, supports x1)
• Storage:
  • 2 × M.2 slots (M.2_1 PCIe 5.0/4.0 depending on CPU, M.2_2 PCIe 4.0)
  • 4 × SATA 6 Gb/s
  • RAID 0/1/10 support via PCIe and SATA (AMD RAIDXpert2)

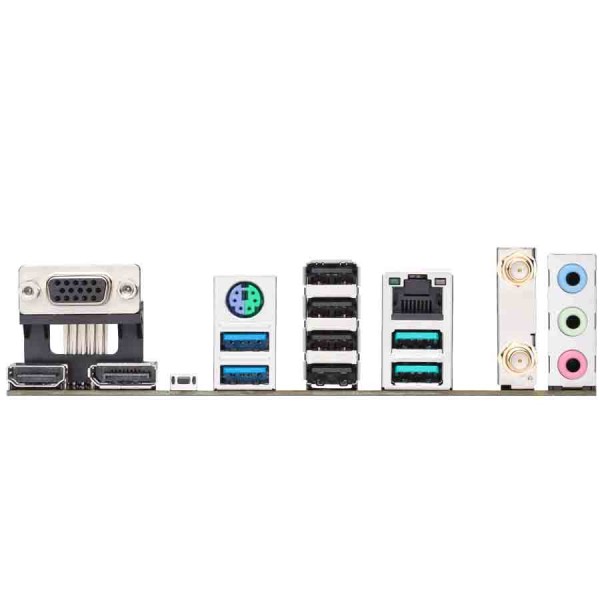

• USB Ports: 2 × USB 3.2 Gen 2 Type-A rear, 2 × USB 3.2 Gen 1 Type-A, 4 × USB 2.0, 1 × front USB-C
• Networking: 2.5 Gb LAN + Wi‑Fi 6 + Bluetooth v5.2
• Audio: Realtek 7.1 HD Audio
• Additional Features: Aura Sync RGB, Fan Xpert 2+, BIOS FlashBack™
