Out Of Stock

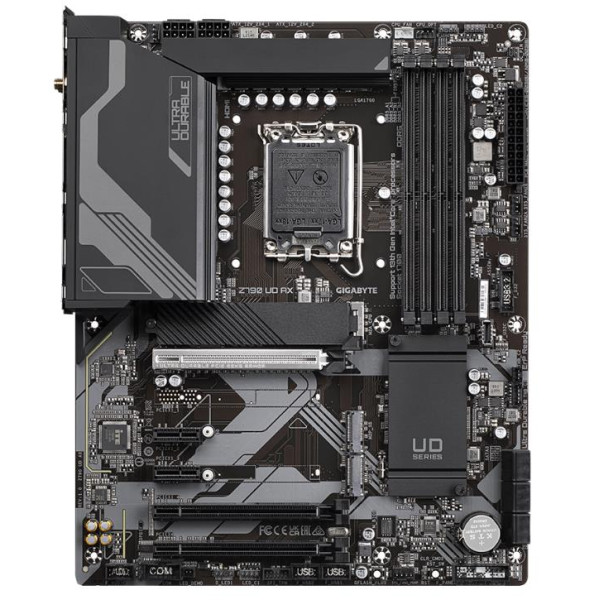

GIGABYTE Motherboard Z790 UD AX DDR5 PCIe5 - LGA 1700
1,049 1,149Save: 100
100Ex Tax: 912
912
Z790 UD AX DDR5
Form Factor: ATX 305mm X 244mm
Socket : LGA1700 for Intel® 14th & 13th & 12th Gen
Chipset : Intel® Z790 Express Chipset
16+1+1 Phases Digital VRM
Memory slots : 4 x DDR5 DIMM 7600(OC)/7400(OC)/..../5200(OC)/ ... 4800 / 4000 memory modules
Max Memory Support: Up To 192GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Audio: Realtek® Audio CODEC
LAN: Realtek® 2.5GbE LAN chip
Onboard Graphics: 1x HDMI port, 2x DisplayPort
Back Panel Connectors: 4 x USB 2.0, 1 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 2x SMA antenna connectors (2T2R), 1 x USB Type-C, 1 x RJ-45, 3 x audio jacks
SATA Ports : 6x SATA 6Gb/s
M.2 Slot : 3 x M.2 NVMe Gen4
Wireless + Bluetooth: WiFi 6E AX211 + Bluetooth V5.3
