Gaming Motherboard MSI MAG X870E TOMAHAWK WIFI ATX DDR5 Wi-Fi 7 5G LAN

The MSI MAG X870E TOMAHAWK WIFI motherboard is a high-end solution designed for the AMD AM5 platform, offering advanced performance and modern features tailored for gamers and creators alike. Supporting Ryzen 7000/8000/9000 series processors, DDR5 high-speed memory, and cutting-edge connectivity technologies like Wi-Fi 7 and 5G LAN, this board ensures fast and reliable connections. It also features an integrated cooling system and robust power delivery for stable overclocking and superior system stability.

Key Features:

• Supports AMD Ryzen processors with AM5 socket

• DDR5 memory support up to 128GB at speeds up to 8400+ MT/s (OC)

• PCIe 5.0 x16, PCIe 4.0 x4, and PCIe 3.0 x1 expansion slots

• Four M.2 slots with tool-free Shield Frozr II heatsinks

• Six SATA III 6Gb/s ports

• 5 Gigabit LAN (5G LAN) network support

• Wi-Fi 7 (802.11be) with speeds up to 5.8 Gbps

• Bluetooth 5.4 (available with Windows 11 24H2 update)

• Multiple USB ports including 40Gbps Type-C and 10Gbps Type-A/C

• Advanced cooling design with extended heatsinks

• EZ PCIe Release for easy graphics card installation/removal

• Core Boost and Memory Boost technologies for enhanced performance

• Audio Boost 5 for high-quality sound

• Supports Windows 11 64-bit OS

• ATX form factor, dimensions 243.84 × 304.8 mm

Technical Specifications:

• Model: MSI MAG X870E TOMAHAWK WIFI

• CPU Socket: AMD AM5

• Chipset: AMD X870E

• Memory: 4 × DDR5 DIMM slots, up to 128GB, up to 8400+ MT/s (OC)

• Expansion Slots:

  • 1 × PCIe 5.0 x16 (supports x16/x8/x0)

  • 1 × PCIe 4.0 x4

  • 1 × PCIe 3.0 x1

• Storage:

  • 4 × M.2 slots with Shield Frozr II heatsinks (tool-free)

  • 6 × SATA III 6Gb/s ports

• Networking:

  • 5 Gigabit LAN (5G LAN)

  • Wi-Fi 7 (802.11be) up to 5.8 Gbps

  • Bluetooth 5.4 (Windows 11 24H2 update required)

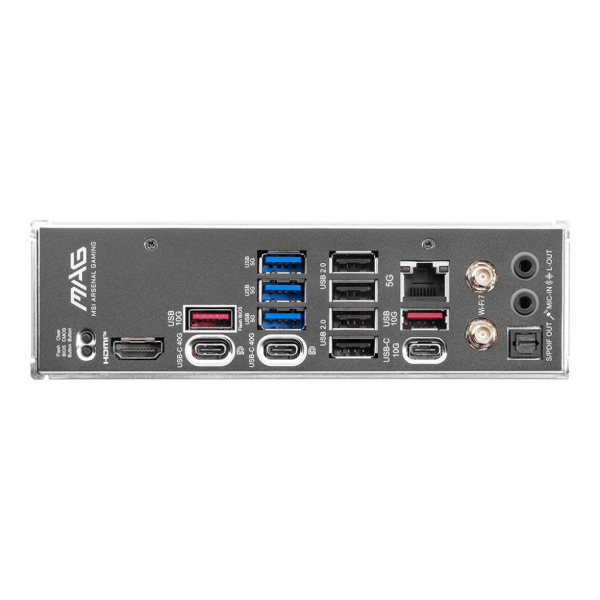

• Rear I/O Ports:

  • 1 × USB 40Gbps Type-C

  • 2 × USB 10Gbps Type-C

  • 2 × USB 10Gbps Type-A

  • 1 × USB 5Gbps Type-A

  • 1 × USB 2.0

  • 1 × HDMI

  • 1 × 5G LAN port

  • High-quality audio jacks

  • Flash BIOS and Clear CMOS buttons

• Cooling:

  • Extended heatsinks

  • Shield Frozr II M.2 heatsinks (tool-free)

• Additional Features:

  • EZ PCIe Release for easy GPU installation/removal

  • Core Boost and Memory Boost technologies

  • Audio Boost 5 for enhanced sound quality

• Supported OS: Windows 11 64-bit

• Form Factor: ATX (243.84 × 304.8 mm
