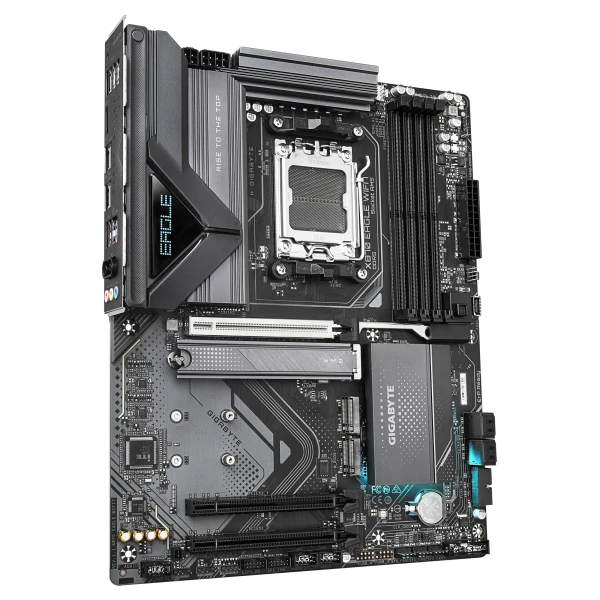

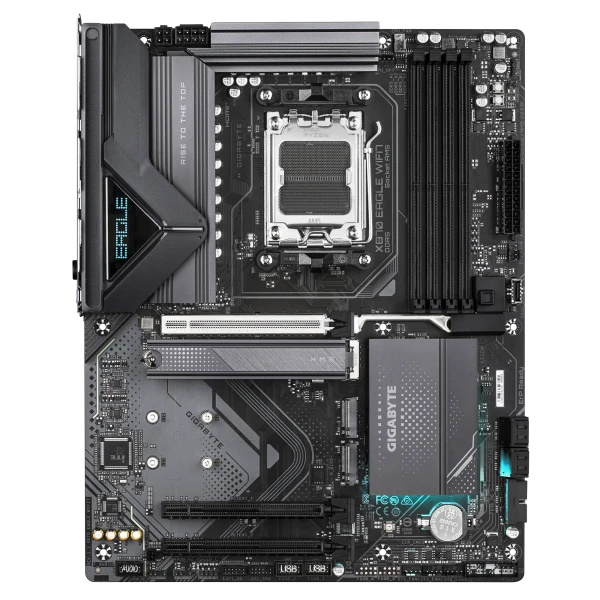

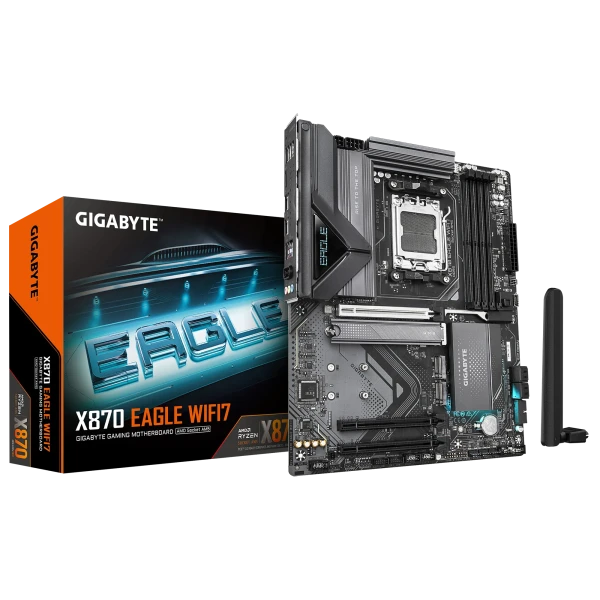

Gaming Motherboard GIGABYTE X870 EAGLE WIFI7 - DDR5 - Wi-Fi 7 - AM5

The GIGABYTE X870 EAGLE WIFI7 GAMING is a cutting-edge ATX motherboard built for the latest AMD Ryzen™ 8000 and 7000 Series processors using the AM5 socket. Packed with next-gen features including DDR5 memory support, PCIe 5.0, ultra-fast Wi-Fi 7, and 2.5GbE LAN, this motherboard delivers elite performance, robust connectivity, and high-end thermal solutions — making it an ideal platform for gamers and creators demanding top-tier performance.

Key Features:

• Supports AMD Ryzen™ 8000 and 7000 Series processors
• Dual channel DDR5 memory support up to 8000+ MHz (OC)
• PCIe 5.0 x16 slot with metal shielding
• Wi-Fi 7 (802.11be) and Bluetooth 5.4
• 2.5GbE LAN for high-speed wired networking
• Dual PCIe 5.0/4.0 M.2 slots with thermal protection
• USB 3.2 Gen 2x2 Type-C and multiple USB 3.2 Gen 2 ports
• Advanced VRM heatsinks for stable power delivery
• RGB FUSION with ARGB and RGB headers
• Q-Flash Plus for BIOS update without CPU or RAM

Technical Specifications:

• Chipset: AMD X870
• CPU Socket: AM5
• Supported Processors: AMD Ryzen™ 8000 / 7000 Series (with Radeon Graphics)
• Form Factor: ATX

• Memory Support:
– 4 x DDR5 DIMM slots
– Dual channel memory architecture
– Maximum capacity: up to 192GB
– ECC/Non-ECC unbuffered DIMMs supported
– Supports AMD EXPO & Intel XMP
– Memory speed up to 8000+ MHz (OC)

• Expansion Slots:
– 1 x PCIe 5.0 x16 slot (reinforced)
– 1 x PCIe 4.0 x1 slot

• Storage:
– 2 x M.2 slots (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4)
– 4 x SATA 6Gb/s ports

• Graphics Outputs:
– 1 x HDMI 2.1
– 1 x DisplayPort 1.4

• Networking:
– Intel® 2.5GbE LAN
– Intel® Wi-Fi 7 (802.11be)
– Bluetooth 5.4

• Audio:
– 8-Channel HD Audio
– Realtek® Audio Codec

• USB Ports:
– Rear I/O:
• 1 x USB 3.2 Gen 2x2 Type-C
• 4 x USB 3.2 Gen 2 Type-A
• 4 x USB 2.0
– Internal:
• Headers for additional USB 3.2 Gen 1/2 and USB 2.0 ports

• Internal I/O:
– 2 x ARGB headers
– 2 x RGB headers
– 4 x Fan headers
– Front panel audio, TPM header, Q-Flash Plus button

• BIOS:
– 256Mb UEFI AMI BIOS
– Q-Flash Plus support

• Operating System:
– Windows 11 64-bit
– Windows 10 64-bit

• Included Accessories:
– Wi-Fi antenna
– SATA cables
– User manual

Designed for extreme performance, connectivity, and reliability, the X870 EAGLE WIFI7 GAMING motherboard is perfect for next-gen gaming and content creation setups
