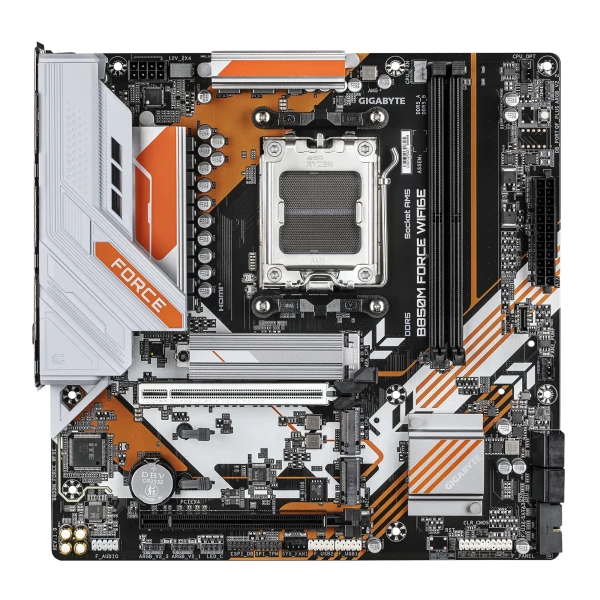

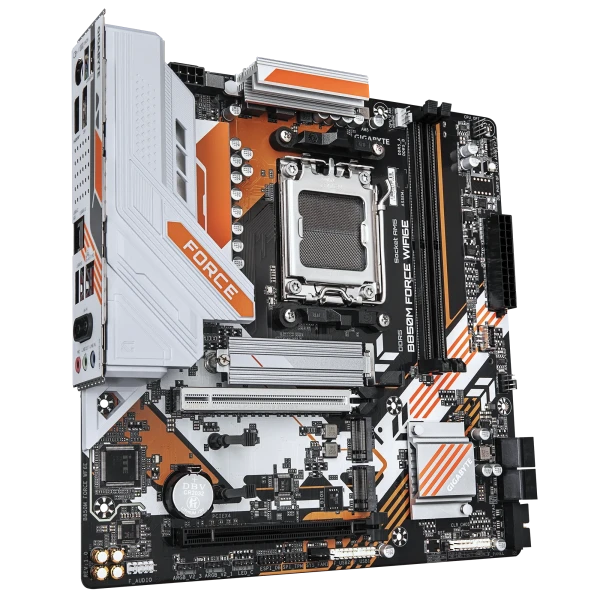

Gaming Motherboard GIGABYTE B850M FORCE WiFi6E - DDR5 Support & AM5 Socket – High Performance in Micro-ATX Form Factor

The GIGABYTE B850M FORCE WIFI6E motherboard is an ideal choice for building high-performance systems, supporting AMD Ryzen™ 7000 series processors and beyond. It features an 8+2+2 digital VRM design for stable power delivery under heavy workloads. The motherboard also supports DDR5 memory speeds up to 9600MHz and offers advanced storage options with three M.2 slots, including a PCIe 5.0 port. With Wi-Fi 6E support and a PCIe 5.0 x16 interface, this motherboard is perfect for gamers and professional users seeking top-tier performance.

Key Features

• Supports AMD Ryzen™ 7000 series processors and beyond via AM5 socket

• 8+2+2 digital VRM design with 24+8 power connectors for stable power delivery

• DDR5 memory support up to 9600MHz

• Three M.2 slots, including one PCIe 5.0 x4 and two PCIe 4.0 x4

• PCIe 5.0 x16 interface for modern graphics cards

• Wi-Fi 6E and Bluetooth 5.2 for advanced wireless connectivity

• Advanced thermal design with full MOSFET cooling

• RGB FUSION 2.0 lighting support with addressable LED headers

• X3D Turbo Mode support to enhance gaming performance via BIOS

Technical Specifications

Chipset:

• AMD B850

CPU Support:

• AMD Ryzen™ 7000 series and later via AM5 socket

Memory:

• 2 × DDR5 DIMM slots, dual channel

• XMP support

• Speeds up to 9600MHz

Storage:

• 3 × M.2 slots (1 × PCIe 5.0 x4, 2 × PCIe 4.0 x4)

• 4 × SATA 6Gb/s ports

Expansion Slots:

• 1 × PCIe 5.0 x16

• 1 × PCIe 4.0 x4

Networking:

• 2.5GbE LAN

• Wi-Fi 6E 802.11ax

• Bluetooth 5.2

Audio:

• 7.1 HD Audio

• Audio Noise Guard technology

• Premium audio capacitors

Cooling:

• Advanced thermal design with full MOSFET cooling

• PWM/DC support for fans

• Fan stop at low temperatures

Lighting:

• RGB FUSION 2.0 support

• Addressable LED headers

Additional Features:

• X3D Turbo Mode to enhance gaming performance

• Q-FLASH Plus

• EZ-Latch

Physical Specifications:

• Micro ATX form factor

• VESA 75 × 75 mm compatible

• Dimensions: 24.4 × 22.5 cm

• Weight: 1.2 kg
