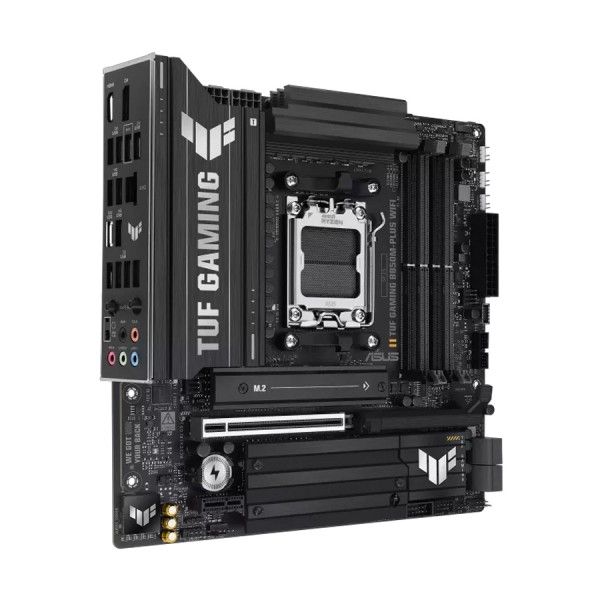

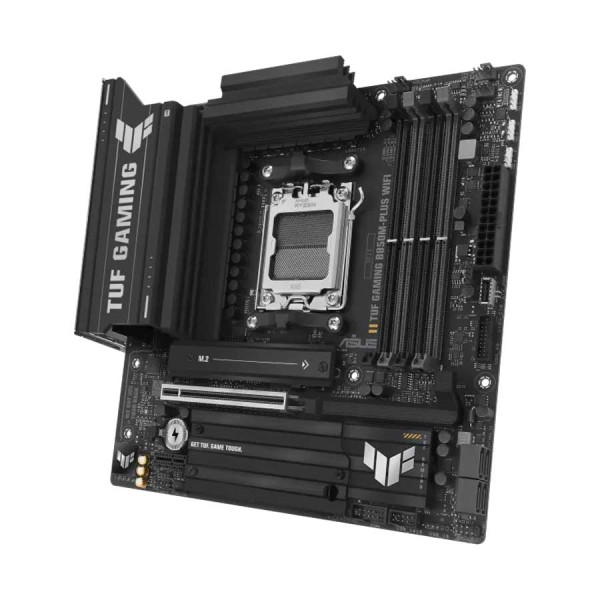

The ASUS TUF GAMING B850M-PLUS WIFI motherboard is built for gamers and PC enthusiasts seeking powerful performance and long-term reliability. Powered by the AMD B850 chipset and AM5 socket, it supports the latest Ryzen processors, DDR5 memory, and cutting-edge connectivity including PCIe 5.0 and Wi-Fi 6E. With its durable TUF design, enhanced cooling, and advanced connectivity options, it delivers stable performance for gaming and professional workloads.

Key Features:

• Supports AMD Ryzen 9000 / 8000 / 7000 Series processors

• DDR5 memory support for high-speed performance

• PCIe 5.0 graphics slot

• Up to 3 × M.2 NVMe SSD slots

• Wi-Fi 6E with Bluetooth 5.3

• Realtek 2.5Gb Ethernet high-speed networking

• Realtek ALC1220P 7.1 surround sound

• Aura Sync RGB lighting support

• High-speed USB 20Gbps Type-C connectivity

• Durable TUF military-grade components

Technical Specifications

CPU & Chipset

• Chipset: AMD B850

• Socket: AM5

• Supported CPUs:

  • AMD Ryzen 9000 Series

  • AMD Ryzen 8000 Series

  • AMD Ryzen 7000 Series

Expansion Slots

• AMD Ryzen 9000 & 7000 Series CPUs

  • 1 × PCIe 5.0 x16 slot (supports x16 mode)

• AMD Ryzen 8000 Series CPUs

  • 1 × PCIe 4.0 x16 slot (supports x8/x4 mode)

• AMD B850 Chipset

  • 1 × PCIe 4.0 x1 slot

Storage

• Total support: 3 × M.2 slots + 4 × SATA 6Gb/s

Ryzen 9000 / 7000 CPUs

• M.2_1 (Key M) Type 2280 – PCIe 5.0 x4

• M.2_2 (Key M) Type 2242/2260/2280 – PCIe 4.0 x4

Ryzen 8000 CPUs

• M.2_1 (Key M) Type 2280 – PCIe 4.0 x4

• M.2_2 (Key M) Type 2242/2260/2280 – PCIe 4.0 x4/x2

B850 Chipset

• M.2_3 (Key M) Type 2280 – PCIe 4.0 x4

Additional Storage

• 4 × SATA 6Gb/s ports

AMD RAIDXpert2

• Ryzen 9000: RAID 0 / 1 / 5 / 10

• Ryzen 8000: RAID 0 / 1

• Ryzen 7000: RAID 0 / 1 / 10

Wireless & Bluetooth

• Wi-Fi 6E (802.11ax)

• 2×2 Wi-Fi

• Supports 2.4 / 5 / 6 GHz bands

• Bluetooth 5.3

USB

Rear USB (12 Ports)

• 1 × USB 20Gbps (Type-C)

• 3 × USB 10Gbps (Type-A)

• 4 × USB 5Gbps (Type-A)

• 4 × USB 2.0

Front USB (6 Ports)

• 1 × USB 10Gbps Type-C connector

• 1 × USB 5Gbps header (supports 2 ports)

• 2 × USB 2.0 headers (supports 3 ports)

Audio

• Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC

• 120 dB SNR playback

• 113 dB SNR recording

• 32-bit / 192kHz audio playback

• Audio technologies:

  • Audio Shielding

  • Premium Audio Capacitors

  • Dedicated Audio PCB Layers

  • Audio Cover

  • De-pop Circuit

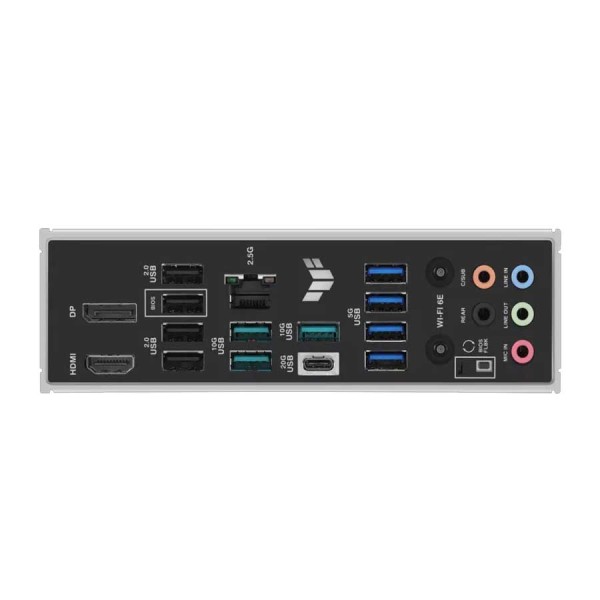

Back Panel I/O Ports

• 1 × USB 20Gbps Type-C

• 3 × USB 10Gbps

• 4 × USB 5Gbps

• 4 × USB 2.0

• 1 × DisplayPort

• 1 × HDMI

• 1 × Wi-Fi module

• 1 × Realtek 2.5Gb Ethernet

• 5 × Audio jacks

• 1 × BIOS FlashBack button

Internal I/O Connectors

Cooling

• 1 × CPU Fan header

• 1 × CPU OPT Fan header

• 1 × AIO Pump header

• 3 × Chassis Fan headers

Power

• 1 × 24-pin main power

• 2 × 8-pin CPU power

Storage

• 3 × M.2 slots

• 4 × SATA 6Gb/s

USB

• 1 × USB-C 10Gbps connector

• 1 × USB 5Gbps header

• 2 × USB 2.0 headers

Miscellaneous

• 3 × Addressable Gen 2 RGB headers

• 1 × Clear CMOS header

• 1 × Chassis Intrusion header

• 1 × COM port header

• 1 × Front panel audio header

• 1 × Front panel system header
