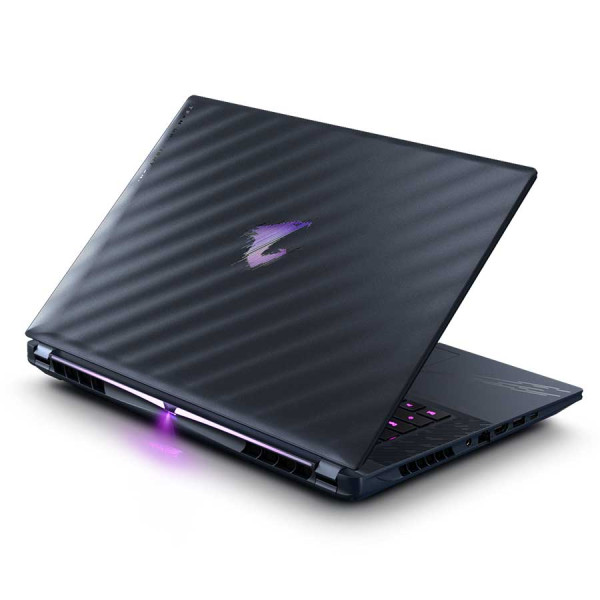

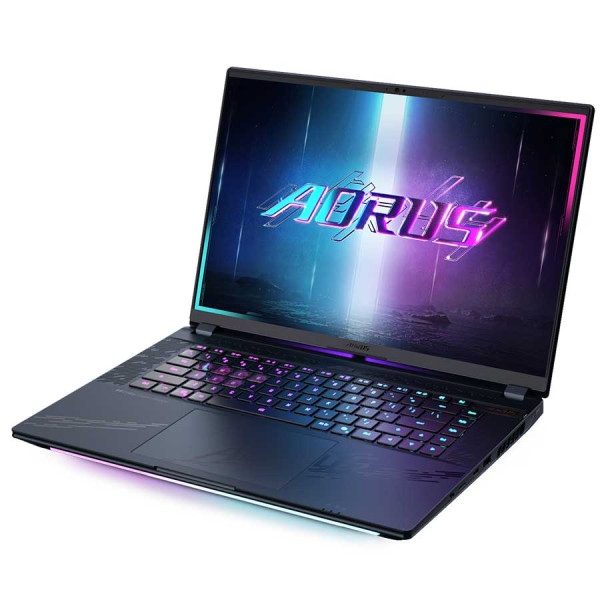

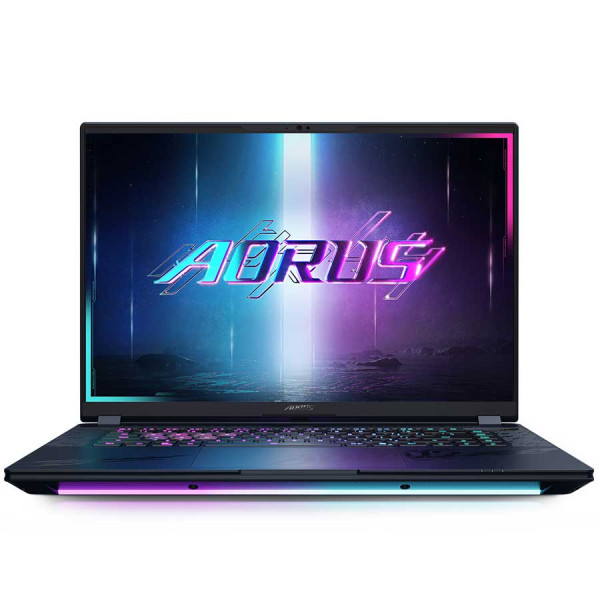

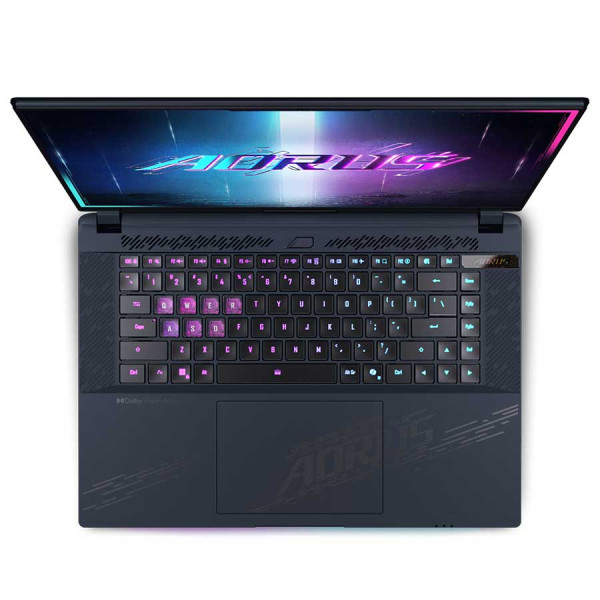

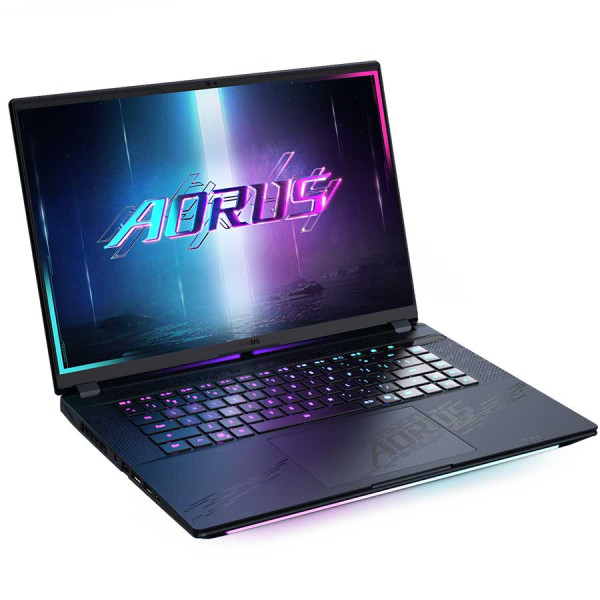

The AORUS MASTER 16 AM6H BYH is a next-gen gaming and creator laptop powered by the Intel® Core™ Ultra 9 275HX and NVIDIA GeForce RTX 5080 16GB. Featuring a 16" OLED 2.5K 240Hz display, 32GB DDR5 RAM, and 1TB Gen4 SSD, it delivers ultra-fast performance and AI-powered efficiency. With advanced cooling, Wi-Fi 7, and Thunderbolt 5, it's built for elite gaming and future-ready workloads.
Key Features
CPU: Intel® Core™ Ultra 9 275HX — 24‑core (8P + 16E), up to 5.4 GHz turbo, 36 MB cache, integrated NPU
GPU: NVIDIA GeForce RTX 5080 Laptop GPU — 16 GB GDDR7, up to 175 W TGP with Dynamic Boost, support for DLSS 4 & RTX ray tracing
Display: 16″ WQXGA (2560×1600) OLED, 240 Hz, 1 ms response, 100 % DCI‑P3, VESA DisplayHDR True Black 500, G‑SYNC
Memory & Storage: 32 GB DDR5‑5600 (expandable to 64 GB); 1 TB PCIe Gen4 SSD (plus Gen5 slot, up to 4 TB total)
Cooling & Build: WINDFORCE Infinity EX with vapor chamber, dual 158‑blade fans—thermal capacity up to 230 W; chassis ~2.5 kg
Battery & Power: 99 Wh battery with USB‑C PD fast-charge; 330 W AC adapter included
Connectivity: Wi‑Fi 7, Bluetooth 5.4; ports include Thunderbolt 5 & 4, HDMI 2.1, USB‑A, micro‑SD, RJ‑45
Technical Specifications
System & Performance
OS: Windows 11
CPU: Intel Core Ultra 9 275HX — 24 cores/24 threads, base ~2.1 GHz, turbo to 5.4 GHz, 36 MB L3 cache, built-in NPU
Graphics
GPU: NVIDIA GeForce RTX 5080 Laptop GPU — 16 GB GDDR7
TGP: up to 175 W with Dynamic Boost, supports DLSS 4, RT cores, NVIDIA Advanced Optimus
Display
Panel: 16″ OLED WQXGA (2560×1600), 16:10 aspect ratio
Features: 240 Hz refresh, 1 ms response, 100 % DCI‑P3, 500 nits peak, 1,000,000:1 contrast, Pantone‑validated, Dolby Vision, G‑SYNC, VESA DisplayHDR True Black 500
Memory & Storage
RAM: 32 GB DDR5‑5600 (2×16 GB), upgradable to 64 GB
SSD: 1 TB PCIe Gen4 M.2, plus an extra PCIe Gen5 slot—total storage up to 4 TB
Cooling & Build
Thermals: WINDFORCE Infinity EX – dual fans (158‑blade), vapor chamber, 0.1 mm fins, 4‑way airflow, 230 W TDP capacity
Chassis: Dark‑Tide design, slim bezels, WASD cool‑zone, weight ~2.5 kg, dimensions 357×254×23–29.9 mm
Connectivity & Ports
Wireless: Wi‑Fi 7 (802.11be 2×2), Bluetooth 5.4
I/O:

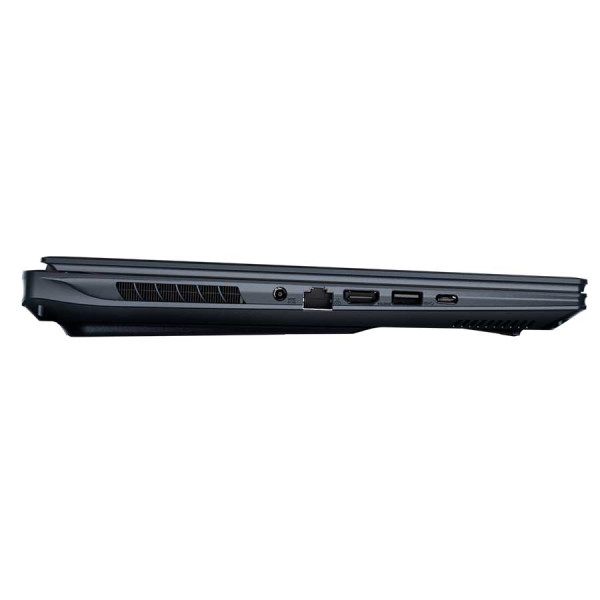

Left: DC‑in, RJ‑45, HDMI 2.1, USB‑A 3.2 Gen 2, Thunderbolt 5 (USB4, DP 2.1, PD3.0)

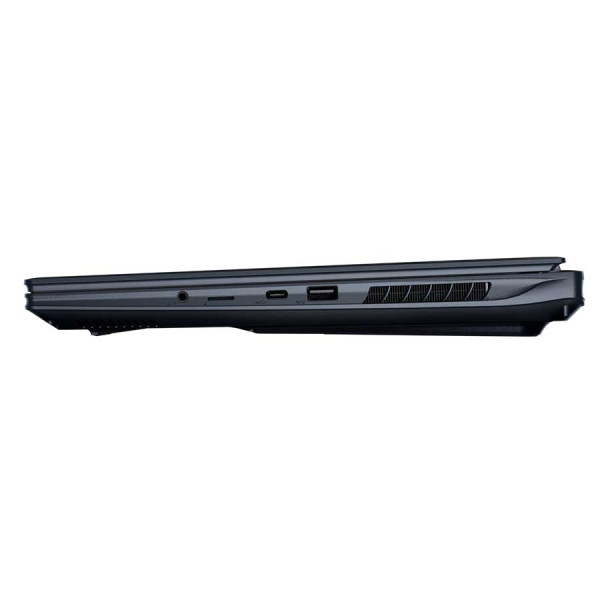

Right: USB‑A 3.2 Gen 2, Thunderbolt 4, micro‑SD (UHS‑II), 3.5 mm combo jack
Audio & Webcam
Speakers: 4 × 2 W (2 woofers + 2 tweeters), Dolby Atmos, Smart Amp
Webcam: 1080p IR with Windows Hello, built‑in mic array, AI noise-cancelling
Power & Battery
Battery: 99 Wh Li‑Polymer, supports USB‑C PD fast-charge (50 % in ~30 min)
Adapter: 330 W AC power brick + PD support
