Power Supply COUGAR GLE 1000W 80+ Gold Fully Modular ATX 3.1 PCIe 5.0 Ready

Built to power the latest high-performance gaming systems, the COUGAR GLE 1000W PSU delivers robust and efficient performance with cutting-edge ATX 3.1 and PCIe 5.0 support. It features full modularity, ultra-quiet operation, and industrial-grade components – making it a top-tier choice for enthusiasts who demand reliability, efficiency, and future-proof design.

Key Features:

• 1000W of stable power output – ideal for high-end gaming PCs

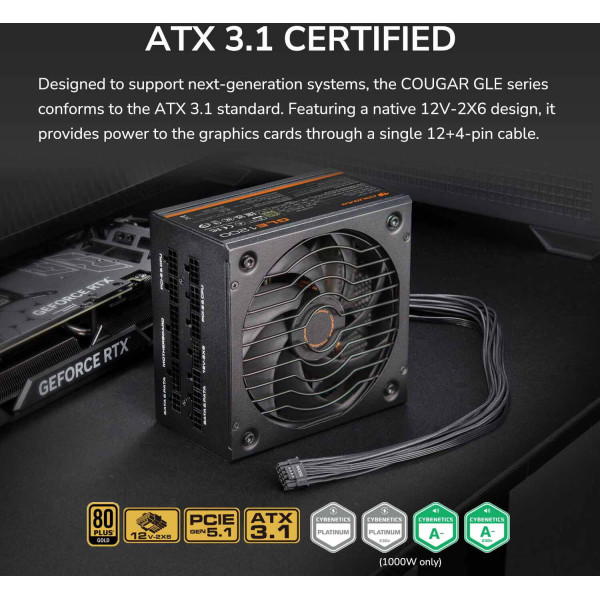

• ATX 3.1 & PCIe 5.0 ready – native 12VHPWR connector for latest GPUs

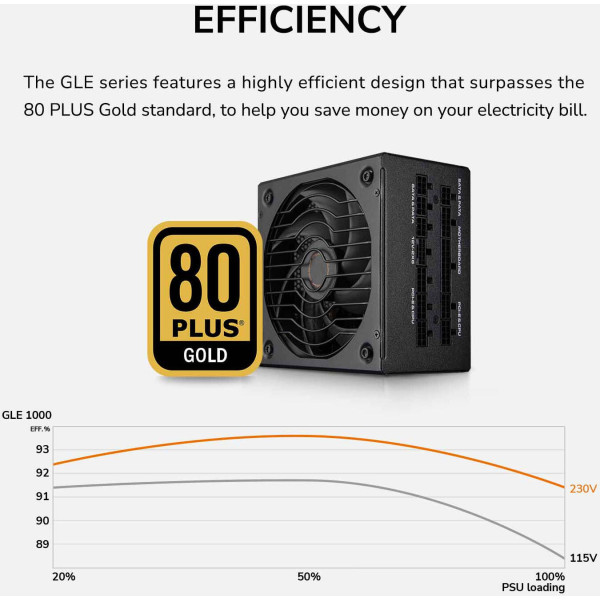

• 80 PLUS Gold Certification – up to 90% power efficiency

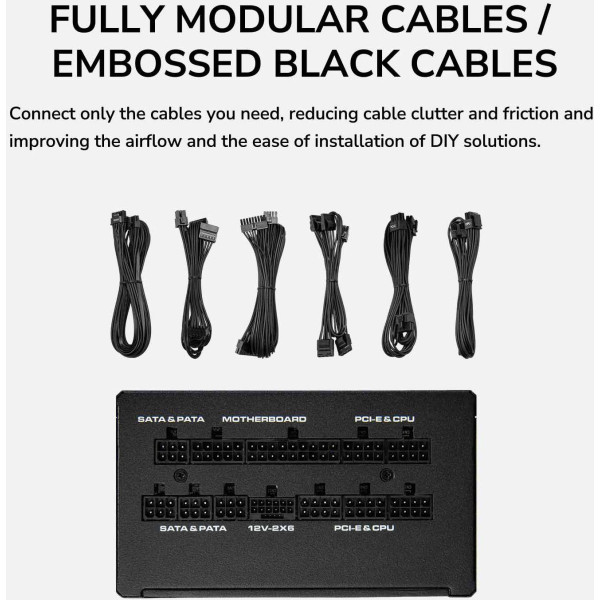

• Fully modular cable design – reduces cable clutter and improves airflow
• Advanced thermal control with zero RPM fan mode under low load
• Japanese capacitors – premium durability and performance
• Comprehensive protection: OCP, OVP, UVP, SCP, OTP, OPP

Technical Specifications:

• Model: COUGAR GLE 1000W – 31GF100007P01
• Form Factor: ATX – Intel ATX 3.1 compliant
• Total Power: 1000 Watts
• Efficiency Certification: 80 PLUS Gold (Up to 90% efficiency)
• Modularity: Fully Modular
• Cooling System: 135mm Ultra-silent Fan with Zero RPM Mode
• Capacitors: 100% Japanese capacitors
• Connectors:
– 1 × 24-pin ATX
– 2 × 8(4+4) pin EPS12V
– 6 × 8(6+2) pin PCIe
– 1 × 12VHPWR (600W, PCIe 5.0 ready)
– 12 × SATA
– 4 × Peripheral (Molex)
• Protections:
– Over Current Protection (OCP)
– Over Voltage Protection (OVP)
– Under Voltage Protection (UVP)
– Short Circuit Protection (SCP)
– Over Temperature Protection (OTP)
– Over Power Protection (OPP)
• Operating Temperature: 0 – 50°C
• MTBF: >100,000 hours
• Dimensions: 160mm (L) × 150mm (W) × 86mm (H)
