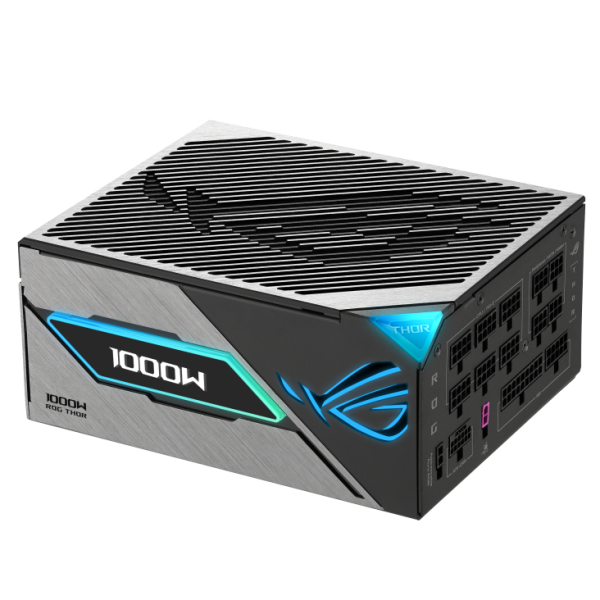

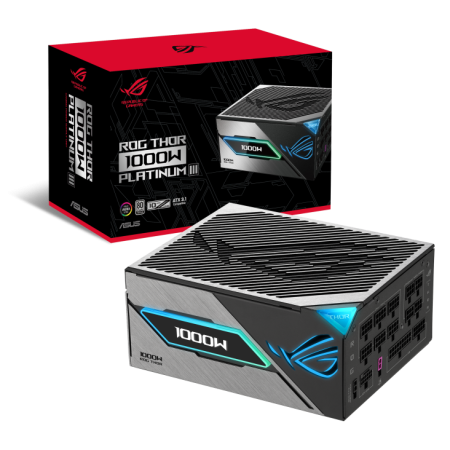

ASUS ROG THOR 1000W PLATINUM III Fully Mod POWER SUPPLY 80+ Platinum ATX 3.1 Magnetic OLED Display

The ROG THOR 1000W Platinum III is built for gamers and high-performance PC builders who demand efficient, quiet, and reliable power delivery. It combines 80 PLUS Platinum-certified efficiency with the latest ATX 3.1 and PCIe 5.0 standards, while offering a sleek design enhanced by a magnetic OLED power display and customizable ARGB lighting via AURA Sync. Engineered for longevity and clean cable management, it's ideal for next-gen hardware.

Key Features:

• 1000W fully modular power supply with premium build quality

• 80 PLUS Platinum certification for high energy efficiency

• Supports ATX 3.1 and PCIe 5.0 for next-gen compatibility

• Magnetic OLED display for real-time power monitoring

• 135mm Axial-tech fan with 0dB mode and dual ball bearings

• ROG heatsinks for enhanced thermal performance and durability

• Individually sleeved fully modular cables for clean setups

• ARGB lighting with AURA Sync support

Technical Specifications:

Product Name:
ASUS ROG THOR 1000W Platinum III
Model Number: 90YE00V3-B0NA00

Power Output:

• Rated Power: 1000W

• Type: ATX

• Efficiency: 80 PLUS Platinum

• Standard: ATX 3.1

Connectors:

• 1 × 24-pin motherboard connector

• 2 × 8-pin (4+4) CPU connectors

• 1 × 12VHPWR (600W) PCIe 5.0 connector

• 6 × 8-pin (6+2) PCIe connectors

• 12 × SATA connectors

• 5 × Molex (Peripheral) connectors

Cooling System:

• 135mm Axial-tech fan

• Dual ball bearings

• 0dB silent fan mode under low loads

• ROG heatsinks for better thermal control

OLED Display:

• Magnetic, repositionable OLED panel

• Real-time power draw monitoring

Cables:

• Fully modular, individually sleeved cables

Lighting:

• Addressable RGB (ARGB)

• Compatible with ASUS AURA Sync

Protection Features:

• OPP, OVP, UVP, SCP, OCP, OTP

Dimensions:
190 × 150 × 86 mm
