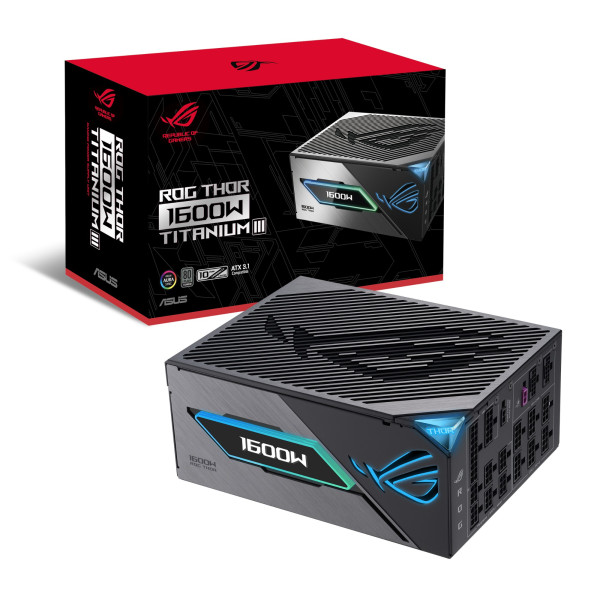

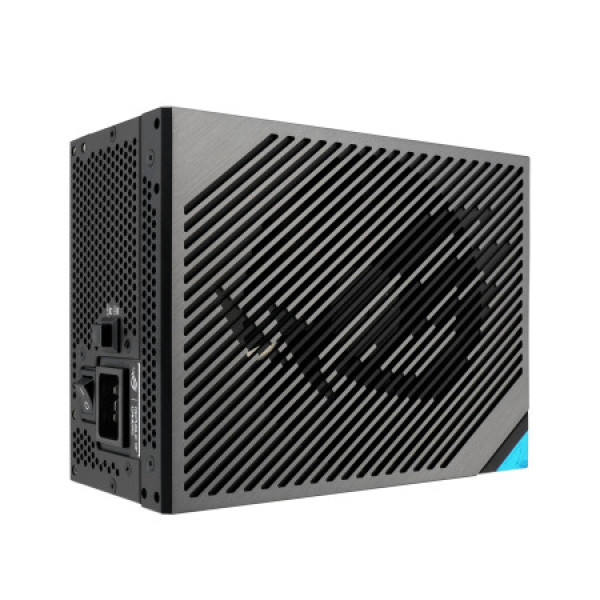

Power Supply ASUS ROG THOR 1600W – 80+ Titanium ATX 3.1 OLED Display Aura Sync RGB

The ASUS ROG THOR 1600W Titanium III is the pinnacle of power supply engineering, designed for extreme gaming rigs, overclocked systems, and next-gen GPUs. With a massive 1600W of clean, stable power, it meets the latest ATX 3.1 standard and features native 12VHPWR support for PCIe 5.0 graphics cards. Certified 80 PLUS Titanium for superior efficiency and equipped with advanced ROG heatsinks, premium capacitors, and a customizable OLED display, this PSU is made for enthusiasts who demand performance, silence, and visual flair — powered by ASUS Aura Sync RGB.

Key Features

• Massive 1600W continuous power output for high-end systems

• 80 PLUS Titanium certification for ultra-efficient performance

• Fully modular cables for easy cable management

• ATX 3.1 support with native 12VHPWR (600W) cable

• ROG-designed heatsinks for cooler and quieter operation

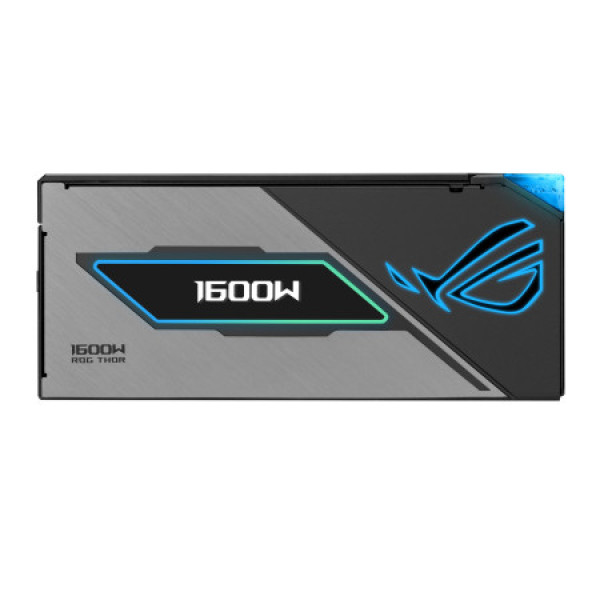

• OLED Power Display for real-time power monitoring

• 135mm Axial-tech fan with 0dB mode under low loads

• Aura Sync RGB lighting for system-wide customization

• 10-year manufacturer warranty for peace of mind

Technical Specifications

Model: ASUS ROG THOR 1600W Titanium III
Part Number: 90YE00V1-B0NA00
Form Factor: ATX (ATX 3.1 compliant)
Wattage: 1600W continuous output
Efficiency Certification: 80 PLUS Titanium
Modular: Fully modular

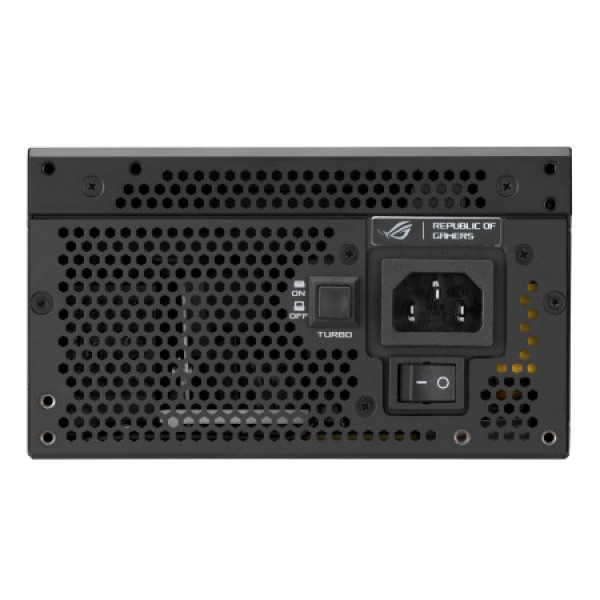

Input Voltage: 100–240V AC
Cooling System:

• 135mm Axial-tech fan

• 0dB fan mode with dustproof IP5X certification
  Display: Integrated OLED panel showing power draw in real-time
  Heatsink: ROG custom heatsinks for 2x more surface area

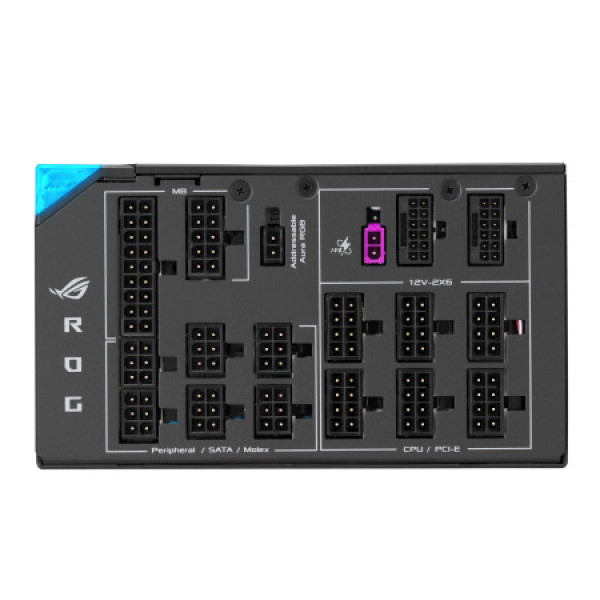

  Connectors:

• 1 × 24-pin ATX

• 2 × 8-pin (4+4) CPU

• 8 × 6+2 PCIe

• 1 × 12VHPWR (600W native)

• 12 × SATA

• 5 × Peripheral (Molex)
  RGB Lighting: ASUS Aura Sync compatible
  Protection Features:

• OVP (Over Voltage Protection)

• OPP (Over Power Protection)

• SCP (Short Circuit Protection)

• OCP (Over Current Protection)

• OTP (Over Temperature Protection)
  Dimensions: 190 x 150 x 86 mm
