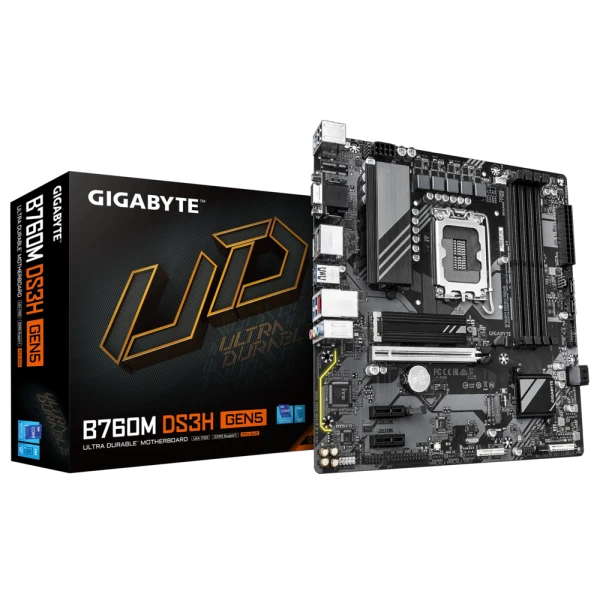

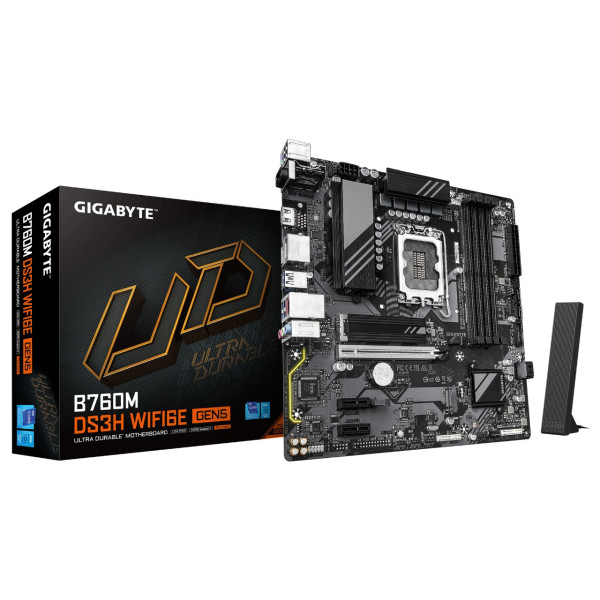

Motherboard GIGABYTE B760M DS3H UD DDR5 Wi-Fi 6E – LGA 1700

The GIGABYTE B760M DS3H AX is designed for users who demand stability, speed, and modern features in a compact micro-ATX form factor. Supporting 13th and 12th Gen Intel® Core™ processors with LGA 1700 socket, DDR5 memory up to 7600MHz (OC), and blazing-fast Wi-Fi 6E, this motherboard is ready for today’s gaming and productivity demands. With PCIe Gen5 graphics support, dual Gen4 M.2 slots, and advanced thermal management via Smart Fan 6, it’s an ideal foundation for building high-performance desktop systems.

Key Features:

• Supports 13th and 12th Gen Intel® Core™ processors (LGA 1700)
• DDR5 memory support up to 7600MHz (OC)
• Built-in Intel® Wi-Fi 6E and Bluetooth 5.3
• PCIe 5.0 x16 slot for next-generation GPU performance
• Dual M.2 slots with PCIe 4.0 x4 for ultra-fast NVMe storage
• 2.5GbE LAN for high-speed wired networking
• Smart Fan 6 and Q-Flash Plus for optimal cooling and BIOS control
• Reinforced PCIe slot and high-quality components for enhanced durability

Technical Specifications:

• Form Factor: Micro-ATX
• CPU Socket: LGA 1700
• Chipset: Intel® B760
• Processor Support: 13th / 12th Gen Intel® Core™, Pentium® Gold, Celeron®
• Memory Support:
– 2 x DDR5 DIMM slots
– Dual-channel architecture
– Up to 64GB capacity
– Up to DDR5 7600MHz (OC)

• Expansion Slots:
– 1 x PCIe 5.0 x16 (reinforced)
– 1 x PCIe 3.0 x1

• Storage Options:
– 2 x M.2 PCIe Gen4 x4 slots (2280)
– 4 x SATA 6Gb/s ports

• Audio:
– 8-Channel High Definition Audio
– Realtek Audio Codec

• Networking:
– Intel® Wi-Fi 6E 802.11ax + Bluetooth 5.3
– Realtek 2.5Gb Ethernet LAN

• Rear I/O Ports:
– 1 x USB-C 3.2 Gen2
– 2 x USB 3.2 Gen1 Type-A
– 4 x USB 2.0
– 1 x HDMI
– 1 x DisplayPort
– 1 x RJ-45 LAN
– Audio jacks

• Internal Connectors:
– USB 3.2 Gen1 headers
– USB 2.0 headers

• Cooling: Smart Fan 6 with hybrid fan headers and FAN STOP function
• BIOS Features: Q-Flash Plus – update BIOS without CPU, RAM, or GPU
• OS Support: Windows 10 / 11 – 64-bit
• Dimensions: 24.4cm x 24.4cm
