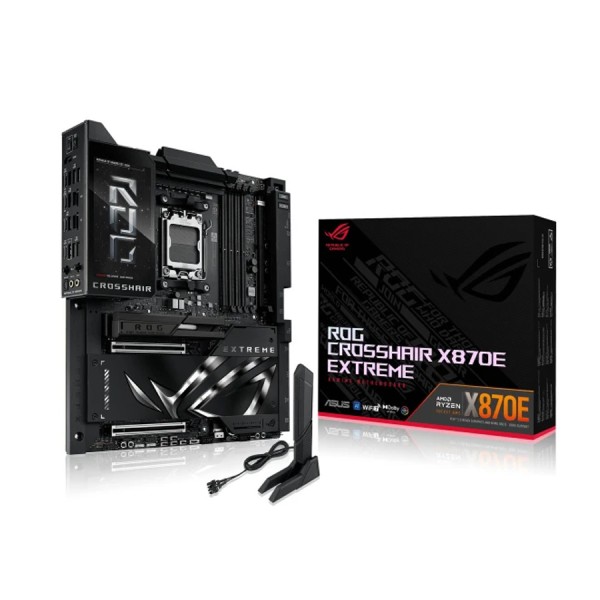

The ASUS ROG CROSSHAIR X870E EXTREME is an ultra-premium motherboard engineered for elite-level gaming and overclocking. Designed for AMD Ryzen™ 8000 and 7000 Series desktop processors, it features advanced thermal solutions, cutting-edge connectivity including WiFi 7 and USB4, full PCIe 5.0 support, and next-gen DDR5 memory. With extensive tuning options, superior audio, and a massive power delivery system, this board is built for performance enthusiasts, streamers, and hardcore gamers.
Key Features:
• Supports AMD Ryzen™ 8000 & 7000 Series processors (AM5 socket)
• Massive 24+2 power stage VRM design for extreme overclocking
• DDR5 memory support up to 8000+ MT/s (OC)
• WiFi 7 + Bluetooth 5.4 for ultra-fast wireless performance
• Dual PCIe 5.0 x16 slots for multi-GPU or high-speed expansion
• 5 x M.2 slots (including PCIe 5.0) for cutting-edge NVMe storage
• USB4 Type-C, USB 3.2 Gen 2x2, and Thunderbolt™ support
• SupremeFX 7.1 surround sound with ESS SABRE DAC
• Extensive RGB and fan control with ASUS Aura Sync and FanXpert 4
• Integrated OLED LiveDash display and premium heatsinks
Technical Specifications:
• Form Factor: E-ATX
• CPU Socket: AM5
• Chipset: AMD X870E
• Supported CPUs: AMD Ryzen™ 8000 & 7000 Series
• Power Delivery:
– 24+2 teamed power stages
– High-end alloy chokes & durable capacitors
– ProCool II power connectors
• Memory Support:
– 4 × DDR5 DIMM slots
– Dual-channel architecture
– Up to 192GB total capacity
– Up to 8000+ MT/s (OC)
• Expansion Slots:
– 2 × PCIe 5.0 x16 (x16 or x8/x8)
– 1 × PCIe 4.0 x1
• Storage:
– 5 × M.2 slots:
• 2 × M.2 PCIe 5.0 x4
• 3 × M.2 PCIe 4.0 x4
– 6 × SATA 6Gb/s ports
– M.2 Q-Latch tool-free design
• Networking:
– WiFi 7
– Bluetooth 5.4
– 1 × Marvell AQtion 10Gb Ethernet
– 1 × Intel 2.5Gb Ethernet
• USB Ports:
– Rear I/O:
• 2 × USB4 Type-C
• 6 × USB 3.2 Gen 2 Type-A
• 4 × USB 3.2 Gen 1
– Internal Headers:
• USB 3.2 Gen 2 Type-C (front panel)
• USB 2.0 headers
• Thunderbolt™ add-on card header
• Display Output:
– 1 × HDMI 2.1
• Audio:
– SupremeFX 7.1 Surround Sound
– ESS SABRE9218 DAC
– High-end Nichicon capacitors
– Sonic Studio III, DTS Sound Unbound
• Cooling & Customization:
– Large VRM & chipset heatsinks
– Multiple hybrid fan headers
– ROG Fan Controller included
– ASUS FanXpert 4 & UEFI BIOS Q-Fan
– ASUS Aura Sync RGB (ARGB + RGB headers)
– Integrated LiveDash OLED display
• Other Features:
– Q-Code, Q-LED, BIOS FlashBack™, and FlexKey
– Pre-mounted I/O shield
– ROG True Voltician (diagnostics tool)
– AI Overclocking, AI Cooling II, AI Networking
• Operating System Support:
– Windows 11 / Windows 10 64-bit
