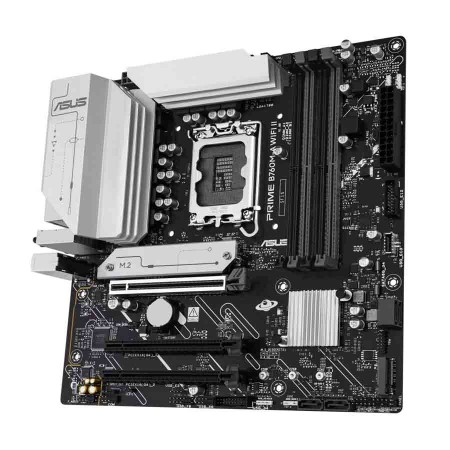

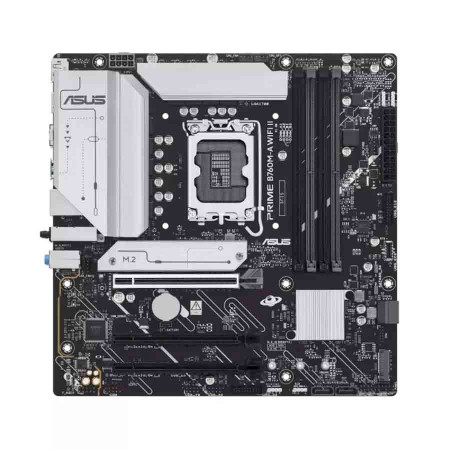

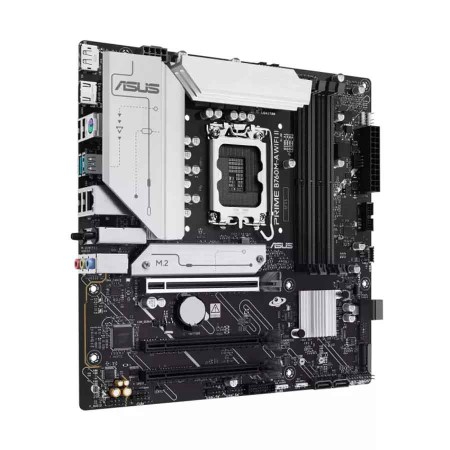

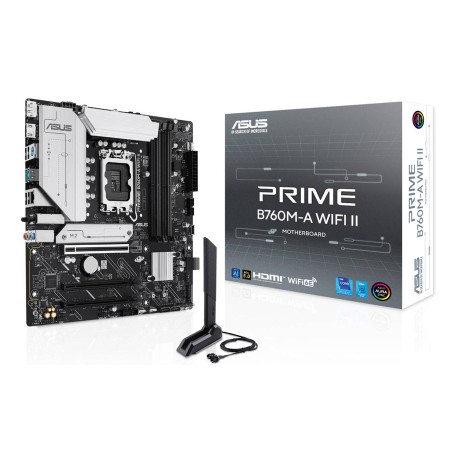

ASUS PRIME B760M-A WIFI II DDR5 LGA 1700 Micro-ATX Motherboard – WiFi 6E PCIe 5.0
The ASUS PRIME B760M-A WIFI II is designed to provide reliable performance, modern connectivity, and excellent expandability for gaming and productivity systems. Supporting 12th, 13th, and 14th Gen Intel Core processors on the LGA 1700 platform, it combines DDR5 memory, PCIe 5.0 graphics support, PCIe 4.0 NVMe storage, Wi-Fi 6E, and 2.5Gb Ethernet in a compact Micro-ATX form factor.
Key Features:
• Supports 12th, 13th & 14th Gen Intel Core processors
• Intel B760 chipset
• 4 × DDR5 DIMM slots with Intel XMP support
• PCIe 5.0 x16 slot for next-generation graphics cards
• 2 × PCIe 4.0 x4 M.2 NVMe slots
• Wi-Fi 6E with Bluetooth 5.4
• Realtek 2.5Gb Ethernet
• HDMI and DisplayPort outputs
• Realtek 7.1 HD Audio
• ASUS Aura Sync RGB lighting support
• Intel Rapid Storage Technology with RAID 0 / 1 / 5 / 10
• Multiple fan headers for advanced cooling
Technical Specifications:
CPU & Chipset
• Socket: LGA 1700
• CPU Support: Intel Core 12th / 13th / 14th Gen
• Chipset: Intel B760
• Form Factor: Micro-ATX
Memory
• 4 × DDR5 DIMM Slots
• Intel XMP Memory Overclocking Support
Expansion Slots
• 1 × PCIe 5.0 x16
• 1 × PCIe 4.0 x16 (x4 mode)
• 1 × PCIe 4.0 x16 (x1 mode)
Storage
• 2 × PCIe 4.0 x4 M.2 NVMe Slots
• Supports 2242 / 2260 / 2280 SSDs
• 4 × SATA 6Gb/s Ports
• Intel Rapid Storage Technology
• RAID 0 / 1 / 5 / 10
Wireless Connectivity
• Wi-Fi 6E (802.11ax)
• 2×2 Antenna Design
• Supports 2.4GHz / 5GHz / 6GHz
• 160MHz Channel Bandwidth
• Bluetooth 5.4
USB Connectivity
Rear I/O
• 2 × USB 10Gbps Type-A
• 4 × USB 2.0 Type-A
Front USB
• 2 × USB 5Gbps Headers (Supports 4 ports)
• 1 × USB Type-C 5Gbps Front Connector
• 3 × USB 2.0 Headers (Supports up to 5 ports)
Audio
• Realtek 7.1 High Definition Audio CODEC
• 24-bit / 192kHz Playback
• Audio Shielding
• Premium Audio Capacitors
• Dedicated Audio PCB Layers

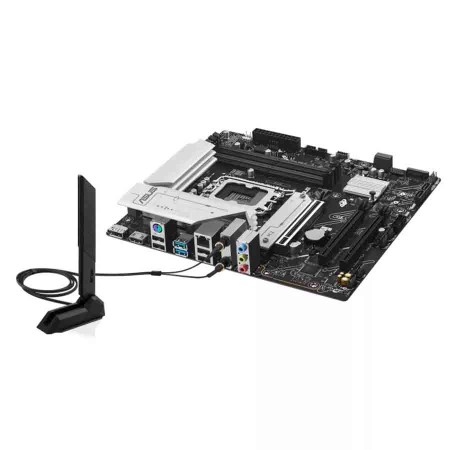

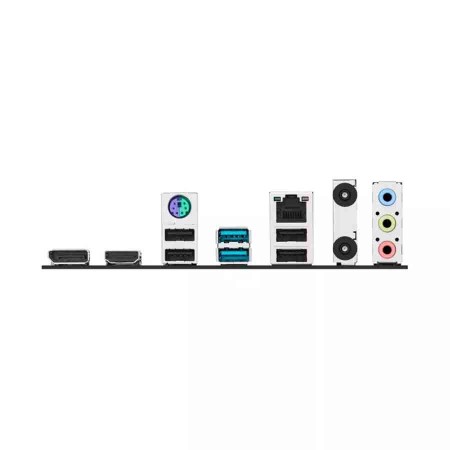

Rear I/O Ports
• 2 × USB 10Gbps Type-A
• 4 × USB 2.0 Type-A
• 1 × DisplayPort
• 1 × HDMI
• 1 × Realtek 2.5Gb Ethernet
• 1 × Wi-Fi Module
• 3 × Audio Jacks
• 1 × PS/2 Combo Port
Internal Connectors
Cooling
• 1 × CPU Fan
• 1 × CPU OPT Fan
• 2 × Chassis Fan
Power
• 1 × 24-pin ATX Power
• 1 × 8-pin CPU Power
Storage
• 2 × M.2 Slots
• 4 × SATA 6Gb/s Ports
USB
• 2 × USB 5Gbps Headers
• 1 × USB Type-C 5Gbps Header
• 3 × USB 2.0 Headers
Additional Headers
• 3 × Addressable Gen 2 RGB Headers
• 1 × Aura RGB Header
• 1 × Clear CMOS Header
• 1 × COM Header
• 1 × Front Panel Audio Header
• 1 × S/PDIF Out Header
• 1 × SPI TPM Header
• 1 × System Panel Header with Chassis Intrusion Support
