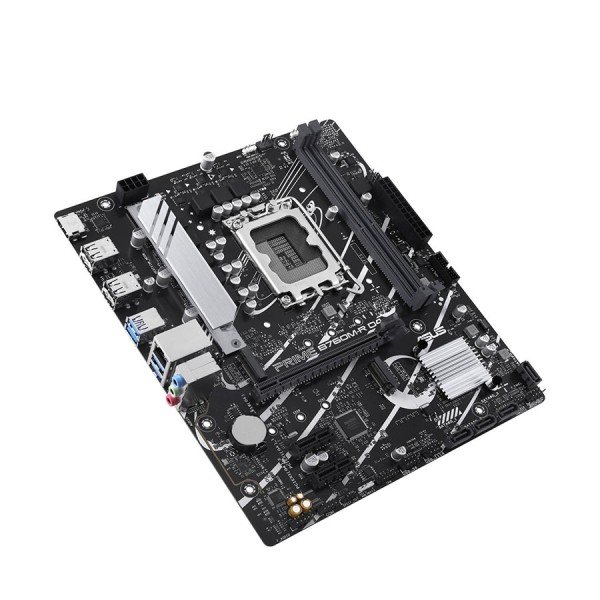

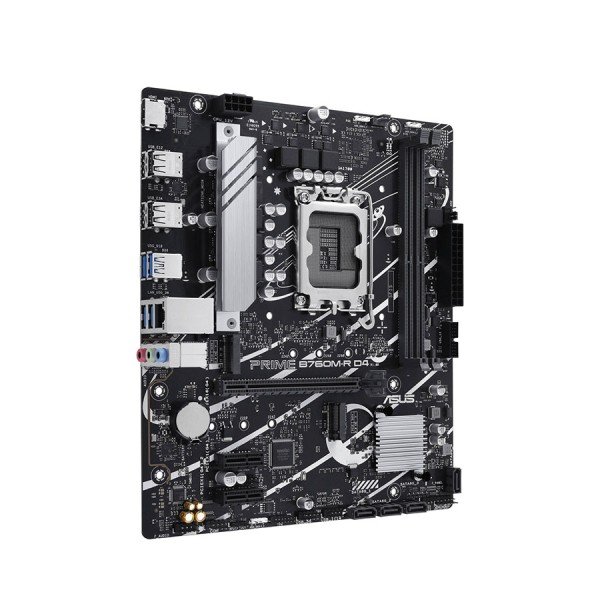

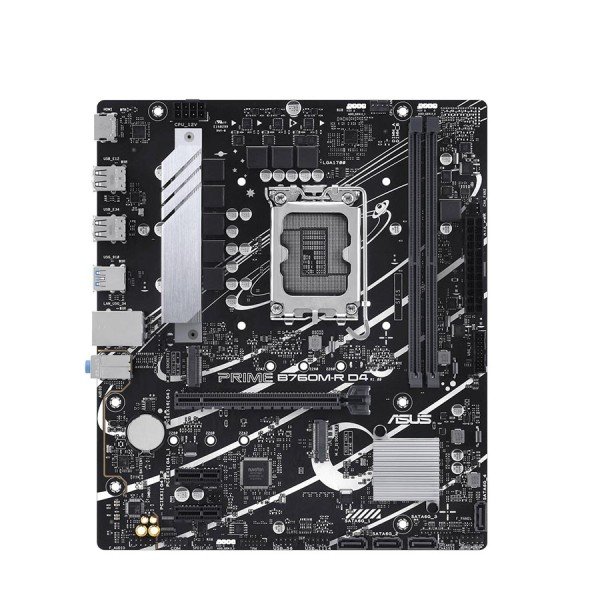

MOTHERBOARD ASUS PRIME B760M-R D4, Micro-ATX, DDR4 memory, 2 × DIMM, support 12th, 13th, and 14th Gen CPUs

The ASUS PRIME B760M-R D4 is a Micro-ATX motherboard designed for Intel 12th, 13th, and 14th Gen processors with an LGA 1700 socket. It supports DDR4 memory up to 64 GB with XMP and high-speed profiles, and features AURA Sync RGB for customizable lighting. The board includes two M.2 PCIe 4.0 storage slots, PCIe 4.0 ×16 and PCIe 4.0 ×1 expansion slots, an efficient thermal design, and smart features to enhance performance and audio quality.

Key Features

• LGA 1700 socket for Intel 12th, 13th, and 14th Gen processors

• Supports DDR4 memory up to 64 GB with XMP

• Memory Slots: 2 × DIMM

• 2 × M.2 PCIe 4.0 slots + 4 × SATA 6 Gb/s

• Integrated Realtek 2.5 Gb Ethernet

• AURA Sync RGB with Addressable Gen 2 headers

• Micro-ATX form factor suitable for compact cases

• Expansion slots: PCIe 4.0 ×16 and 2 × PCIe 4.0 ×1

• Two-Way AI Noise Cancellation for enhanced audio quality

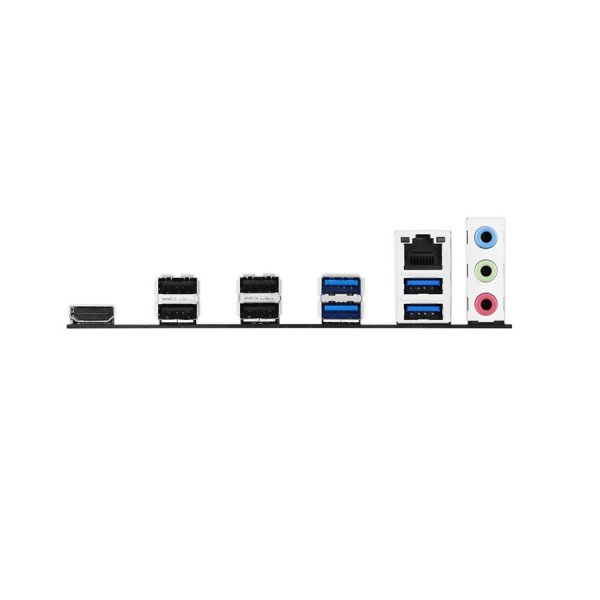

Rear I/O Ports

• 4 × USB 3.2 Gen 1 Type-A

• 4 × USB 2.0

• 1 × HDMI

• 1 × RJ-45 LAN (2.5 Gb)

• 3 × Audio jacks (7.1)

Internal Connectors

• 24‑pin main power + 8‑pin auxiliary power

• 1 × CPU fan header + 2 × chassis fan headers

• Front USB headers (USB 5 Gbps + USB 2.0)

• 3 × Addressable Gen 2 RGB headers

Audio

• High-definition Realtek 7.1 HD codec

Pros

• Compact Micro-ATX size → ideal for small cases

• Fast storage support with M.2 and SATA

• High-speed 2.5 Gb network → good for gaming and work

• Customizable RGB lighting with Aura Sync
