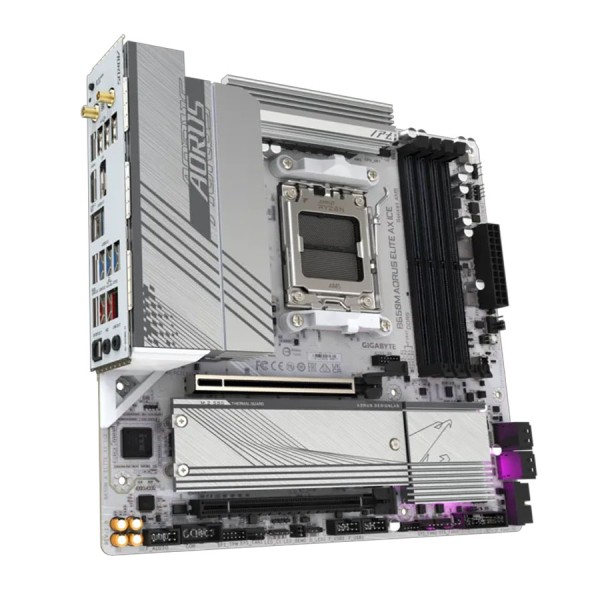

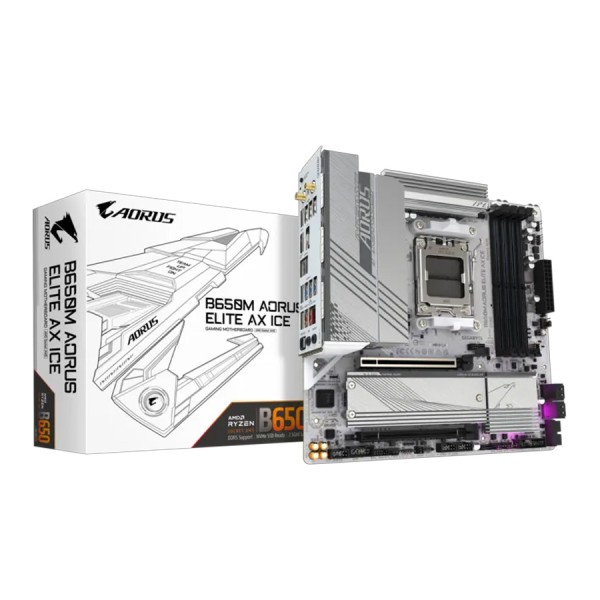

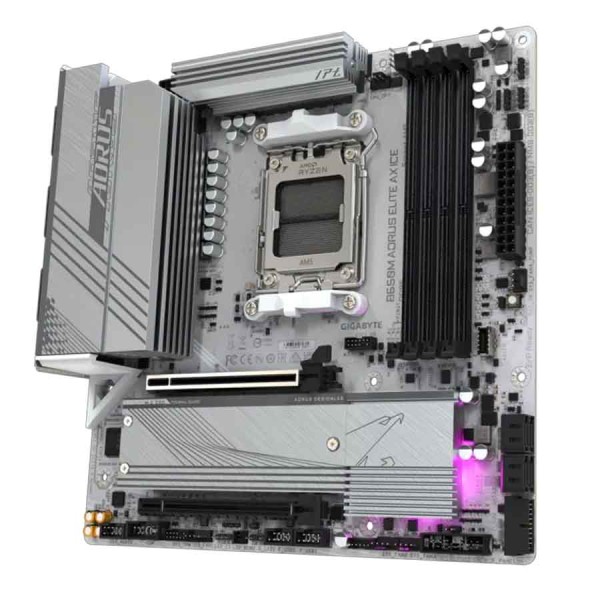

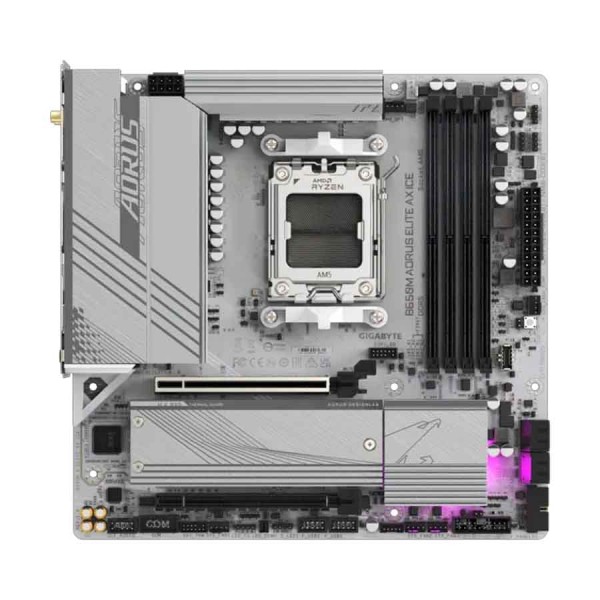

The Gigabyte B650M AORUS ELITE AX ICE is a high-performance Micro-ATX gaming motherboard built for the AM5 platform, supporting modern DDR5 memory and designed with a stylish ICE white theme. It supports the latest AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, and AMD Ryzen 9000 Series processors, making it ideal for gaming and high-performance PC builds.
Key Features:
Supports AMD AM5 Ryzen processors
DDR5 memory support
Micro-ATX form factor
Wi-Fi 6E and Bluetooth 5.3
2.5Gb Ethernet LAN
PCIe 4.0 x16 graphics slot
PCIe 5.0 NVMe M.2 storage support
Multiple USB 3.2 ports including USB-C
RGB / ARGB lighting support
Advanced thermal design for stable performance
Technical Specifications:
Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support
1 × DisplayPort
Maximum resolution: 3840 × 2160 @ 144Hz
Supports DisplayPort 1.4 and HDR
1 × HDMI port
Maximum resolution: 4096 × 2160 @ 60Hz
Supports HDMI 2.1 and HDCP 2.3
Supports native HDMI 2.1 TMDS compatible ports
Graphics specifications may vary depending on CPU support.
Audio
Realtek® Audio CODEC
High Definition Audio
Supports 2 / 4 / 5.1 / 7.1-channel audio
Audio jack functionality can be changed via audio software
Optical S/PDIF Out support
Wireless Communication Module
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
Supports Wi-Fi a / b / g / n / ac / ax
Supports 2.4 / 5 / 6 GHz frequency bands
Bluetooth 5.3
Supports 802.11ax 160MHz wireless standard
Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)
Supports Wi-Fi a / b / g / n / ac / ax
Supports 2.4 / 5 / 6 GHz frequency bands
Bluetooth 5.3
Supports 802.11ax 160MHz wireless standard
Actual data rates may vary depending on environment and equipment.
Expansion Slots
CPU
1 × PCI Express x16 slot (PCIEX16)
Supported modes:
Ryzen 7000 / Ryzen 9000 processors: PCIe 4.0 x16
Ryzen 8000 Phoenix 1 processors: PCIe 4.0 x8
Ryzen 8000 Phoenix 2 processors: PCIe 4.0 x4
The PCIEX16 slot supports a graphics card or NVMe SSD only.
Chipset
1 × PCI Express x16 slot (PCIEX4)
Supports PCIe 4.0 running at x4
Storage Interface
M.2 Slots
1 × M.2 connector (M2A_CPU)
Supports Socket 3, M-Key, sizes 25110 / 22110 / 2580 / 2280
Ryzen 7000 / 9000 → PCIe 5.0 x4/x2
Ryzen 8000 Phoenix 1 → PCIe 4.0 x4/x2
Ryzen 8000 Phoenix 2 → PCIe 4.0 x4/x2
1 × M.2 connector (M2B_CPU)
Supports Socket 3, M-Key, sizes 25110 / 22110 / 2580 / 2280
Ryzen 7000 / 9000 → PCIe 4.0 x4/x2
Ryzen 8000 Phoenix 1 → PCIe 4.0 x4/x2
Ryzen 8000 Phoenix 2 → PCIe 4.0 x2
SATA
4 × SATA 6Gb/s connectors
RAID Support
RAID 0 / 1 / 10 for NVMe SSD
RAID 0 / 1 / 10 for SATA storage devices
USB Ports
CPU
1 × USB Type-C (USB 3.2 Gen 2) – rear panel
2 × USB 3.2 Gen 2 Type-A – rear panel
CPU + USB 2.0 Hub
4 × USB 2.0 / 1.1 – rear panel
Chipset
1 × USB Type-C (USB 3.2 Gen 2x2) – internal header
3 × USB 3.2 Gen 1 ports
1 rear
2 via internal header
4 × USB 2.0 / 1.1 via internal headers
Chipset + USB 3.2 Hub
4 × USB 3.2 Gen 1 ports – rear panel
Internal I/O Connectors
1 × 24-pin ATX main power connector
1 × 8-pin ATX 12V CPU power
1 × CPU fan header
1 × CPU fan / water cooling pump header
3 × system fan headers
1 × system fan / water cooling pump header
2 × addressable RGB headers
2 × RGB LED headers
1 × CPU cooler LED / RGB header
2 × M.2 sockets
4 × SATA connectors
1 × front panel header
1 × front panel audio header
1 × USB-C header (USB 3.2 Gen 2x2)
1 × USB 3.2 Gen 1 header
2 × USB 2.0 headers
1 × serial port header
1 × THB_U4 add-in card connector
1 × TPM header
1 × reset button
1 × reset jumper
1 × Clear CMOS jumper

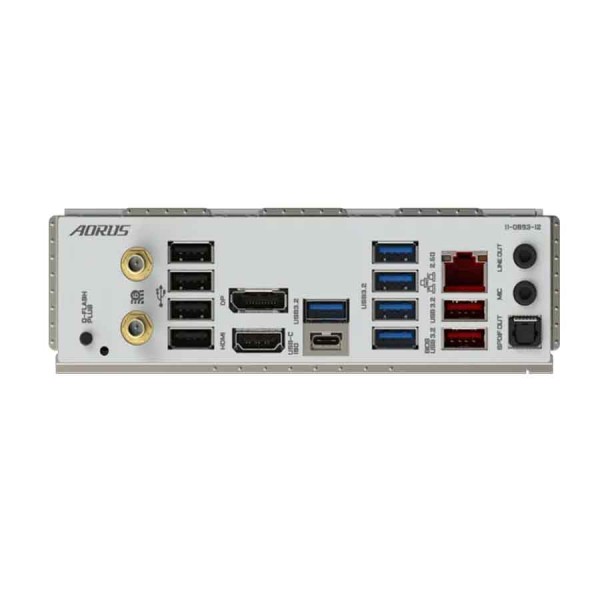

Back Panel Connectors
1 × Q-Flash Plus button
2 × SMA antenna connectors
1 × DisplayPort
1 × HDMI
1 × USB-C (USB 3.2 Gen 2)
2 × USB 3.2 Gen 2 Type-A
5 × USB 3.2 Gen 1
4 × USB 2.0
1 × RJ-45 LAN port
1 × Optical S/PDIF Out
2 × Audio jacks
