The Samsung 9100 PRO 8TB PCIe 5.0 NVMe M.2 SSD delivers next-generation ultra-fast performance powered by the PCIe 5.0 interface, offering massive capacity and a professional design with a built-in heatsink to ensure stable performance even under the most demanding workloads
Key Features:
• Sequential read speed up to 14800MB/s
• Sequential write speed up to 13400MB/s
• Random performance up to 2200000 IOPS read and 2600000 IOPS write
• Storage capacity 8TB
• PCIe 5.0 x4 interface with NVMe 2.0

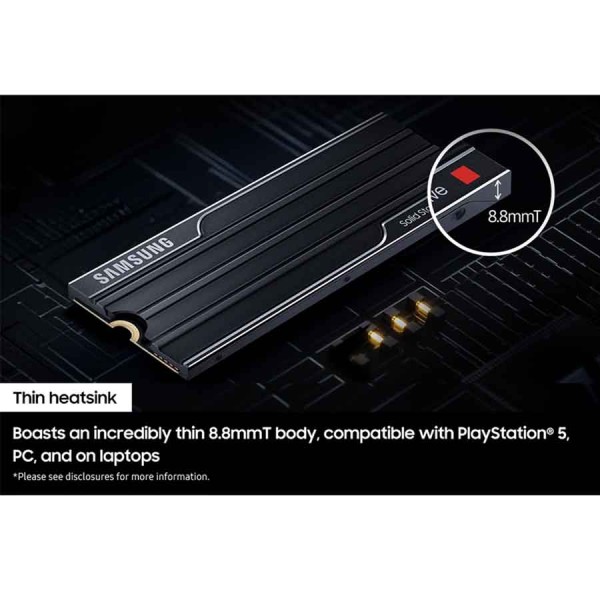

• M.2 2280 form factor with built-in heatsink
• Samsung V-NAND TLC memory
• 8GB LPDDR4X cache
• Supports TRIM, SMART, and Garbage Collection
• AES 256-bit encryption with TCG Opal and IEEE1667 support
• Suitable for PCs and gaming systems
• Reliability up to 1.5 million hours MTBF
Technical Specifications:
General Information
• Model MZ-VAP8T0CW
• Capacity 8TB 8000GB
• Storage Type NVMe M.2 SSD
• Form Factor M.2 2280
• Interface PCIe 5.0 x4
• Protocol NVMe 2.0
• Controller Samsung in-house Controller
• NAND Type Samsung V-NAND TLC
• Cache Memory 8GB LPDDR4X SDRAM
Performance
• Sequential Read up to 14800MB/s
• Sequential Write up to 13400MB/s
• Random Read up to 2200000 IOPS
• Random Write up to 2600000 IOPS
Power Consumption
• Average power 10.5W read / 8.8W write
• Idle power 9.3mW
• Sleep mode power 8.6mW
• Voltage 3.3V ±5%
Environment
• Operating temperature 0 to 70°C
• Shock resistance 1500G / 0.5ms
• Reliability 1.5 million hours MTBF
Physical
• Dimensions 80.15 × 25 × 11.25 mm (with heatsink)
• Weight up to 35g
Special Features
• TRIM support
• SMART support
• Automatic Garbage Collection
• AES 256-bit Class 0 encryption with TCG Opal and IEEE1667
• Device Sleep mode supported Yes
• WWN not supported
Compatibility
• Client PCs
• Game consoles
Software & Accessories
• Management software Samsung Magician
• Installation kit Not included
Warranty
• 5-year limited warranty or up to 4800TBW
