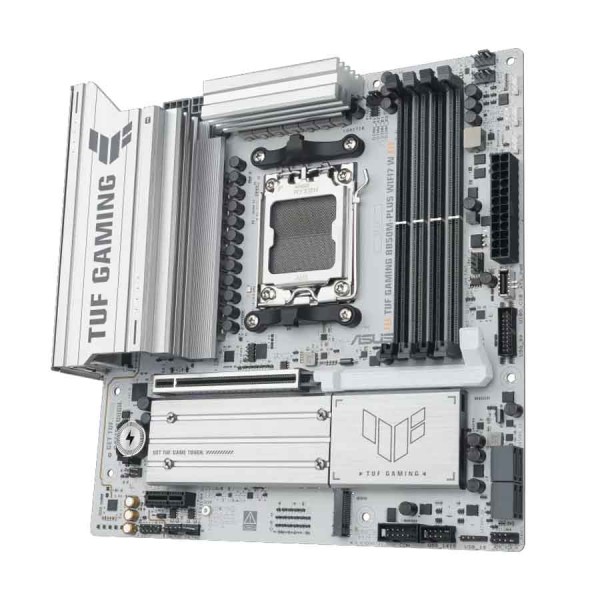

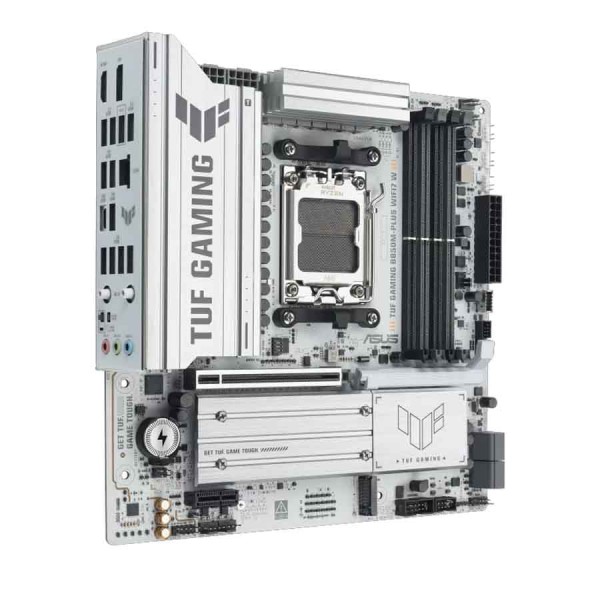

The ASUS TUF GAMING B850M‑PLUS WIFI 7 motherboard is designed for gamers and advanced PC builders, powered by the AMD B850 Chipset and supporting the latest AMD Ryzen AM5 Processors. With durable TUF components, next-generation DDR5 memory, PCIe 5.0, and ultra-fast Wi-Fi 7 connectivity, this motherboard provides a reliable platform for modern gaming and high-performance computing.
Key Features:
Supports AMD AM5 socket for Ryzen 9000 / 8000 / 7000 processors.
DDR5 memory support for faster performance.
PCIe 5.0 x16 slot for next-generation graphics cards.
Multiple M.2 NVMe slots for high-speed storage.
RAID support for improved performance and data redundancy.
Built-in Wi-Fi 7 supporting 2.4 / 5 / 6 GHz bands.
Bluetooth 5.4 wireless connectivity.
2.5Gb Ethernet LAN for high-speed networking.
Extensive USB connectivity including 20Gbps USB-C.
High-definition 7.1 channel audio with Realtek codec.
Aura Sync RGB lighting support.
Advanced cooling support with multiple fan and pump headers.
Technical Specifications:
Chipset
AMD B850
Socket
AM5
Expansion Slots
Ryzen 9000 / 7000 Series
1 × PCIe 5.0 x16 (x16 mode)
Ryzen 8000 Series
1 × PCIe 4.0 x16 (x8/x4 mode)
AMD B850 Chipset
1 × PCIe 4.0 x1
Storage
Total: 3 × M.2 slots + 4 × SATA 6Gb/s
Ryzen 9000 / 7000 Series
M.2_1 (2280) supports PCIe 5.0 x4
M.2_2 (2242/2260/2280) supports PCIe 4.0 x4
Ryzen 8000 Series
M.2_1 (2280) supports PCIe 4.0 x4
M.2_2 (2242/2260/2280) supports PCIe 4.0 x4/x2
AMD B850 Chipset
M.2_3 (2280) supports PCIe 4.0 x4
4 × SATA 6Gb/s
RAID Support
AMD RAIDXpert2 Technology
Ryzen 9000: RAID 0 / 1 / 5 / 10
Ryzen 8000: RAID 0 / 1
Ryzen 7000: RAID 0 / 1 / 10
Wireless & Bluetooth
Wi-Fi 7 (MediaTek MT7925)
2×2 Wi-Fi 7 (802.11be)
2.4 / 5 / 6 GHz support
160 MHz bandwidth
Bluetooth 5.4
USB
Rear (12 ports)
1 × USB-C 20Gbps
3 × USB-A 10Gbps
4 × USB-A 5Gbps
4 × USB 2.0
Front (6 ports)
1 × USB-C 10Gbps connector
1 × USB 5Gbps header (2 ports)
2 × USB 2.0 headers (3 ports)
Audio
Realtek ALC1220P 7.1 HD Audio CODEC
Headphone impedance sensing
Built-in amplifier
32-bit / 192kHz playback
Audio shielding and premium capacitors

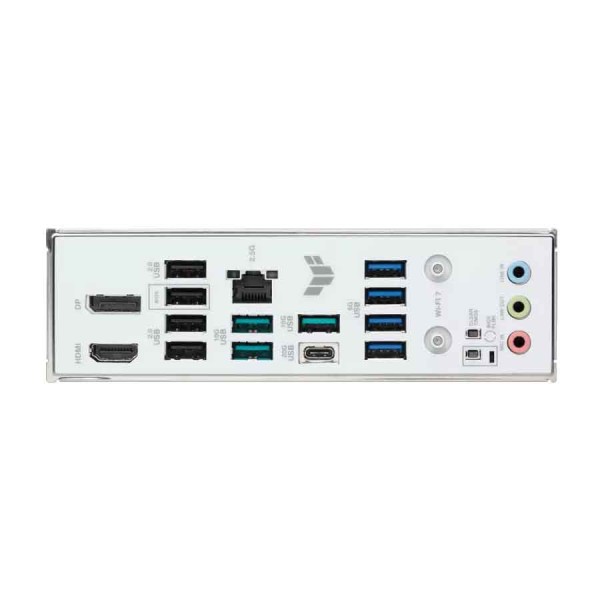

Back Panel I/O
1 × USB-C 20Gbps
3 × USB-A 10Gbps
4 × USB-A 5Gbps
4 × USB 2.0
1 × DisplayPort
1 × HDMI
1 × Wi-Fi module
1 × Realtek 2.5Gb Ethernet
3 × Audio jacks
1 × BIOS FlashBack button
1 × Clear CMOS button
Internal I/O Connectors
Cooling
1 × CPU Fan
1 × CPU OPT Fan
1 × AIO Pump
3 × Chassis Fan
Power
1 × 24-pin ATX
2 × 8-pin CPU Power
Storage
3 × M.2
4 × SATA 6Gb/s
USB
1 × USB-C 10Gbps
1 × USB 5Gbps Header
2 × USB 2.0 Headers
Miscellaneous
3 × Addressable RGB Gen2
1 × Chassis Intrusion
1 × COM Port
1 × Front Panel Audio
1 × Front Panel Header
