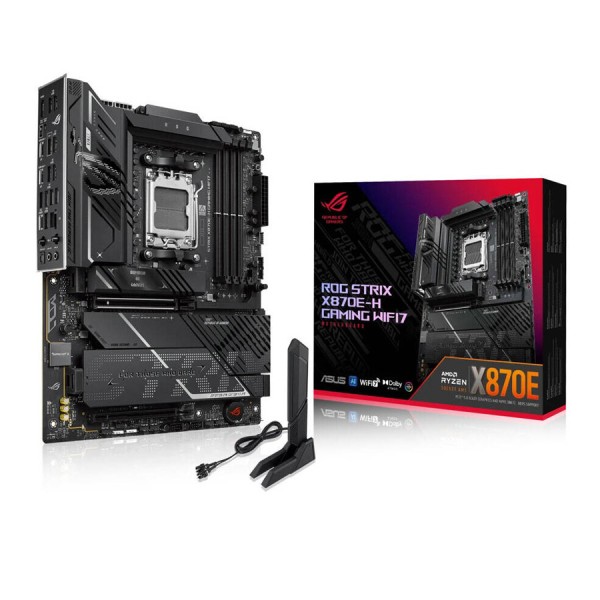

Motherbaord ASUS ROG STRIX X870E‑H GAMING WIFI7 ,AM5 socket ,Dual USB4 Type‑C ,Realtek ALC1220P ,4 M.2 slots -Black

The ASUS ROG STRIX X870E‑H GAMING WIFI7 is a high-end ATX motherboard designed for gamers and content creators. It supports modern AMD Ryzen processors on the AM5 socket, offering high performance, flexible expansion options, fast and stable connectivity, and a wide range of intelligent features for performance, audio, and networking management.

Key Features:

• Supports AMD Ryzen 7000, 8000, and 9000 series CPUs on AM5 socket.

• High-performance X870E chipset for overclocking and stability.

• DDR5 memory support up to 256 GB with speeds up to 8000+ MHz (OC) and AMD EXPO™ profiles.

• Wi‑Fi 7 and Bluetooth 5.4 for fast and reliable networking.

• Dual USB4 Type‑C (40 Gbps) and multiple USB 10 Gbps & 5 Gbps ports.

• 4 M.2 slots and 4 SATA 6 Gb/s ports with RAID support via AMD RAIDXpert2.

• Realtek ALC1220P 7.1 audio with Savitech amp and Dolby support.

• ASUS AI technologies: AI Overclocking, AI Cooling II, AI Networking II, AI Cache Boost.

• Multiple expansion slots supporting PCIe 5.0 and 4.0 for GPU and peripheral compatibility.



Technical Specifications:

Form Factor: ATX
CPU Socket: AM5
Chipset: X870E
Memory Slots: 4 × DDR5 DIMM up to 256 GB
PCIe Slots:

• Ryzen 9000 & 7000: 1 × PCIe 5.0 ×16 (supports x16)

• Ryzen 8000: 1 × PCIe 4.0 ×16 (supports x8/x4 depending on CPU)

• X870E Chipset: 1 × PCIe 4.0 ×16 (supports x4)

Storage:

• 4 × M.2 (2 × PCIe 5.0, 2 × PCIe 4.0)

• 4 × SATA 6 Gb/s

• RAID Support: Ryzen 9000: RAID 0/1/5/10, Ryzen 8000: RAID 0/1, Ryzen 7000: RAID 0/1/10

Networking & Wireless:

• Wi‑Fi 7 (Realtek RTL8922AE) 2x2

• Supports 2.4/5/6 GHz frequency bands, 160 MHz bandwidth

• Bluetooth v5.4

• Realtek 5 Gb Ethernet

Audio:

• Realtek ALC1220P 7.1 Surround Sound

• Internal amplifier for enhanced headphone and speaker audio quality

• Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking

• 120 dB SNR stereo playback, 113 dB SNR recording input

• Advanced audio features: SupremeFX Shielding, Savitech SV3H712 AMP, Premium audio capacitors, Audio cover

Back Panel I/O Ports:

• 2 × USB4 Type‑C (40 Gbps)

• 4 × USB 10 Gbps (3 × Type-A + 1 × Type-C with 30W PD/PPS Fast-charge)

• 6 × USB 5 Gbps (Type-A)

• 2 × USB 2.0 (Type-A)

• 1 × HDMI™

• 1 × Wi‑Fi module

• 1 × Realtek 5 Gb Ethernet

• 2 × Audio jacks

• 1 × Optical S/PDIF out

• 1 × BIOS FlashBack™ button

• 1 × Clear CMOS button
