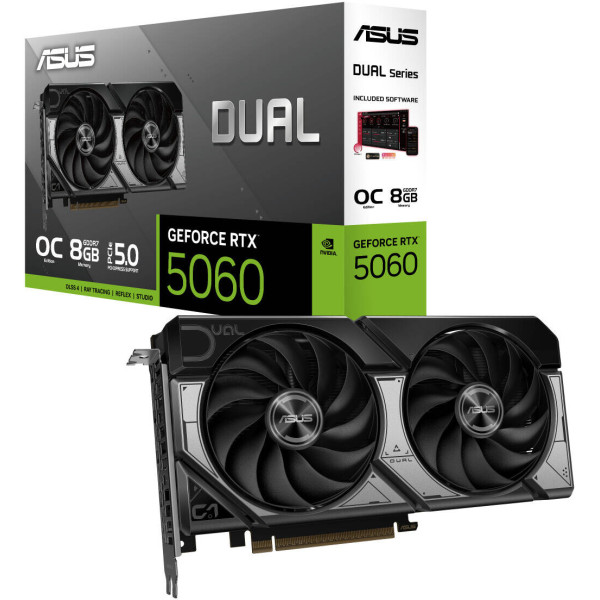

Graphics Card ASUS GeForce RTX 5060 DUAL 8GB OC Gaming

Take your gaming to the next level with the ASUS GeForce RTX 5060 DUAL 8GB OC graphics card. Designed for gamers and content creators alike, this GPU combines cutting-edge NVIDIA Blackwell architecture with efficient cooling technology to deliver smooth gameplay, high frame rates, and stunning visuals. Whether you’re playing AAA titles at high settings or creating 3D content, the RTX 5060 ensures a responsive, immersive experience with AI-enhanced features and silent operation for uninterrupted focus.

Key Features

• GPU Architecture: Built on NVIDIA's Blackwell architecture, delivering enhanced performance and efficiency.

• Overclocked Performance: OC Mode boosts the engine clock to 2565 MHz, while Default Mode operates at 2535 MHz.

• Memory Configuration: Equipped with 8GB of GDDR7 memory, providing high-speed data processing.

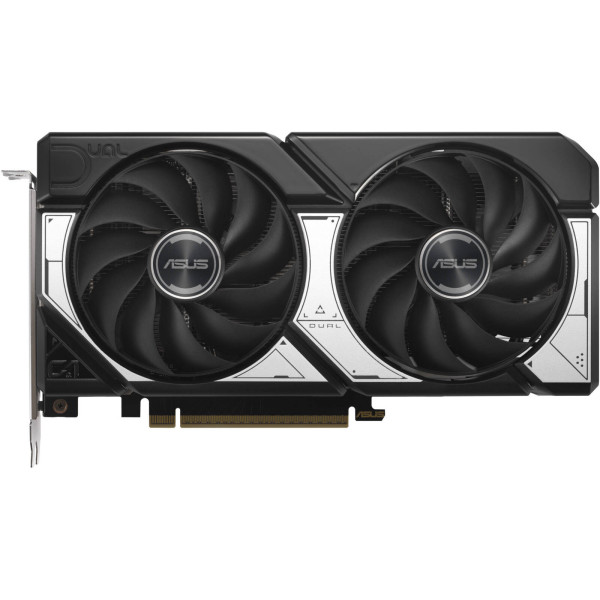

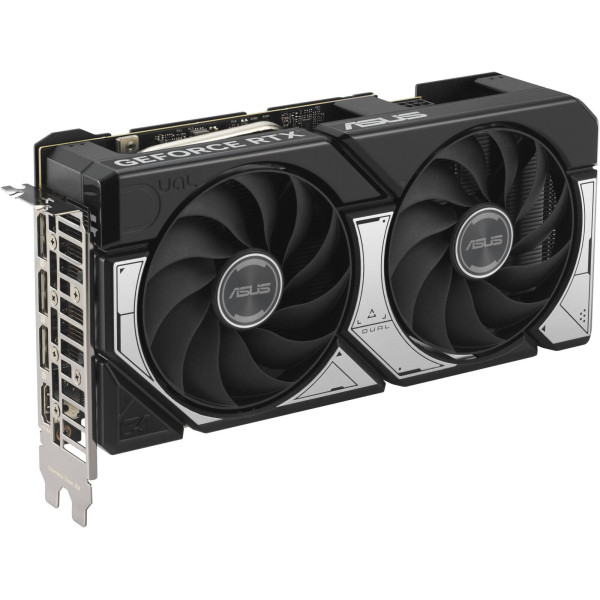

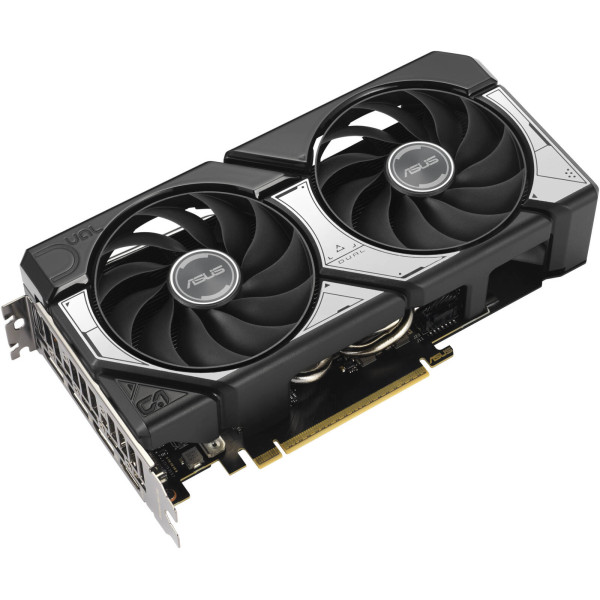

• Cooling System: Features a dual Axial-tech fan design with a 2.5-slot layout, ensuring efficient heat dissipation.

• Connectivity: Offers three DisplayPort 2.1b and one HDMI 2.1b outputs for versatile display options.

• PCIe Interface: Supports PCI Express 5.0 x8, ensuring fast data transfer rates.

• Silent Operation: Incorporates 0dB technology, allowing for silent operation during light gaming sessions.

• AI Performance: Delivers 623 TOPS (Tera Operations Per Second) for AI workloads.

Technical Specifications

• GPU Engine: NVIDIA GeForce RTX 5060

• CUDA Cores: 3840

• Base Clock (Default Mode): 2.28 GHz

• Boost Clock (OC Mode): 2.565 GHz

• Memory Size: 8GB

• Memory Type: GDDR7

• Memory Interface Width: 128-bit

• Memory Speed: 28 Gbps

• PCIe Interface: PCI Express 5.0 x8

• Display Outputs:

  • 3 × DisplayPort 2.1b

  • 1 × HDMI 2.1b

• Slot Design: 2.5-slot

• Dimensions:

  • Length: 228 mm

  • Width: 123 mm

  • Height: 50 mm

• Cooling System: Dual Axial-tech fans with a 2.5-slot design

• Power Connectors: 1 × 8-pin

• Recommended PSU: 550W

• Maximum Display Resolution: 7680 × 4320

• Maximum Number of Displays Supported: 4

• Dual BIOS: Yes, with Performance and Quiet modes

• Software Support: ASUS GPU Tweak III, GeForce Game Ready Driver, Studio Driver
