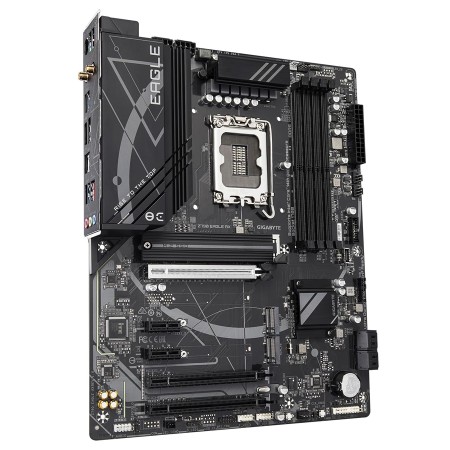

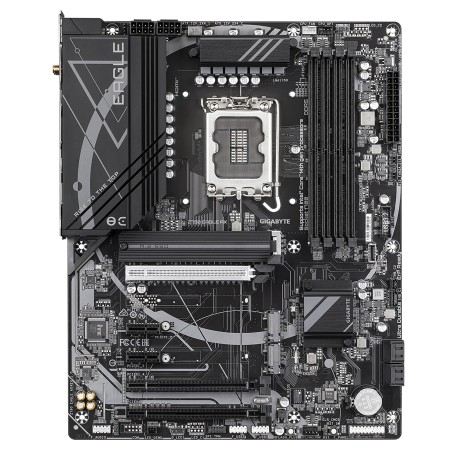

GIGABYTE Z790 EAGLE AX Motherboard - PCIe 5.0 - LGA1700 Socket - DDR5 RAM

The GIGABYTE Z790 EAGLE AX GAMING is a high-performance ATX motherboard designed for gaming systems. It supports Intel 12th, 13th, and 14th Gen processors on the LGA 1700 socket and delivers advanced DDR5, PCIe 5.0, Wi-Fi 6E, and modern connectivity features.

Key Features:

• Supports Intel Core 12th / 13th / 14th Gen CPUs
• DDR5 memory up to 7600MHz (OC)
• 4 DIMM slots, up to 256GB RAM
• PCIe 5.0 x16 for next-gen GPUs
• Multiple M.2 NVMe + SATA RAID support
• Integrated Wi-Fi 6E + Bluetooth 5.3
• 2.5GbE high-speed LAN
• HDMI + DisplayPort support
• 7.1-channel Realtek HD Audio
• USB-C + USB 3.2 Gen2 connectivity
• Q-Flash Plus BIOS update support

Technical Specifications:

CPU

• Socket: LGA 1700
• Supports Intel 12th / 13th / 14th Gen Core + Pentium Gold + Celeron
• L3 cache varies by CPU

Chipset

• Intel Z790 Express Chipset

Memory

• 4× DDR5 DIMM slots (Dual Channel)
• Max capacity: 256GB
• XMP support
• Up to:
  • 7600MHz (i9/i7 OC)
  • 4800MHz (i3/i5 & 12th Gen)

Graphics

• HDMI 2.1 up to 4K@60Hz
• DisplayPort 1.2 up to 4K@60Hz
• Depends on CPU iGPU

Audio

• Realtek HD Audio Codec
• 2/4/5.1/7.1-channel
• S/PDIF Out support

Networking

• Realtek 2.5GbE LAN
• Wi-Fi 6E (Intel AX211 or Realtek variant depending on revision)
• Bluetooth 5.3
• 2.4 / 5 / 6 GHz support

Expansion Slots

• 1× PCIe 5.0 x16 (GPU)
• PCIe 4.0 x4 slot
• Multiple PCIe 3.0 x1 slots

Storage

• 3× M.2 slots (PCIe 4.0 / SATA support depending on slot)
• 4× SATA 6Gb/s ports
• RAID 0 / 1 / 5 / 10 support

USB

• USB-C (Gen2 rear + Gen1 internal header)
• USB 3.2 Gen2 Type-A
• Multiple USB 3.2 Gen1 ports
• USB 2.0 headers

Internal I/O

• 24-pin ATX + dual 8-pin CPU power
• Multiple fan headers + pump support
• RGB headers
• TPM header
• Q-Flash Plus button

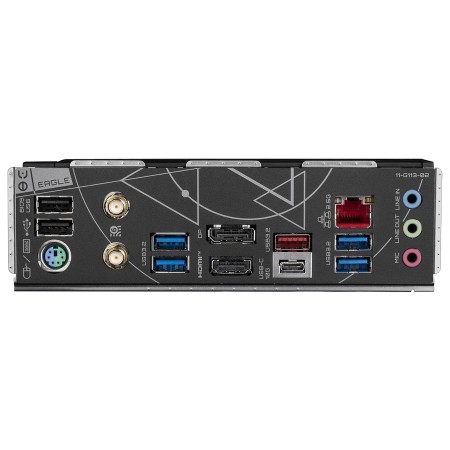

Rear I/O

• USB-C Gen2
• USB 3.2 Gen2 + Gen1
• USB 2.0
• HDMI + DisplayPort
• RJ-45 LAN
• Audio jacks (7.1)
• Wi-Fi antenna connectors

BIOS & Features

• AMI UEFI BIOS
• Q-Flash / Q-Flash Plus
• GIGABYTE Control Center
• Smart Backup support

Form Factor

• ATX
• 30.5 × 24.4 cm
