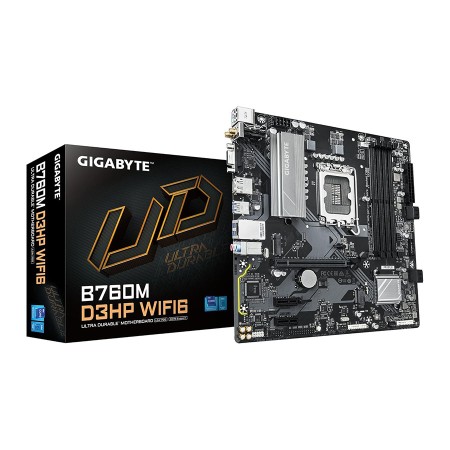

GIGABYTE B760M D3HP WIFI6 Motherboard - PCIe 4.0 - LGA1700 Socket - DDR5 RAM

The GIGABYTE B760M D3HP WIFI6 motherboard offers an excellent balance of performance and value, featuring modern technologies like DDR5 and Wi-Fi 6, making it ideal for gaming and everyday use

Key Features:

• Supports Intel 12th, 13th, and 14th Gen processors (Core / Pentium Gold / Celeron)
• Up to 192GB DDR5 memory support with speeds up to 5600 MT/s
• Built-in Wi-Fi 6 and Bluetooth 5.3
• PCIe 4.0 x16 slot for modern GPUs
• Dual M.2 PCIe 4.0 slots with RAID support
• Triple display support via HDMI, DisplayPort, and VGA
• Q-Flash and Q-Flash Plus for BIOS updates
• Smart Fan cooling and monitoring system



Technical Specifications:

• CPU
  • LGA1700 socket
  • Supports Intel Core 12th / 13th / 14th Gen
  • L3 cache varies by CPU
• Chipset
  • Intel B760
• Memory
  • 4× DDR5 DIMM up to 192GB
  • Dual Channel
  • XMP support
  • ECC and Non-ECC support
• Graphics
  • HDMI up to 4K 60Hz
  • DisplayPort up to 4K
  • VGA D-Sub
  • Up to 3 displays
• Audio
  • Realtek HD Audio
  • 7.1-channel + S/PDIF
• LAN
  • Realtek 1Gb Ethernet
• Wireless
  • Wi-Fi 6 (2.4 / 5 GHz)
  • Bluetooth 5.3
• Expansion Slots
  • PCIe 4.0 x16
  • 2× PCIe 3.0 x1
• Storage
  • 2× M.2 PCIe 4.0
  • 4× SATA 6Gb/s
  • RAID 0 / 1 / 5 / 10 support
• USB
  • USB Type-C internal
  • USB 3.2 Gen 1
  • USB 2.0
• Back Panel I/O
  • HDMI DisplayPort VGA
  • USB 3.2 USB 2.0
  • RJ-45 LAN
  • Audio jacks
  • PS/2
• Internal I/O Connectors
  • 24-pin and 8-pin power
  • Fan headers
  • RGB ARGB headers
  • USB headers
  • TPM Serial Parallel
• BIOS
  • AMI UEFI BIOS
  • Q-Flash Plus support
• Operating System
  • Windows 11 10 64-bit
• Form Factor
  • Micro ATX 24.4 x 24.4 cm
