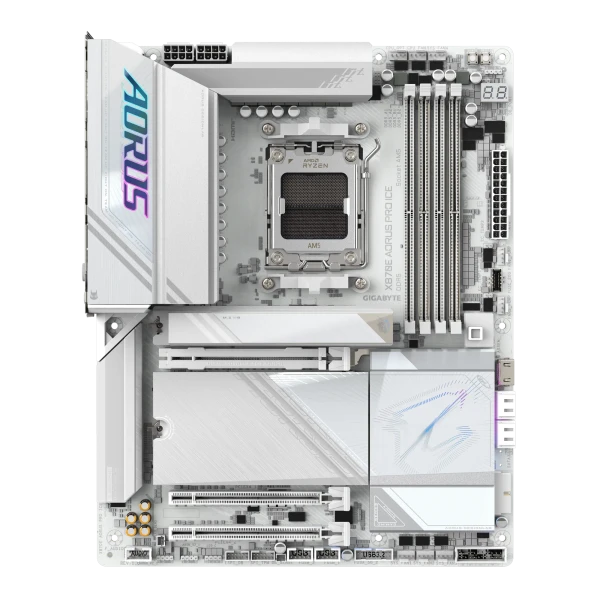

Gaming Motherboard GIGABYTE X870E AORUS PRO ICE DDR5 Wi-Fi 7 AM5 – White Edition

The GIGABYTE X870E AORUS PRO ICE is a high-end ATX motherboard designed for AMD Ryzen™ 7000 and 8000 Series processors on the AM5 platform. Featuring next-generation connectivity with Wi-Fi 7 and Bluetooth 5.3, advanced DDR5 memory support, PCIe 5.0, and a sleek white Ice-themed design, this board offers powerful performance, robust networking, and superior thermal management for gamers and professionals seeking both style and substance.

Key Features:

• Supports AMD Ryzen™ 8000 and 7000 Series processors
• Dual channel DDR5 memory support up to 8000+ MHz (OC)
• PCIe 5.0 x16 reinforced slot
• Wi-Fi 7 (802.11be) and Bluetooth 5.3
• 2.5GbE LAN for high-speed wired networking
• Dual M.2 slots with PCIe 5.0/4.0 and thermal guards
• USB 3.2 Gen 2x2 Type-C and multiple USB 3.2 Gen 2 ports
• Advanced VRM heatsinks and cooling design
• Ice-themed white aesthetic with RGB FUSION support
• Q-Flash Plus for BIOS update without CPU or RAM

Technical Specifications:

• Chipset: AMD X870E
• CPU Socket: AM5
• Supported Processors: AMD Ryzen™ 8000 / 7000 Series (with Radeon Graphics)
• Form Factor: ATX

• Memory Support:
– 4 x DDR5 DIMM slots
– Dual channel memory architecture
– Up to 192GB capacity
– ECC and Non-ECC unbuffered DIMMs supported
– Supports AMD EXPO and Intel XMP profiles
– Memory speeds up to 8000+ MHz (OC)

• Expansion Slots:
– 1 x PCIe 5.0 x16 slot (reinforced)
– 1 x PCIe 4.0 x1 slot

• Storage:
– 2 x M.2 slots (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4)
– 4 x SATA 6Gb/s ports

• Graphics Outputs:
– 1 x HDMI 2.1
– 1 x DisplayPort 1.4

• Networking:
– Intel® Wi-Fi 7 (802.11be)
– Intel® 2.5GbE LAN
– Bluetooth 5.3

• Audio:
– 8-Channel High Definition Audio
– Realtek® Audio Codec

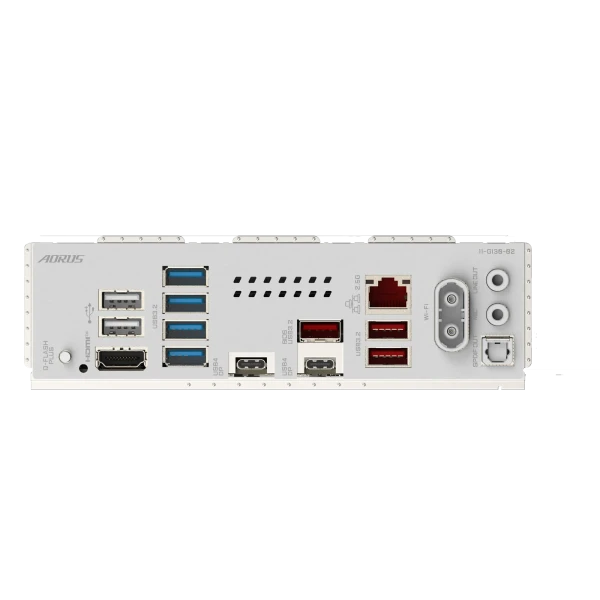

• USB Ports:
– Rear I/O:
• 1 x USB 3.2 Gen 2x2 Type-C (20Gbps)
• 4 x USB 3.2 Gen 2 Type-A
• 4 x USB 2.0
– Internal headers:
• USB 3.2 Gen 1 and USB 2.0 for additional ports

• Internal Connectors:
– 2 x Addressable RGB headers
– 2 x RGB LED headers
– 4 x Fan headers
– TPM header, front panel audio, Q-Flash Plus button

• BIOS:
– 256Mb UEFI AMI BIOS
– Q-Flash Plus support

• Operating Systems Supported:
– Windows 11 64-bit
– Windows 10 64-bit

• Included Accessories:

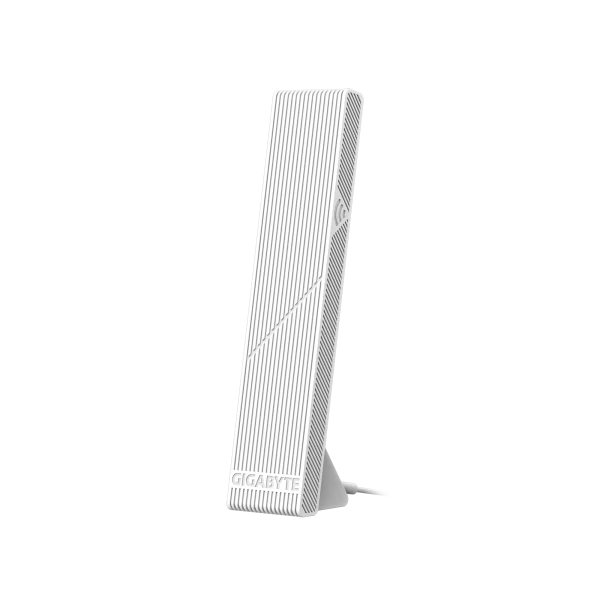

– Wi-Fi antenna
– SATA cables
– User manual

This motherboard combines exceptional performance, advanced connectivity, and elegant aesthetics, making it ideal for high-end gaming and professional content creation
