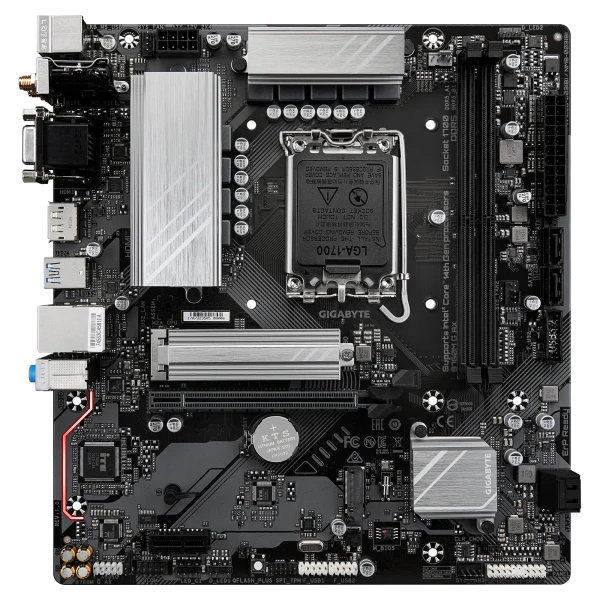

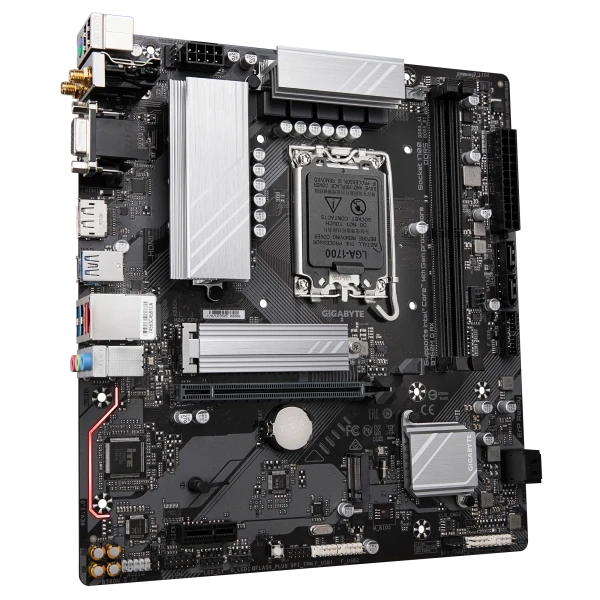

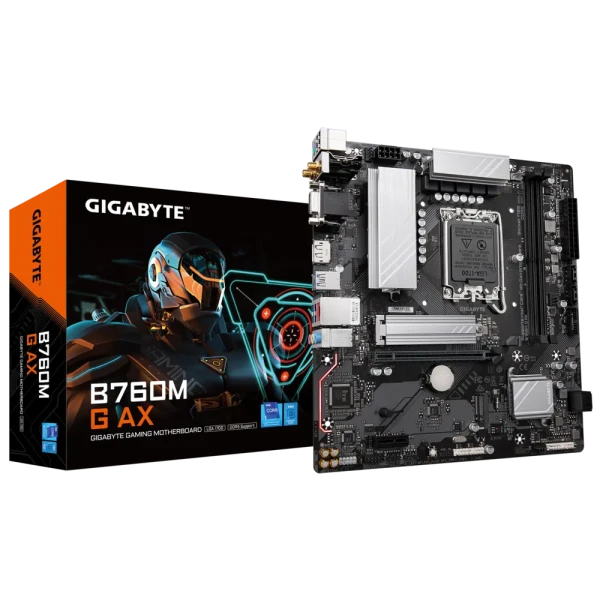

Gaming Motherboard GIGABYTE B760M G AX - DDR5 - WiFi 6 - LGA 1700 - Micro-ATX

The GIGABYTE B760M G AX is a high-performance micro-ATX motherboard engineered for gamers and creators using Intel’s 12th, 13th, and 14th Gen Core processors. Designed with support for DDR5 memory, PCIe 4.0 graphics, and Wi-Fi 6, this motherboard delivers a powerful platform with next-gen features, enhanced connectivity, and optimized thermal performance — perfect for compact gaming builds without compromising capabilities.

Key Features:

• Supports 12th, 13th, and 14th Gen Intel® Core™ processors
• DDR5 memory support up to 7600+ MHz (OC)
• Intel® Wi-Fi 6 and 2.5GbE LAN for fast, stable networking
• 1 x PCIe 4.0 x16 reinforced graphics slot
• Dual M.2 slots with thermal protection
• USB-C 10Gbps and multiple USB 3.2 Gen 1/2 ports
• Smart Fan 6 with multiple temperature sensors
• RGB FUSION with ARGB and RGB LED headers
• Q-Flash Plus for BIOS update without CPU

Technical Specifications:

• Chipset: Intel® B760
• CPU Socket: LGA 1700
• Supported CPUs:
– 14th/13th/12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors

• Form Factor: Micro ATX (24.4cm x 24.4cm)

• Memory Support:
– 2 x DDR5 DIMM slots
– Dual channel memory architecture
– Up to 96GB system memory
– Supports XMP and memory overclocking up to 7600+ MHz

• Expansion Slots:
– 1 x PCIe 4.0 x16 slot (with metal shielding)
– 1 x PCIe 3.0 x1 slot

• Storage:
– 2 x M.2 slots (PCIe 4.0 x4)
– 4 x SATA 6Gb/s ports

• Graphics Outputs:
– 1 x HDMI 2.1
– 1 x DisplayPort 1.2

• Networking:
– Intel® 2.5GbE LAN
– Intel® Wi-Fi 6 802.11ax
– Bluetooth 5.2

• Audio:
– 8-channel High Definition Audio
– Realtek® Audio Codec

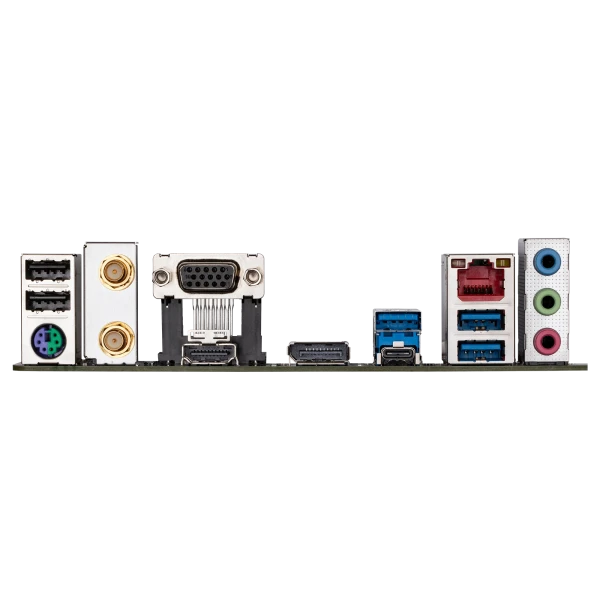

• USB Ports:
– Rear I/O:
• 1 x USB-C 10Gbps
• 3 x USB 3.2 Gen 1
• 2 x USB 2.0
– Internal headers support additional USB 3.2 and USB 2.0 ports

• Internal I/O:
– 2 x Addressable RGB headers
– 2 x RGB LED headers
– 4 x Fan headers
– Front panel audio, TPM, system panel connectors
– Q-Flash Plus button

• BIOS:
– 256Mb UEFI AMI BIOS
– Q-Flash Plus support

• Operating System:
– Windows 11 64-bit
– Windows 10 64-bit

• Included Accessories:
– Wi-Fi antenna
– SATA cables
– User manual

This motherboard is ideal for gamers and PC builders looking for next-gen performance, connectivity, and stability in a compact and cost-effective design.
