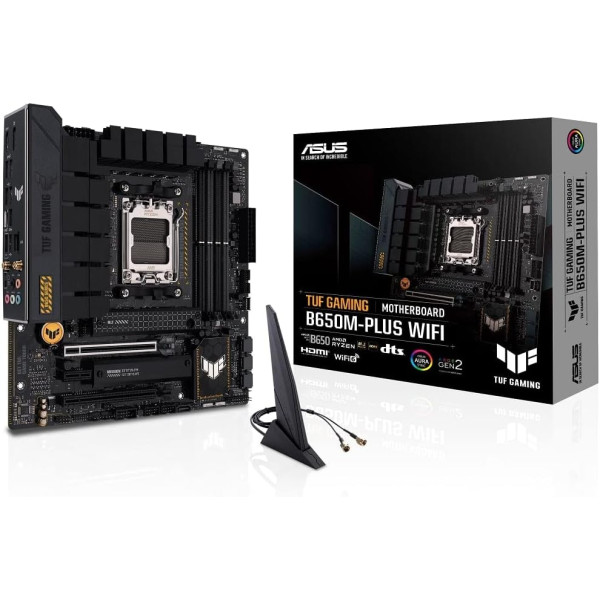

ASUS MOTHERBOARD TUF GAMING B650M-PLUS WiFi 6 DDR5 ARGB GEN2 AURA - AM5

The ASUS TUF GAMING B650M-PLUS WiFi is a micro-ATX motherboard built for durability, stability, and high performance. Designed for AMD Ryzen processors on the AM5 socket, it features support for next-gen DDR5 memory, PCIe 5.0 readiness, WiFi 6 connectivity, and advanced cooling and power solutions—all wrapped in the signature rugged TUF aesthetic with customizable AURA Sync RGB lighting.

Key Features:

• Supports AMD Ryzen 7000 Series processors on AM5 socket

• Dual-channel DDR5 memory support for next-gen speed

• WiFi 6 and 2.5Gb Ethernet for fast and stable connectivity

• PCIe 5.0 x16 slot for future-ready GPUs

• Comprehensive cooling and power design with military-grade components

• AURA Sync with Gen 2 ARGB headers for RGB customization

Technical Specifications:

Model:
ASUS TUF GAMING B650M-PLUS WiFi
Part Number: 90MB1BF0-M0EAY0

Form Factor:
Micro-ATX

CPU Support:
AMD Ryzen 7000 Series processors
Socket AM5

Chipset:
AMD B650

Memory Support:
4 × DIMM slots, dual-channel
DDR5 memory up to 128GB total capacity
Supports up to 6400+ MT/s (OC)

Graphics Interface:
1 × PCIe 5.0 x16 slot
1 × PCIe 3.0 x16 slot (max x4 mode)

Expansion Slots:
1 × PCIe 5.0 x16
1 × PCIe 3.0 x16
1 × PCIe 3.0 x1

Storage:
2 × M.2 slots (1 × PCIe 5.0 x4, 1 × PCIe 4.0 x4)
4 × SATA 6Gb/s ports
RAID 0/1/10 support

Networking:
WiFi 6 (802.11ax)
Bluetooth v5.2
Realtek 2.5Gb Ethernet (LAN)

Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
TUF Gaming audio cover and premium Japanese audio capacitors

USB Ports:
Rear I/O:

• 1 × USB 3.2 Gen 2x2 Type-C

• 2 × USB 3.2 Gen 2 Type-A

• 4 × USB 3.2 Gen 1 Type-A

• 2 × USB 2.0

Internal headers:

• Front USB 3.2 Gen 1

• USB 2.0 header (supports 4 ports total)

Video Outputs:
1 × HDMI 2.1
1 × DisplayPort 1.4
(available only when using an APU)

Internal Connectors:

• 2 × M.2 slots (with heatsinks)

• 1 × 24-pin ATX power connector

• 1 × 8-pin + 4-pin CPU power connectors

• 1 × USB 3.2 Gen 1 header

• 1 × USB 2.0 header

• 1 × Front panel audio connector

• 3 × Addressable Gen 2 ARGB headers

• 2 × RGB headers

• Multiple fan headers

Cooling:
VRM heatsinks and high-quality thermal pads
Multiple 4-pin PWM fan headers
AI Cooling support

Lighting:
AURA Sync RGB
3 × Addressable Gen 2 headers
2 × Standard RGB headers

Durability:
TUF components (military-grade)
SafeSlot Core+ and ESD Guards

Operating System Support:
Windows 11 / Windows 10 64-bit

A rock-solid foundation for building a powerful AMD Ryzen-based gaming PC with future-ready standards, high-speed networking, and customizable aesthetics
