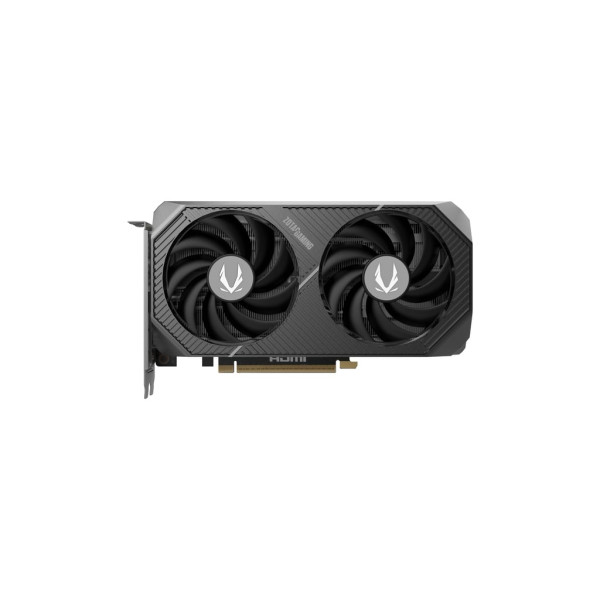

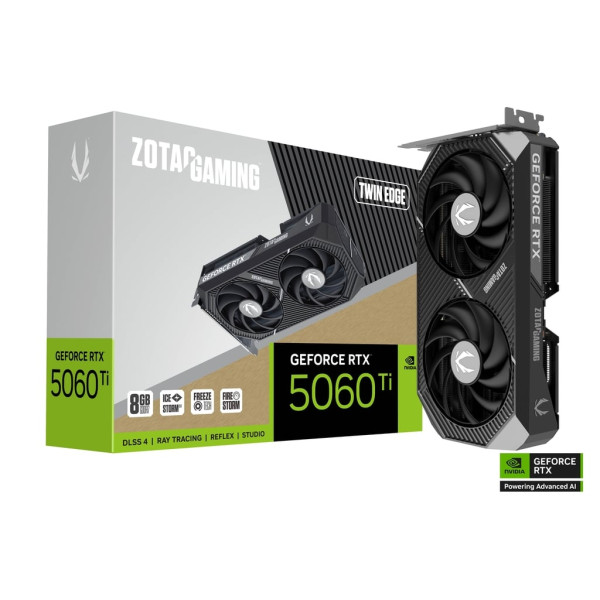

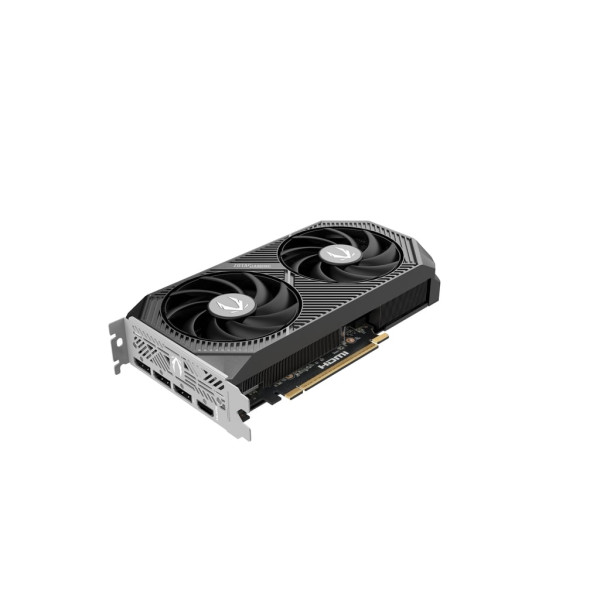

Discover the performance, specs, and features of the ZOTAC GAMING ZT-B50610E-10M Twin Edge NVIDIA GeForce RTX 5060 Ti 8GB graphics card. A perfect blend of compact design, DLSS 4, and next-gen performance for gamers and creators.
Key Features:
Model: ZT-B50610E-10M
GPU: NVIDIA GeForce RTX 5060 Ti
Architecture: NVIDIA Blackwell 2.0
CUDA Cores: 4608
Memory: 8GB GDDR7
Memory Bus: 128-bit
Memory Bandwidth: 448.0 GB/s
Base Clock: 2407 MHz
Boost Clock: 2572 MHz
Memory Clock: 1750 MHz (28 Gbps effective)
PCIe Interface: PCIe 5.0 x8
Power Consumption: 180W
Recommended PSU: 600W
Power Connector: 1x 8-pin
Cooling Solution: IceStorm 2.0 with dual 90mm BladeLink fans
Form Factor: Dual-slot
Dimensions (L x H x W): 220.5 mm x 120.25 mm x 41.6 mm
Warranty: 2 years
Technical Specifications:
GPU Name: GB206
GPU Variant: GB206-300-A1
Process Technology: TSMC 4N FinFET, 5 nm
Transistor Count: 21.9 billion
Die Size: 181 mm²
SM Count: 36
Tensor Cores: 144
RT Cores: 36
L1 Cache: 128 KB per SM
L2 Cache: 32 MB
Pixel Rate: 123.5 GPixel/s
Texture Rate: 370.4 GTexel/s
FP32 Performance: 23.70 TFLOPS
FP16 Performance: 23.70 TFLOPS
FP64 Performance: 370.4 GFLOPS

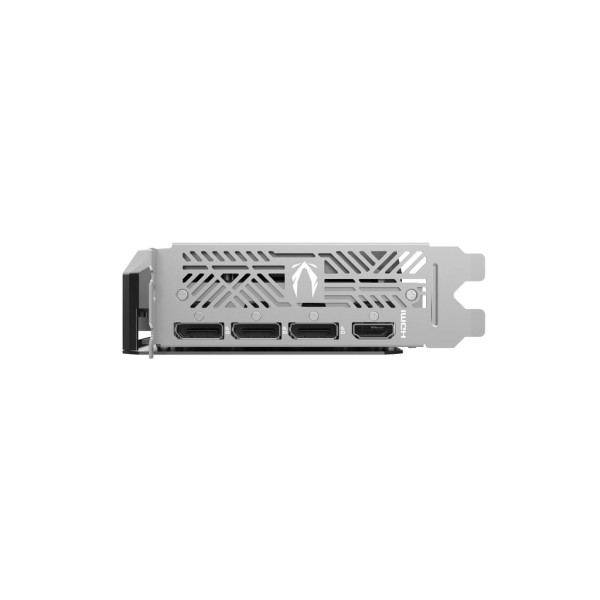

Display Outputs:
HDMI: 1x HDMI 2.1b
DisplayPort: 3x DisplayPort 2.1b with UHBR20
Maximum Resolution Support: 4K at 480Hz or 8K at 165Hz with DSC
Multi-Display Capability: Up to 4 monitors
HDCP Support: 2.3
Software and API Support:
DirectX: 12 Ultimate
Vulkan: 1.4
OpenGL: 4.6
NVIDIA Technologies Supported:
DLSS 4
NVIDIA Broadcast
NVIDIA G-SYNC
NVIDIA GeForce Experience
NVIDIA Studio Drivers
FireStorm Utility
Cooling and Design Features:
Cooling System: IceStorm 2.0 with dual 90mm BladeLink fans
Fan Stop Technology: FREEZE Fan Stop
Lighting: White LED lighting
Backplate: Metal backplate for added durability
Form Factor: Compact dual-fan design suitable for small form factor builds
Operating System Compatibility:
Supported OS: Windows 10 (version 1809 or later) and Windows 11 (64-bit)
