ZOTAC GAMING GEFORCE RTX 5070Ti 16GB OC GAMING - 3xFAN BLACK

If you're searching for a high-performance graphics card that combines cutting-edge technology, advanced cooling, and massive memory, look no further than the ZOTAC GAMING ZT-B50710J2-10P SOLID CORE OC GeForce RTX 5070 Ti 16GB GDDR7. Engineered for serious gamers and content creators, this card offers ultra-smooth performance, AI-enhanced visuals, and future-ready features.

Key Features:

• GPU: NVIDIA GeForce RTX 5070 Ti (Blackwell Architecture)

• CUDA Cores: 8960

• Memory: 16GB GDDR7

• Memory Bus: 256-bit

• Engine Clock: 2482 MHz

• Memory Clock: 28 Gbps

• PCIe Interface: PCIe 5.0 x16

• Power Consumption: 300W

• Recommended PSU: 750W

• Cooling: IceStorm 3.0 with 3 BladeLink Fans

• RGB Lighting: SPECTRA 2.0

Technical Specifications

Graphics Processor

• GPU Model: NVIDIA GeForce RTX 5070 Ti (GB203-300-A1)

• Architecture: Blackwell 2.0

• Process Technology: TSMC 4N FinFET, 5 nm

• Transistor Count: 45.6 billion

• Die Size: 378 mm²

• Boost Clock: 2482 MHz

• CUDA Cores: 8960

• Tensor Cores: 280

• RT Cores: 70

• L1 Cache: 128 KB per SM

• L2 Cache: 48 MB

Memory

• Capacity: 16 GB

• Type: GDDR7

• Bus Width: 256-bit

• Memory Clock: 28 Gbps effective

• Bandwidth: 896 GB

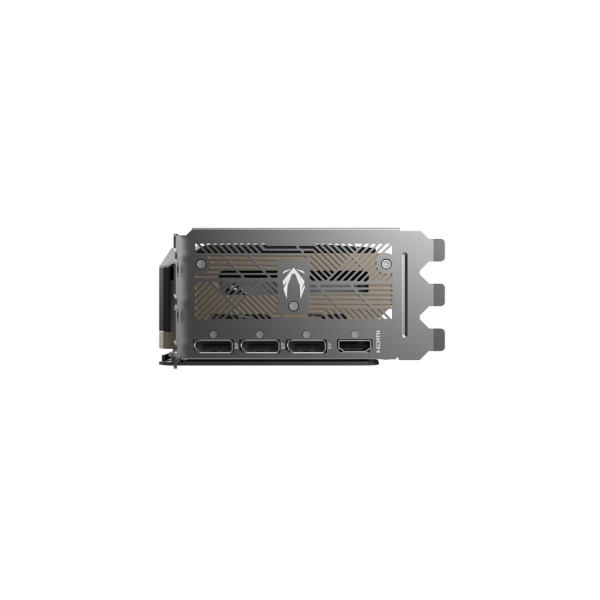

Display Outputs

• DisplayPort: 3 × DisplayPort 2.1b (UHBR20)

  • Supports up to 4K at 480Hz or 8K at 165Hz with DSC

• HDMI: 1 × HDMI 2.1b

  • Supports 4K at 120Hz HDR, 8K at 60Hz HDR, and Variable Refresh Rate

• HDCP Support: 2.3

• Multi-Display Capability: Up to 4 displays

Power Requirements

• Power Consumption: 300W

• Recommended PSU: 750W

• Power Input: 1 × 12V-2x6 connector

Cooling & Design

• Cooling Solution: IceStorm 3.0

  • Includes a larger vapor chamber and BladeLink fans

• Slot Size: 2.5-slot

• Form Factor: Full-Height/Full-Length (FH/FL)

• Dimensions: 303.5 mm (L) × 115.8 mm (H) × 55.7 mm (D)

• Weight: Approximately 3 kg

Software & Features

• DirectX Version: 12 Ultimate

• OpenGL Version: 4.6

• Operating System Support: Windows 10/11 64-bit (v1809 or later)

• Included Software: FireStorm Utility

• Lighting: SPECTRA 2.0 RGB with SPECTRA LINK

• Additional Features:

  • FREEZE Fan Stop

  • Active Fan Control

  • Dual BIOS

  • Reinforced Metal Mid-Frame

  • Metal Backplate

  • GPU Support Bracket

  • 12V-2x6 Safety Light

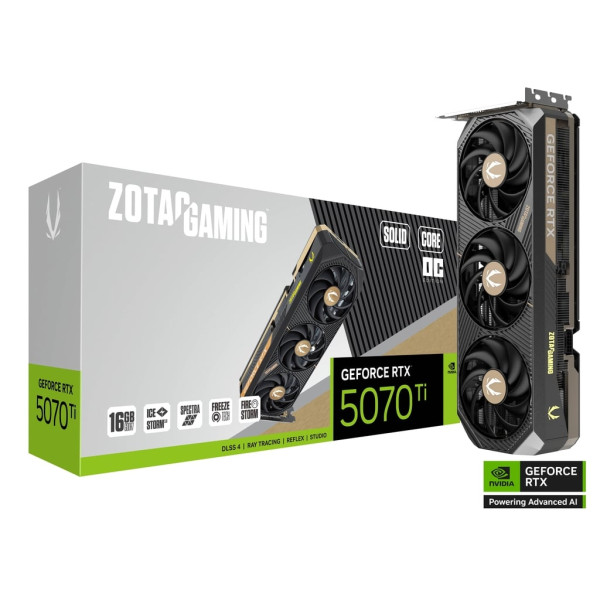

Package Contents

• ZOTAC GAMING GeForce RTX 5070 Ti SOLID CORE OC Graphics Card

• User Manual

• 2 × 8-pin to 16-pin power cables

• GPU Support Stand

• SPECTRA LINK cable
