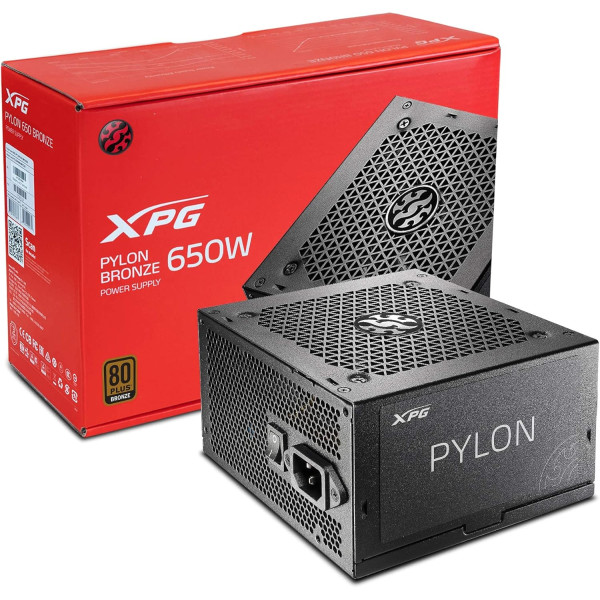

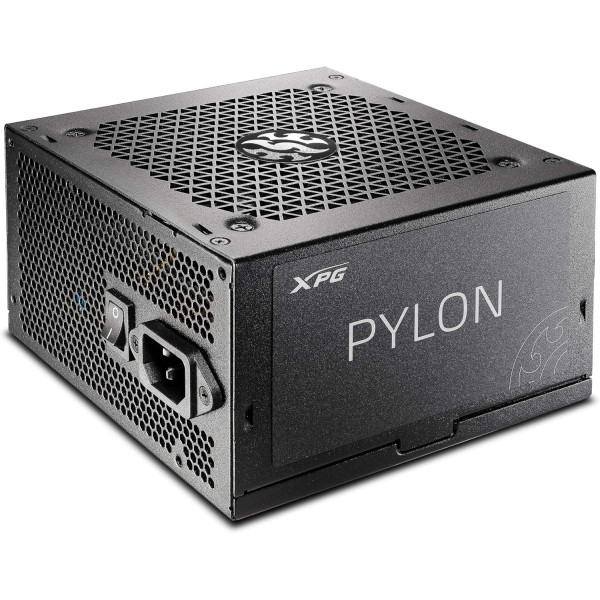

XPG PYLON BRONZE 650W POWER SUPPLY 80+ BRONZE

Key Features:

• 80 PLUS Bronze Certified for high efficiency

• Continuous 650W output power

• High-quality 105°C capacitors

• DC-to-DC circuit design for stable voltage regulation

• Silent 120mm fluid dynamic bearing (FDB) fan

• Comprehensive protection mechanisms (OPP, OVP, SCP, OCP, UVP, OTP)

• Intel ATX12V v2.4 compatible

Technical Specifications:

Model Name:
XPG PYLON 650W

Certification:
80 PLUS Bronze

Power Output:
650W continuous power at 40°C

Form Factor:
ATX

Input Voltage:
100V – 240V AC

Input Current:
10A – 5A

Input Frequency:
47Hz – 63Hz

Efficiency:
Up to 89%

PFC:
Active Power Factor Correction (PFC) >0.9

Cooling:
120mm Fluid Dynamic Bearing (FDB) fan

MTBF:

100,000 hours

Operating Temperature:
0°C – 40°C

Protection Features:

• Over Power Protection (OPP)

• Over Voltage Protection (OVP)

• Short Circuit Protection (SCP)

• Over Current Protection (OCP)

• Under Voltage Protection (UVP)

• Over Temperature Protection (OTP)

Regulatory Compliance:
CE, FCC, CB, TUV, EAC, RCM, cTUVus

Connectors:

• 1 x 24-Pin Main Connector

• 1 x 8-Pin (4+4) EPS/CPU Connector

• 2 x 8-Pin (6+2) PCI-E Connectors

• 7 x SATA Connectors

• 4 x Molex Connectors

• 1 x Floppy Connector

Cable Type:
Non-modular

Dimensions:
150 x 140 x 86 mm (W x L x H)
