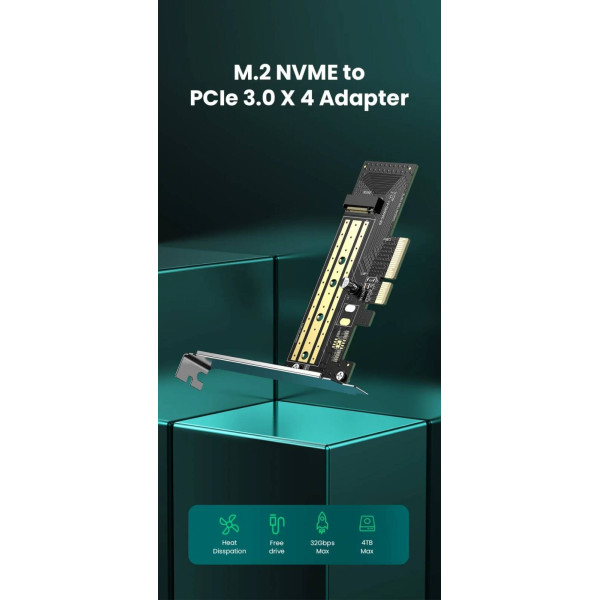

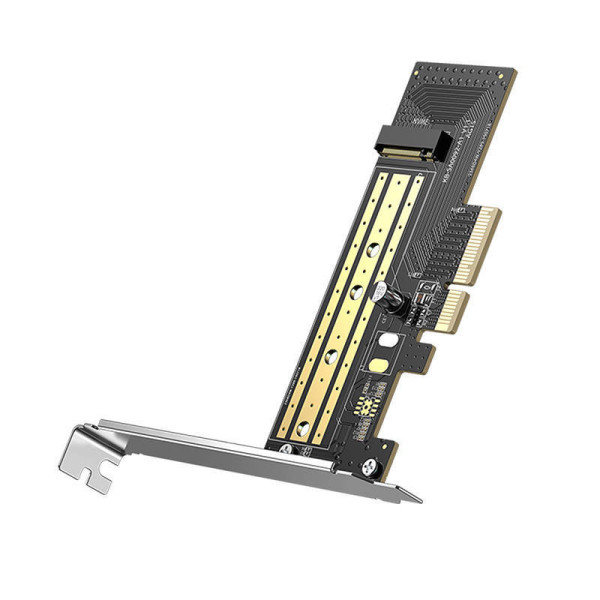

UGREEN PCIe 3.0 x4 to M.2 NVME Adapter

Product Overview

The UGREEN PCIe 3.0 x4 to M.2 NVMe Adapter is designed to seamlessly integrate M-Key M.2 NVMe SSDs into your desktop's PCIe slot, offering a cost-effective solution to boost storage performance without replacing your motherboard. Ideal for gamers, professionals, and enthusiasts seeking to upgrade their system's storage capabilities.

 Technical Specifications:

• Interface: PCIe 3.0 x4 (compatible with x4, x8, x16 slots)

• SSD Compatibility: M-Key M.2 NVMe SSDs

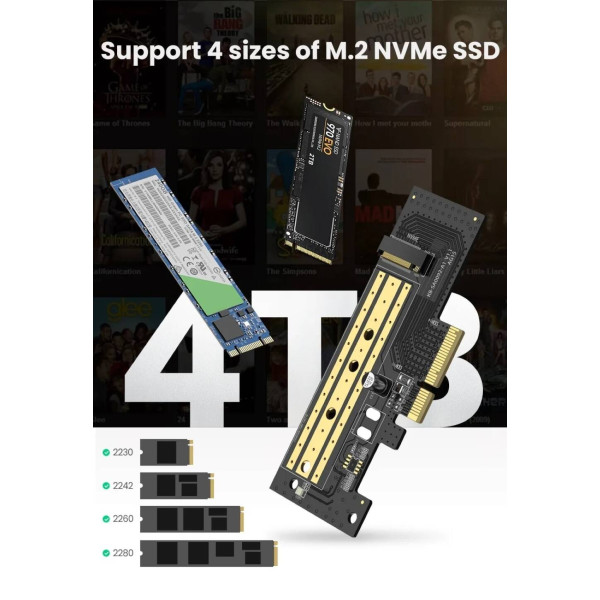

• Supported SSD Sizes: 2230, 2242, 2260, 2280

• Data Transfer Rate: Up to 32Gbps (PCIe Gen 3.0 x4)

• Operating Systems Supported: Windows, Linux, macOS

• No Driver Installation Required: Plug-and-play functionality

• Protection Features: Overcurrent, overvoltage, short circuit, and EMI protection

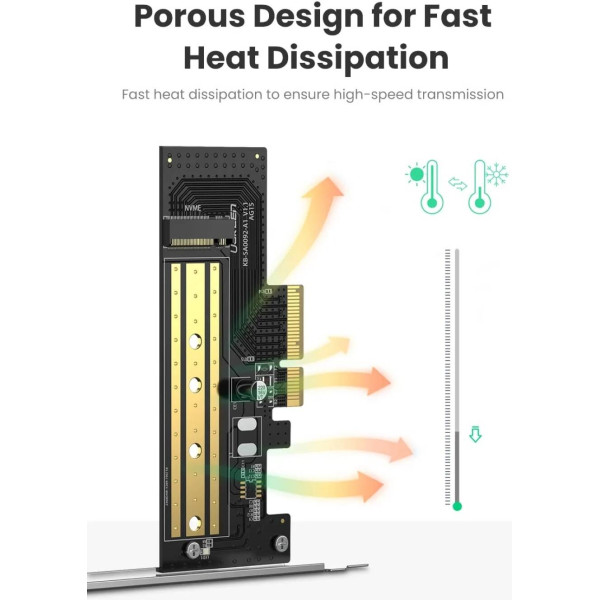

• Cooling Design: Porous PCB for efficient heat dissipation

• Dimensions: 116.8mm x 47mm

• Included Accessories: Full-profile and low-profile brackets, screws, screwdriver

 Compatibility & Performance

• Motherboard Compatibility: PCIe 3.0/2.0/1.0 x4, x8, x16 slots

• SSD Compatibility: Supports M-Key M.2 NVMe SSDs up to 4TB

• Not Compatible With: M.2 SATA (B-Key) SSDs

• Performance: Achieves data transfer speeds up to 32Gbps, enhancing system responsiveness and load times
