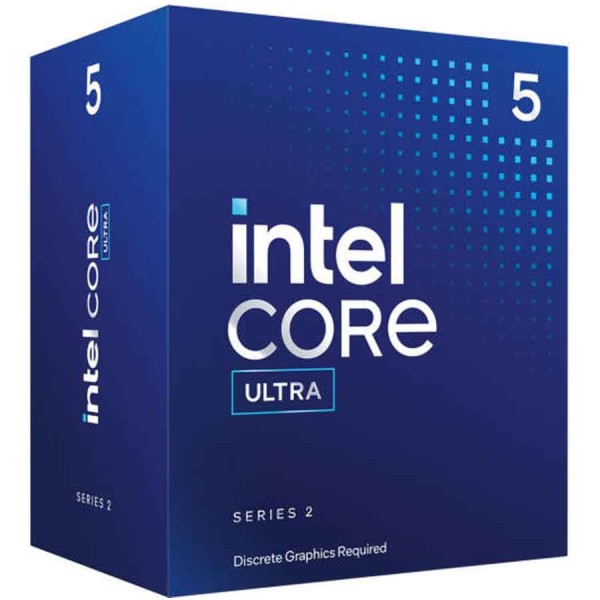

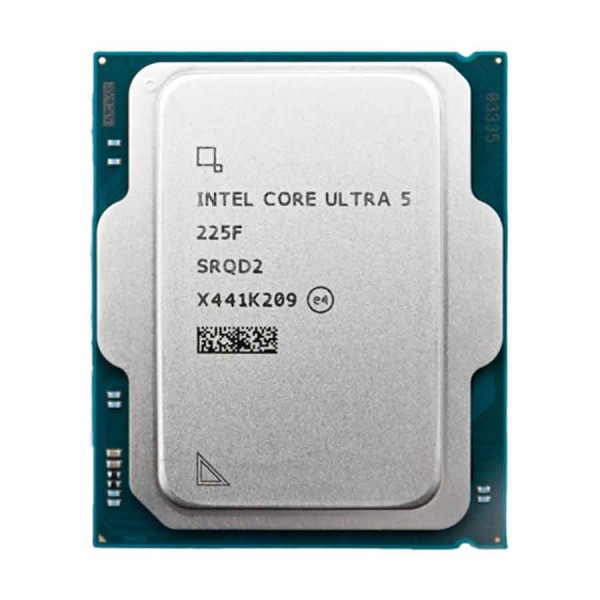

The Intel Core Ultra 5 225F is part of the Intel Core Ultra Series 2 lineup, built on the Arrow Lake architecture. It delivers a strong balance of performance and efficiency with modern AI capabilities, making it ideal for mid-range gaming and productivity builds.
Key Features:
• Balanced performance with hybrid architecture 6 performance cores + 4 efficient cores
• Up to 4.9GHz boost clock for strong performance
• Integrated AI acceleration via Intel AI Boost NPU
• Support for DDR5, PCIe 5.0, and Thunderbolt 4
• Efficient power consumption with 65W base power
• AI frameworks support including OpenVINO, ONNX, and DirectML
• Advanced Intel technologies like Thread Director and Turbo Boost 2.0
• Enhanced security features for system protection
Technical Specifications:
• General:
• Segment: Desktop
• Series: Intel Core Ultra Processors Series 2
• Processor Number: 225F
• Launch Date: Q1 2025
• Lithography: TSMC N3B
• Performance:
• Cores: 10 (6 Performance + 4 Efficient)
• Threads: 10
• Max Turbo Frequency: 4.9GHz
• Performance Cores: 4.9GHz max and 3.3GHz base
• Efficient Cores: 4.4GHz max and 2.7GHz base
• Cache: 20MB Smart Cache and 22MB L2
• Power:
• Base Power: 65W
• Max Turbo Power: 121W
• AI Capabilities:
• CPU AI Performance: up to 19 TOPS
• NPU: Intel AI Boost
• NPU Performance: up to 13 TOPS
• Frameworks: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
• Memory:
• Max Capacity: 256GB
• Type: DDR5 up to 6400MT/s
• Channels: 2
• ECC: Not supported
• Graphics:
• Integrated GPU: Not available
• Expansion:
• PCIe: Gen 5.0 and 4.0
• Lanes: up to 24
• DMI: version 4 up to 8 lanes
• Thunderbolt 4: supported
• Package:
• Socket: FCLGA 1851
• Size: 45 × 37.5 mm
• Max Temperature: 105°C
• Technologies:
• Intel Thread Director
• Intel Turbo Boost 2.0
• Intel Speed Shift and SpeedStep
• Gaussian and Neural Accelerator 3.5
• Instruction Sets: SSE4.1, SSE4.2, AVX2
• Security:
• Intel AES
• Intel Boot Guard
• Control Flow Enforcement
• Trusted Execution Technology
• Virtualization: VT-x and VT-d
