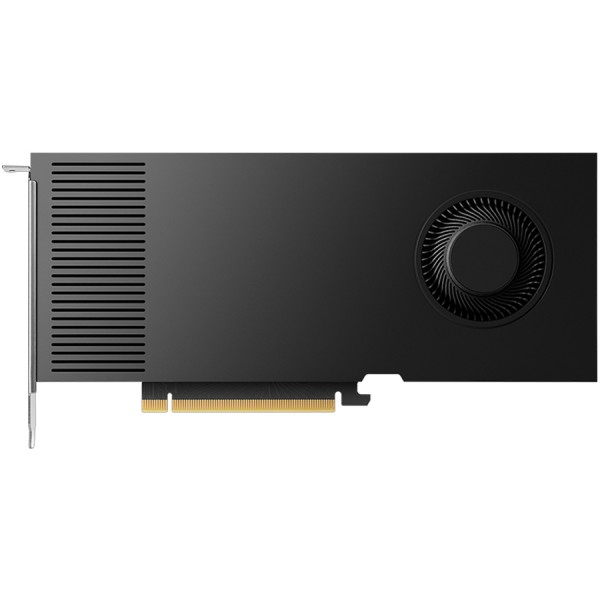

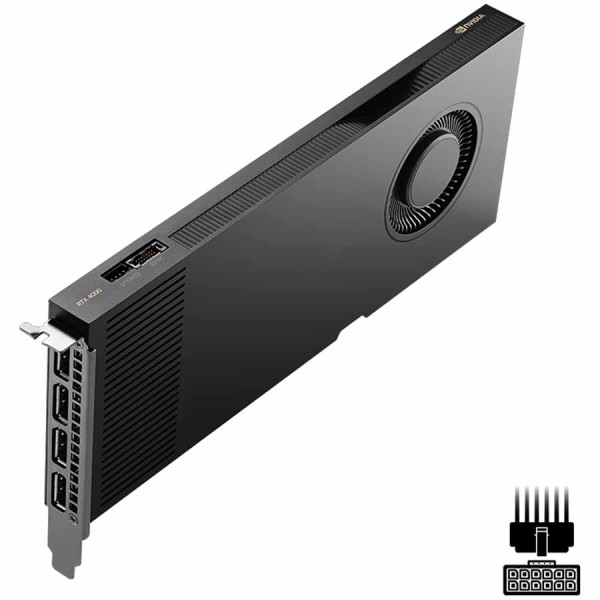

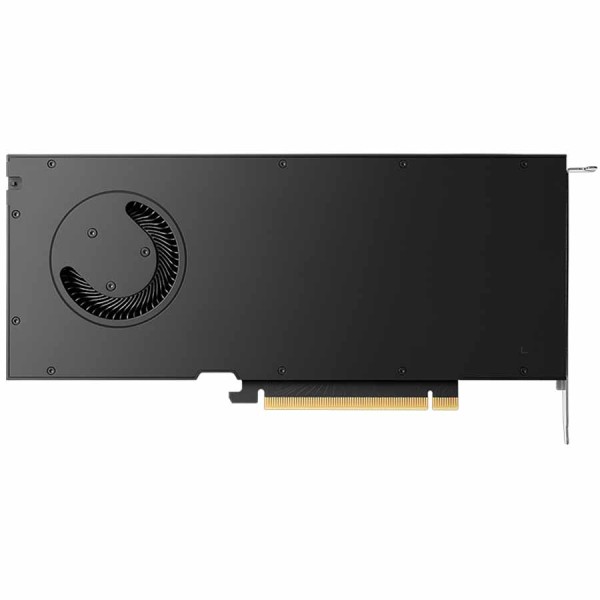

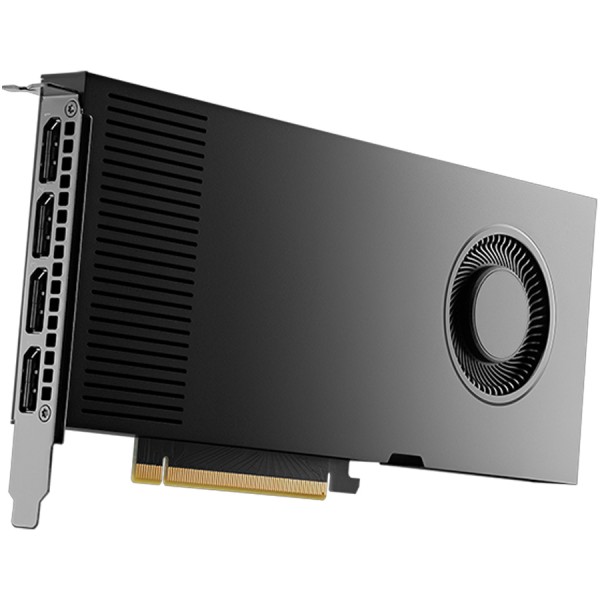

Pro Graphics Card NVIDIA RTX 4000 Ada Generation ,20GB GDDR6 ,Ada Lovelace architecture ,with Tensor Cores ,with RT Cores ,20GB GDDR6 ECC memory ,4× DisplayPort 1.4a

The NVIDIA RTX 4000 Ada Generation is an advanced professional GPU based on the Ada Lovelace architecture, designed to deliver exceptional performance and power efficiency in a compact single-slot form factor. It is built for demanding professional workflows such as 3D design, engineering, and simulation.

Key Features:

• High-performance professional GPU based on Ada Lovelace architecture
• Powerful AI acceleration with Tensor Cores
• Advanced ray tracing performance with RT Cores
• Large 20GB GDDR6 ECC memory for professional workloads
• Compact single-slot design for workstation compatibility
• Advanced video encoding/decoding with AV1 support
• Efficient power consumption with up to 130W TDP
• Professional display support via DisplayPort 1.4a

Technical Specifications:

Architecture & Process

• Architecture: NVIDIA Ada Lovelace
• Foundry: TSMC
• Process Size: 4nm NVIDIA Custom Process
• Transistors: 35.8 billion
• Die Size: 294.5 mm²

Compute Units

• CUDA Cores: 6,144
• Tensor Cores: 192
• RT Cores: 48

Performance

• Single-Precision: 26.7 TFLOPS
• Ray Tracing: 61.8 TFLOPS
• Tensor Performance: 427.6 TFLOPS

Memory

• Memory: 20GB GDDR6 ECC
• Memory Interface: 160-bit
• Bandwidth: 360 GB/s

Power & Interface

• Power Consumption: 130W
• Bus: PCI Express 4.0 x16

Display & Support

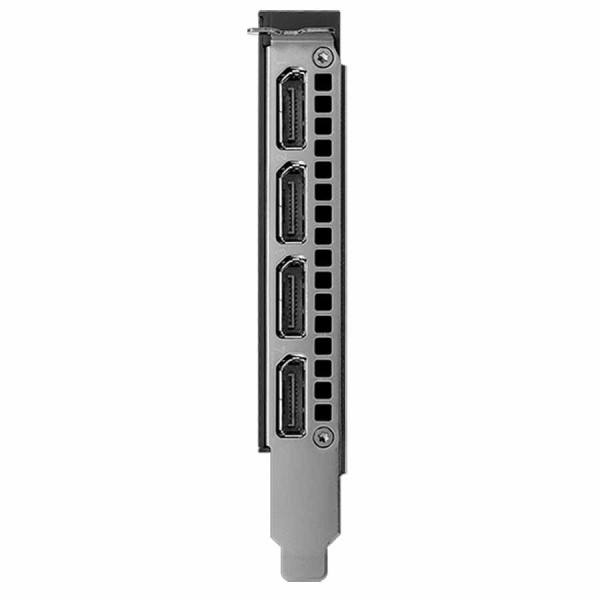

• Display Outputs: 4× DisplayPort 1.4a
• 3D Vision Support: 3-pin mini DIN
• Frame Lock: Compatible with Quadro Sync II
• NVLink: Not Supported

Video Engine

• NVENC / NVDEC: 2x / 2x with AV1 Encode & Decode

Design

• Form Factor: 4.4" × 9.5" Single Slot
• Weight: 528g
• Cooling: Blower Active Fan
