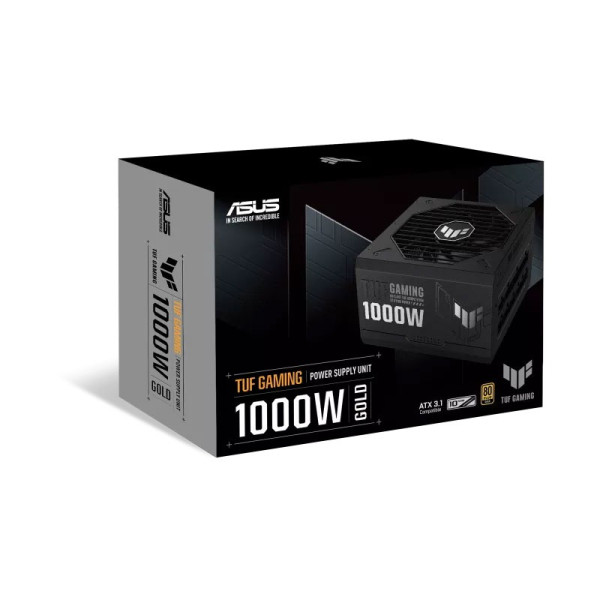

Power Supply ASUS TUF GAMING 1000W – 80+ GOLD ATX 3.1 High-Performance PSU

The ASUS TUF Gaming 1000W Power Supply (Model: 90YE00S1-B0NA00) is built to deliver robust and reliable power for high-performance gaming systems. Certified with 80 PLUS Gold efficiency and compliant with the latest ATX 3.1 and PCIe 5.0 standards, this PSU is engineered for next-gen GPUs and CPUs. Featuring premium components, a durable fan design, and military-grade capacitors, it ensures clean, stable power delivery under extreme conditions.

• Key Features:

• Power Output: 1000W – High-performance for gaming and workstation builds
• Certification: 80 PLUS Gold – High energy efficiency under typical loads
• Form Factor: ATX 3.1 – Future-ready with native PCIe 5.0 support
• Cooling: 135mm Axial-tech fan with dual ball bearings
• Build Quality: Military-grade components for long-term durability
• Compatibility: Native 16-pin 12VHPWR cable for RTX 40-series GPUs
• Protection: Comprehensive power protection (OPP, OVP, UVP, SCP, OCP, OTP)
• Warranty: Backed by ASUS TUF reliability and long warranty coverage

• Technical Specifications:

• Model Number: 90YE00S1-B0NA00
• Power Output: 1000 Watts
• Efficiency Certification: 80 PLUS Gold
• Form Factor: ATX 3.1
• Input Voltage Range: 100-240V AC
• Input Current: 13A
• Frequency: 50/60Hz
• Fan Type: 135mm Axial-tech fan with dual ball bearings (low-noise, long lifespan)
• Modular Design: Fully modular – only use the cables you need
• Main Connectors:
• 1 x 24-pin ATX
• 2 x 4+4-pin CPU (EPS)
• 4 x 6+2-pin PCIe
• 1 x 16-pin 12VHPWR (600W)
• Multiple SATA and Molex connectors
• Protection Features:
• Over Power Protection (OPP)
• Over Voltage Protection (OVP)
• Under Voltage Protection (UVP)
• Short Circuit Protection (SCP)
• Over Current Protection (OCP)
• Over Temperature Protection (OTP)
• Dimensions: 150 x 150 x 86 mm
• MTBF: >100,000 hours
• Operating Temperature: 0 – 50°C
• Color: Black with TUF Gaming aesthetic
• Compliance: ATX 12V v3.1, PCIe 5.0 ready, ErP Lot 3 2014

Engineered for longevity and stability, the ASUS TUF Gaming 1000W 80+ Gold PSU is the ideal choice for modern high-end gaming PCs and workstations, offering next-gen readiness, excellent cooling, and unmatched durability
