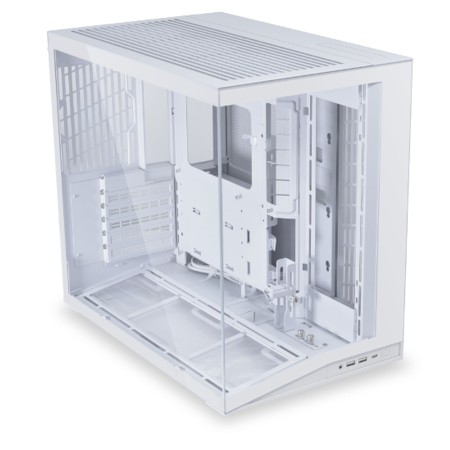

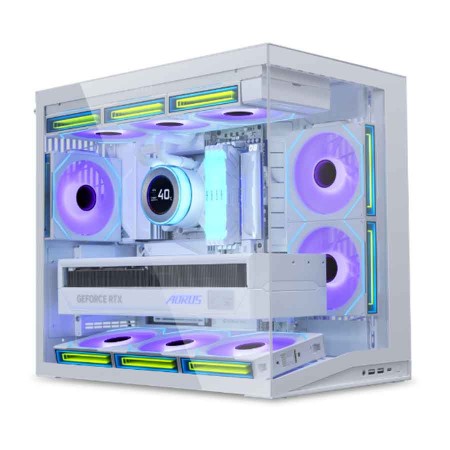

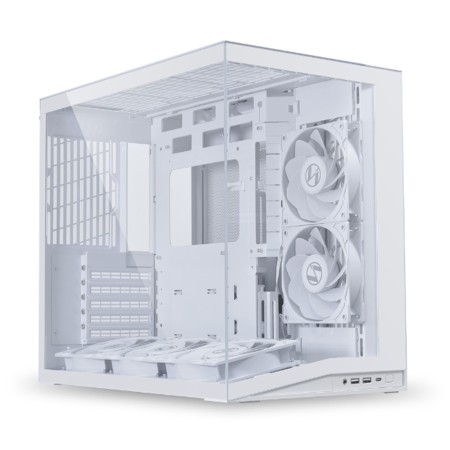

Lian Li O11D Mini V2 Flow - Pillar-less Panoramic - Back-Connect - White

The Lian Li O11 Dynamic Mini V2 Flow is a compact high-performance case with a 45.38L volume, designed to maximize airflow efficiency while supporting powerful hardware inside a premium showcase-style chassis with full tempered glass panels and a pillar-less design for a completely unobstructed interior view.

Key Features:

• Compact 45.38L chassis with strong support for high-end components
• Pillar-less tempered glass front and side panels for a clean panoramic showcase
• Angled 10° bottom design to improve GPU airflow and enhance visual presentation
• Supports ATX / Micro-ATX / Mini-ITX / Back-Connect ATX motherboards
• GPU clearance up to 400mm with built-in anti-sag brackets
• Radiator support up to 360mm (top) and 240mm (side)
• Supports up to 9 × 120mm fans for strong airflow potential
• Includes Reverse Blade PWM fans for optimized airflow direction
• Clean internal layout with hidden cable management design

Technical Specifications:

• Model Name: O11D MINI V2 Flow
• Model Number: O11DMIV2FW (White)
• Dimensions: 423.6 × 273.3 × 391.95 mm (D × W × H)
• Materials:
  • 2mm Aluminum panels
  • 1mm Mesh panels
  • 4mm Tempered glass

Motherboard Support

• ATX
• Micro-ATX
• Mini-ITX
• Back-Connect ATX

Expansion & Storage

• Expansion slots: 5
• Storage support:
  • 2× 2.5” SSD / 3.5” HDD
  • 2× 2.5” SSD (behind motherboard tray)

Hardware Clearance

• GPU length: up to 400mm
• CPU cooler height: up to 160mm
• PSU support: ATX (under 200mm)

Cooling Support

• Top: 360 / 280 / 240mm
• Side: 240mm
• Fan support:
  • Top: 3×120mm or 2×140mm
  • Side: 2×120mm
  • Bottom: 3×120mm
  • Rear: 1×120mm

Included Fans

• 2× 120mm Reverse Blade PWM (Side)
• 3× 120mm Reverse Blade PWM (Bottom)

Front I/O Ports

• 2× USB 3.0
• 1× USB 3.2 Type-C
• 1× Audio jack
• Power button
