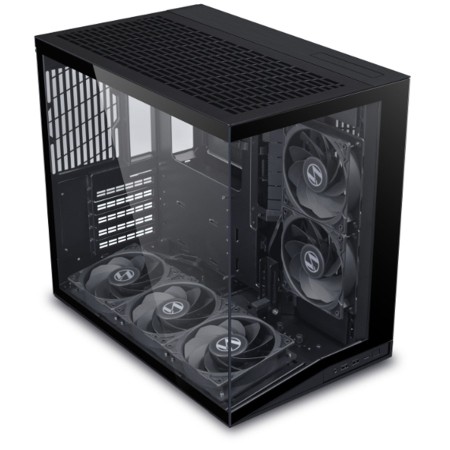

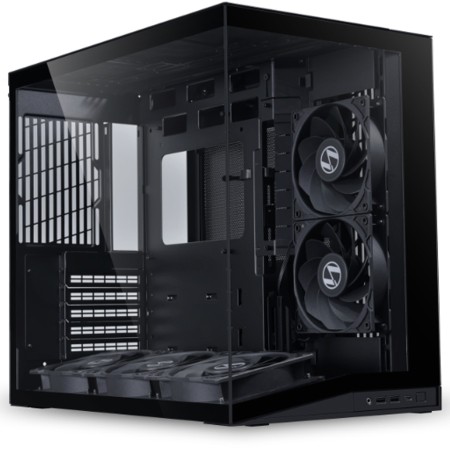

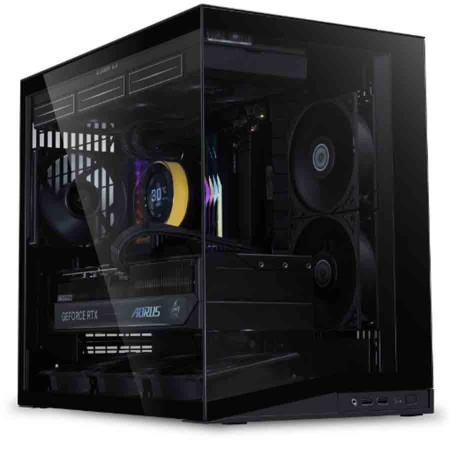

Lian Li O11D Mini V2 Flow Gaming Case - Compact Mid Tower - 5x PWM Fans - Tempered Glass - Black

The LIAN LI O11 Dynamic Mini V2 Flow is a refined evolution of the iconic O11 series, offering exceptional airflow, premium aesthetics, and extensive hardware compatibility within a compact 45.38L chassis. Featuring pillar-less tempered glass front and side panels, it provides an uninterrupted view of your build, while the unique 10° angled bottom design improves GPU airflow and visual presentation. With support for modern ATX Back-Connect motherboards, high-end GPUs, and advanced liquid cooling configurations, it is an ideal choice for enthusiasts and gamers seeking both performance and style.

Key Features:

• Compact 45.38L chassis with expanded hardware compatibility.
• Pillar-less tempered glass front and side panels for a panoramic internal view.
• 10° angled bottom panel enhances GPU airflow and aesthetics.
• Supports:
  • ATX Back-Connect
  • ATX
  • Micro-ATX
  • Mini-ITX motherboards
• Supports GPUs up to 400mm in length.
• Supports CPU coolers up to 160mm in height.
• Compatible with ATX power supplies up to 200mm long.
• Supports up to a 360mm top radiator for advanced liquid cooling.
• Accommodates up to 9 × 120mm fans.
• Pre-installed with 5 PWM fans:
  • 2 × 120mm Reverse Blade PWM side fans
  • 3 × 120mm Reverse Blade PWM bottom fans
• Includes horizontal and vertical GPU anti-sag brackets.
• Optimized airflow-focused mesh design.
• Removable bottom dust filter for easy maintenance.

Technical Specifications:

General Information

• Product Name: O11D MINI V2 Flow
• Model Number: O11DMIV2FX BLACK
• Color: Black

Dimensions & Materials

• Dimensions: 423.6 × 273.3 × 391.95 mm (D × W × H)
• Materials:
  • 2mm Aluminum Panel
  • 1mm Mesh Panel
  • 4mm Tempered Glass

Motherboard Support

• ATX Back-Connect
• ATX
• Micro-ATX
• Mini-ITX

Expansion Slots

• 5 Slots

Storage Support

• Drive Cage:
  • 2 × 3.5" HDD
  • or 2 × 2.5" SSD
• Behind Motherboard Tray:
  • 2 × 2.5" SSD

Hardware Clearance

• Maximum GPU Length: 400mm
• Maximum CPU Cooler Height: 160mm
• PSU Support: ATX (Under 200mm)

Radiator Support

• Top:
  • 240mm
  • 280mm
  • 360mm
• Side:
  • 240mm

Note: A 280mm top radiator requires mounting the motherboard one slot lower.

Fan Support

• Top:
  • 3 × 120mm or 2 × 140mm
• Side:
  • 2 × 120mm
• Bottom:
  • 3 × 120mm
• Rear:
  • 1 × 120mm

Included Fans

• Side:
  • 2 × 120mm Reverse Blade PWM Fans
• Bottom:
  • 3 × 120mm Reverse Blade PWM Fans

Front I/O Ports

• 2 × USB 3.0
• 1 × USB 3.2 Type-C
• 1 × Audio Port
• 1 × Power Button

Dust Filter

• 1 × Bottom Dust Filter
