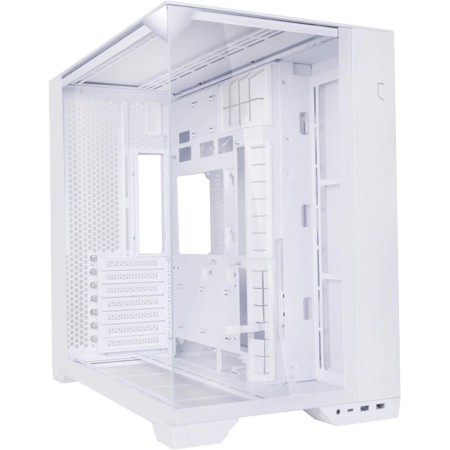

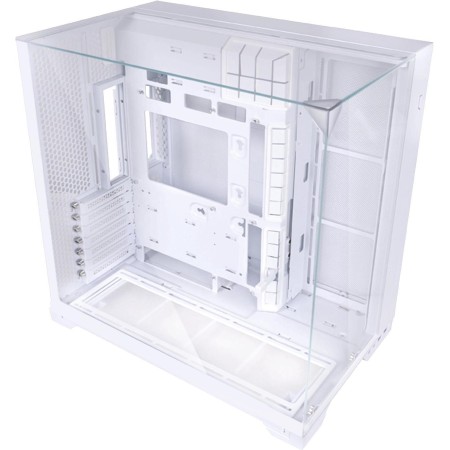

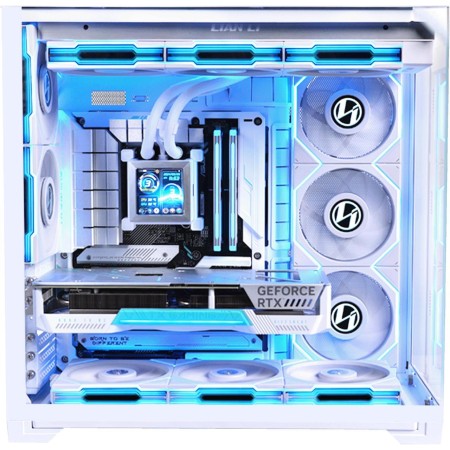

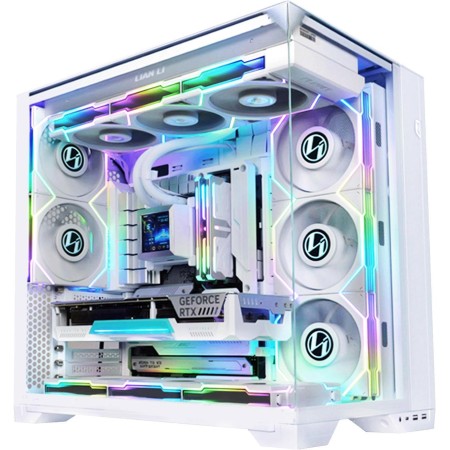

Lian Li O11 Vision Compact Case - 3-Side Tempered Glass - Aluminum - White

The LIAN LI O11 Vision Compact is a more compact and versatile evolution of the iconic O11 series, combining premium panoramic aesthetics, advanced cooling support, and extensive customization options in a smaller footprint. Developed in collaboration with PC Master Race (PCMR), the chassis is designed to provide maximum freedom for enthusiasts seeking a clean, high-end showcase build with support for modern back-connect motherboards and advanced liquid cooling setups.

Key Features:

• Triple-sided Panoramic Tempered Glass design
• Columnless Front Corner for uninterrupted hardware visibility
• Swappable Mesh Top and Tempered Glass Top
• Vision Mode with 270-degree panoramic visibility
• Mesh Mode for enhanced airflow and cooling
• Supports up to 11 Cooling Fans
• Supports up to 4 Radiator Mounting Areas
• Radiator support up to 360mm
• Compatible with Back-Connect ATX Motherboards
• Concealed AIO Tube Routing Design
• Dual-Chamber Layout for clean cable management
• Fully Modular Design
• Internal mounting support for optional IPS display
• Built-in adjustable GPU Anti-Sag Bracket
• Easy-access removable bottom dust filter
• Advanced cable management system with Velcro straps and hidden routing
• Storage capacity for up to 4 Drives
• Reduced chassis volume by 10.4L compared to the original O11 Vision
• Premium construction using aluminum, steel, and tempered glass



Technical Specifications:

• Model: O11VPX White
• Case Type: Tower Chassis
• Color: White
• Dimensions:
  447.5 × 287.5 × 446.4 mm
• Materials:
  Steel
  4.0mm Tempered Glass
  3.0mm Tempered Glass
  Aluminum
• Motherboard Support:
  Back-Connect ATX
  E-ATX (Under 280mm)
  ATX
  Micro-ATX
  Mini-ITX
• Expansion Slots: 6+1

• Storage Support:
  Behind Motherboard Tray:
  2 × 2.5" SSD

  Drive Cage:
  2 × 3.5" HDD or 2 × 2.5" SSD

• Maximum GPU Length: 408mm
• Maximum CPU Cooler Height: 167mm
• PSU Support: ATX (Up to 220mm)

Fan Support

• Top:
  3 × 120mm or 2 × 140mm
• Side:
  3 × 120mm
• Bottom:
  3 × 120mm
• Rear:
  2 × 120mm

Radiator Support

• Top:
  240mm / 280mm / 360mm
• Side:
  240mm / 360mm
• Bottom:
  240mm / 360mm

Front I/O

• Power Button ×1
• USB 3.0 ×2
• USB Type-C ×1
• Audio Port ×1

Dust Filter

• Full-length removable bottom dust filter for easy cleaning
