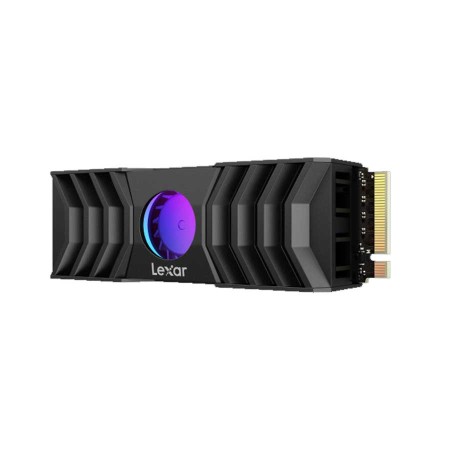

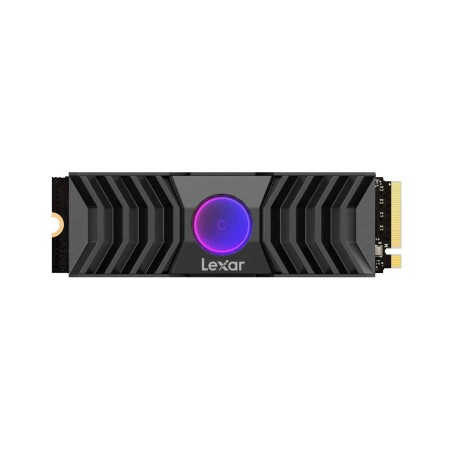

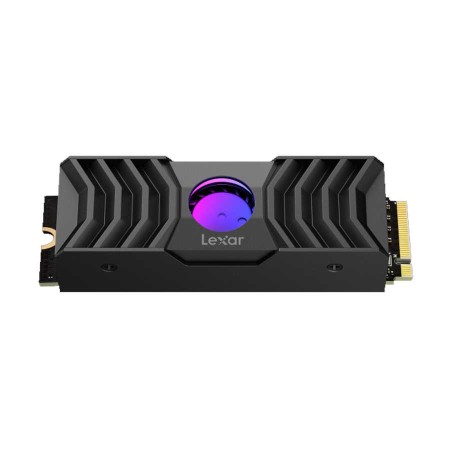

Lexar NM1090 1TB M.2 NVMe PCIe 5.0 SSD with Heatsink - Up to 12,000MB/s

The Lexar Professional NM1090 1TB is a high-end PCIe Gen5 NVMe SSD designed for extreme performance systems. It delivers ultra-fast speeds for gaming, content creation, and professional workloads, and uses the M.2 2280 form factor with an included heatsink to maintain thermal stability under heavy load.

Key Features:

• Ultra-Fast Gen5 Performance
  • Up to 12000MB/s read
  • Up to 11000MB/s write
• High Random Performance
  • Up to 1400K IOPS read
  • Up to 1400K IOPS write
  • Strong performance for multitasking and heavy workloads
• Integrated Heatsink Design
  • Maintains stable temperatures
  • Reduces thermal throttling
• Gaming Optimized
  • Supports DirectStorage
  • Faster loading times and smoother asset streaming
• High Reliability
  • 1400TBW endurance
  • 1500000 hours MTBF

Technical Specifications:

• Capacity: 1TB
• Form Factor: M.2 2280
• Interface: PCIe 5.0 x4 NVMe
• Sequential Read: Up to 12000MB/s
• Sequential Write: Up to 11000MB/s
• Random Read: Up to 1400K IOPS
• Random Write: Up to 1400K IOPS
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Shock Resistance: 1500G (0.5ms, Half Sine Wave)
• Vibration Resistance: 10–2000Hz, 20G
• Dimensions: 80 × 24 × 17.35 mm
• Weight: 72.5g
• Warranty: 5 Years Limited
• Total Bytes Written (TBW): 1400TBW
