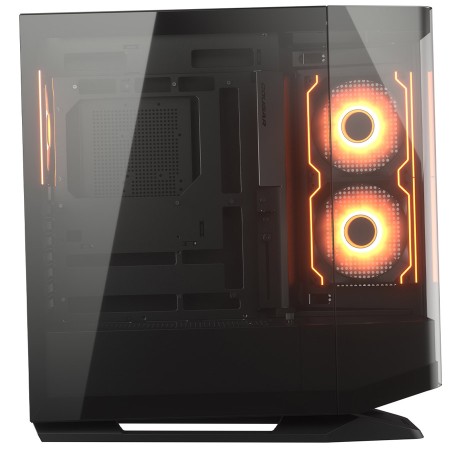

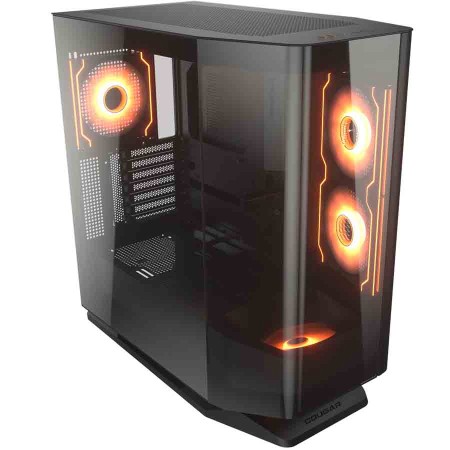

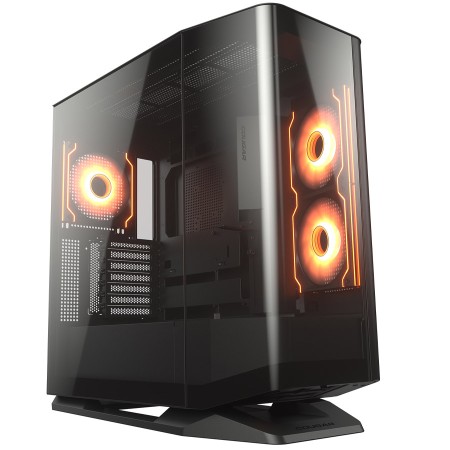

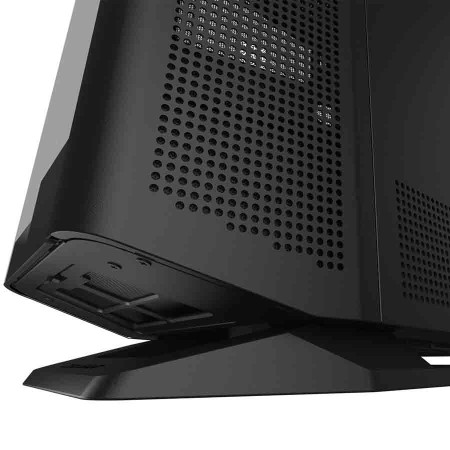

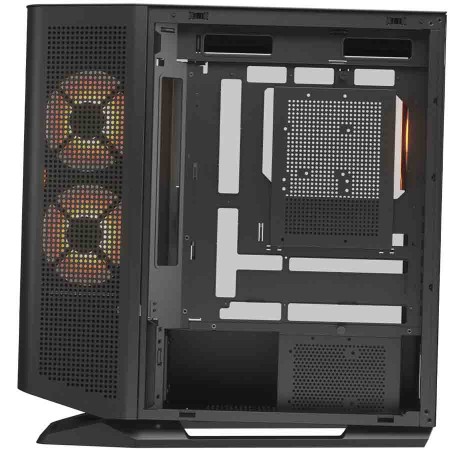

English: COUGAR FV270 RGB Mid Tower – Supports E-ATX – 4 ARGB Fans

The COUGAR FV270 RGB is a premium Mid Tower PC case designed for gaming enthusiasts and high-performance PC builders. It supports motherboards up to E-ATX, offers exceptional airflow with four pre-installed ARGB PWM fans, extensive liquid cooling compatibility, and supports both horizontal and vertical GPU installation for a clean showcase build.

Key Features:

• Premium Mid Tower gaming chassis.
• Available in Black and White.
• Supports Mini-ITX, Micro-ATX, ATX, CEB, and E-ATX motherboards.
• Includes 4 pre-installed ARGB PWM fans.
• Supports up to 9 cooling fans.
• Supports liquid cooling radiators up to 360mm.
• Integrated PWM & ARGB Hub with motherboard synchronization.
• Horizontal and vertical GPU mounting support.
• Supports graphics cards up to 450mm (vertical).
• CPU air cooler clearance up to 180mm.
• PSU support up to 250mm.
• Front USB Type-C Gen 2 connectivity.
• Dual USB 3.0 ports.
• Combined 3.5mm headset audio jack.
• Dedicated RGB lighting control button.

Technical Specifications:

General

• Product: COUGAR FV270 RGB
• Form Factor: Mid Tower
• Colors: Black / White
• Dimensions: 268 × 530 × 512 mm

Motherboard Support

• Mini-ITX
• Micro-ATX
• ATX
• CEB
• E-ATX

Front I/O

• 1 × USB Type-C Gen 2
• 2 × USB 3.0
• 1 × 4-Pole Headset Audio Jack
• RGB Control Button

Drive Bays

• 2 × 3.5"
• Up to 4 × 2.5"

Expansion Slots

• 7 Slots
• Convertible for vertical GPU installation

Fan Support

• Top: 3 × 120mm or 2 × 140mm
• Motherboard Side: 2 × 120mm or 2 × 140mm
• PSU Shroud: 2 × 120mm or 2 × 140mm
• Bottom: 1 × 120mm
• Rear: 1 × 120mm or 1 × 140mm

Maximum Fan Support: 9 Fans

Pre-installed Fans

• 2 × 140mm Reverse ARGB PWM
• 1 × 120mm Reverse ARGB PWM
• 1 × 140mm ARGB PWM

Fan Speed

• 500 (±200) – 1200 (±10%) RPM

Fan Connectors

• 5V 3-Pin ARGB
• 4-Pin PWM

Liquid Cooling Support

• Top: 360 / 280 / 240 / 140 / 120mm
• Motherboard Side: 280 / 240 / 140 / 120mm
• PSU Shroud: 240 / 120mm
• Rear: 140 / 120mm

Maximum GPU Length

• Horizontal:
  • 420mm (Fans only on motherboard side)
  • 330mm (Radiator + fans installed)
• Vertical:
  • 450mm

Maximum CPU Cooler Height

• 180mm

Maximum PSU Length

• 250mm

RGB & PWM Sync

• Motherboard synchronization supported

Weight

• Net Weight: 14.46kg
• Gross Weight: 16.86kg

Packaging Dimensions

• Product: 268 × 520 × 538 mm
• Package: 345 × 595 × 604 mm
