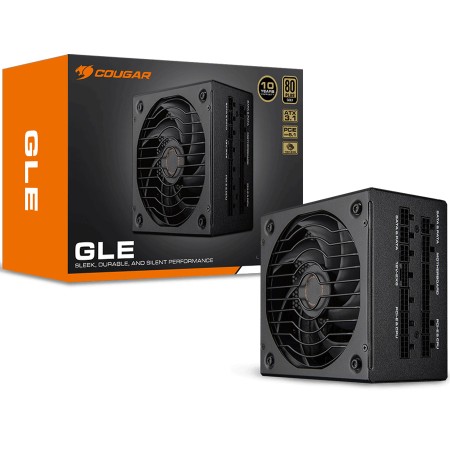

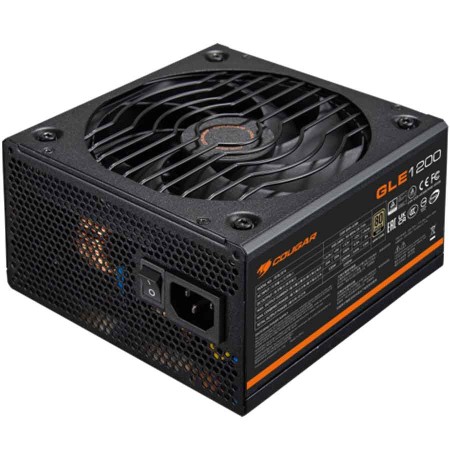

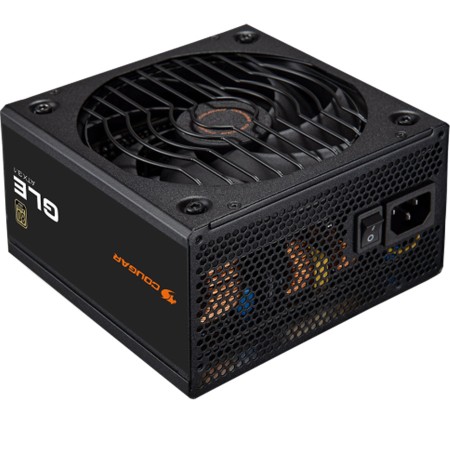

COUGAR 31GF120005P01 GLE 1200W Fully Modular Power Supply | ATX 3.1 | 80 PLUS Gold | PCIe 5.1
The COUGAR GLE 1200W is a premium power supply built for high-performance gaming PCs and professional workstations. Featuring 80 PLUS Gold certification with up to 91% efficiency, it complies with the Intel ATX 3.1 standard and includes a native PCIe 5.1 12V-2X6 connector to power next-generation graphics cards through a single cable. Its fully modular design, premium Japanese capacitors, and quiet 135mm HDB fan ensure exceptional efficiency, stability, and long-term reliability.
Key Features:
• 1200W high-performance power output.
• 80 PLUS Gold certified with up to 91% efficiency.
• Intel ATX 3.1 compliant.
• Native PCIe 5.1 12V-2X6 (12+4 Pin) connector.
• Supports up to 200% power excursion according to ATX 3.1 specifications.

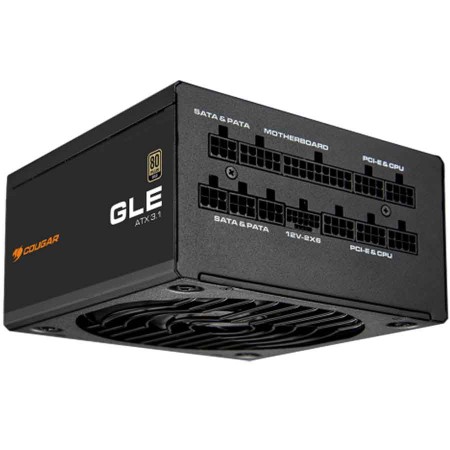

• Fully modular cable design for improved airflow and cable management.
• 135mm Hydro Dynamic Bearing (HDB) fan for quiet and durable operation.
• Integrated fan stabilizing ring reduces vibration and turbulence.
• 100% premium Japanese 105°C capacitors.
• Advanced LLC + DC-DC + Tri-Sense design for precise voltage regulation.
• Tight ±2% voltage regulation for stable power delivery.
• Reliable operation at ambient temperatures up to 40°C.
• Flat embossed black modular cables for clean and easy installation.
• Compatible with the latest Intel and AMD multi-core platforms.
Technical Specifications:
• Part Number: 31GF120005P01
• Model: COUGAR GLE 1200
• Rated Power: 1200W
• Efficiency Certification: 80 PLUS Gold
• ATX Standard: Intel ATX 3.1
• PCIe Support: PCI Express 5.1
• GPU Connector: Native 12V-2X6 (12+4 Pin)
• Modular Design: Fully Modular
• Cooling Fan: 135mm Hydro Dynamic Bearing (HDB)
• Capacitors: 100% Japanese 105°C Capacitors
• Efficiency: Up to 91%
• Input Voltage: AC 100–240V
• Input Frequency: 50–60Hz
• +12V Rail: 100A (1200W)
• +3.3V Rail: 20A
• +5V Rail: 20A
• -12V Rail: 0.3A
• +5VSB Rail: 3A
• Operating Temperature: Up to 40°C
Protection Features
• Over Voltage Protection (OVP)
• Under Voltage Protection (UVP)
• Over Current Protection (OCP)
• Short Circuit Protection (SCP)
• Over Temperature Protection (OTP)
• Over Power Protection (OPP)
