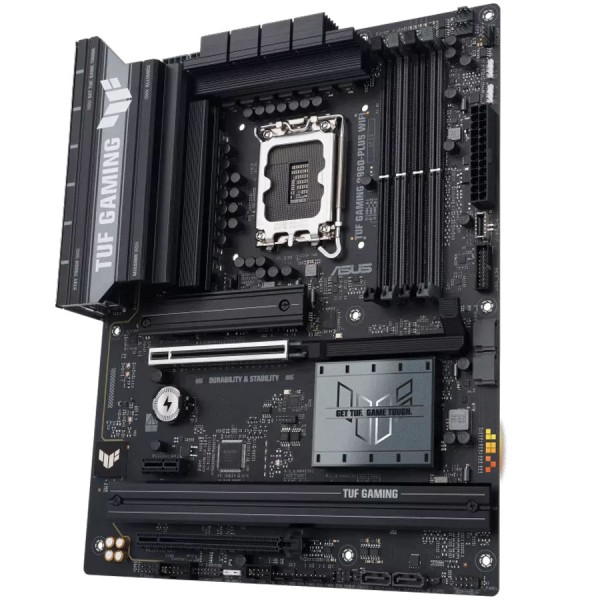

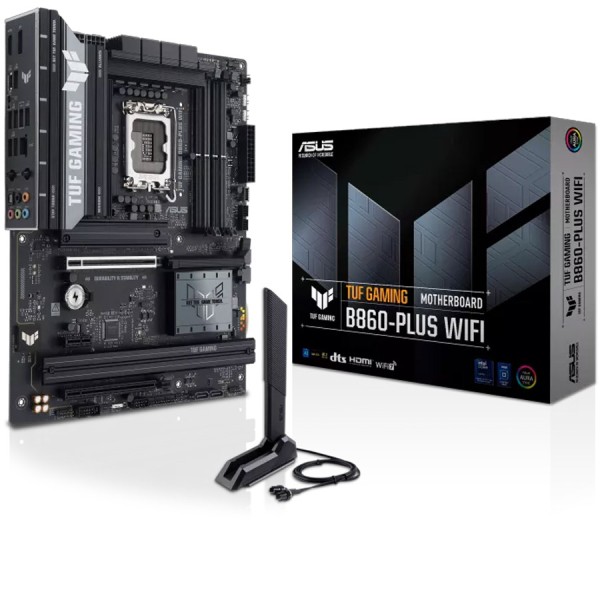

ASUS TUF GAMING B860-PLUS WIFI 7 LGA 1851 ATX, DDR5 DIMM Slots ,Up to 256GB ,PCIe 5.0 x16 ,3 × M.2 Slots

The ASUS TUF GAMING B860-PLUS WIFI is a durable and high-performance gaming motherboard built for the latest Intel® Core™ Ultra Series 2 processors. Featuring support for DDR5, PCIe 5.0, and ultra-fast Wi-Fi 7, it combines military-grade components, advanced cooling, and reliable power delivery for stable gaming and AI-ready performance.

Key Features:

• Supports Intel® Core™ Ultra Series 2 Processors
• Intel® B860 Chipset
• Supports up to 256GB DDR5
• Memory speed up to 8666+ MT/s (OC)
• PCIe 5.0 x16 slot
• Wi-Fi 7 and Bluetooth 5.4
• 2.5Gb Ethernet
• Up to 3 × M.2 slots
• Advanced VRM & M.2 cooling
• Aura Sync RGB support
• BIOS FlashBack™
• ATX Form Factor



Technical Specifications:

CPU & Chipset

• Socket: LGA1851
• Supports Intel® Core™ Ultra Processors (Series 2)
• Intel® B860 Chipset
• Supports:
  • Intel® Turbo Boost 2.0
  • Intel® Turbo Boost Max 3.0

Memory

• 4 × DDR5 DIMM Slots
• Up to 256GB
• Up to 8666+ MT/s (OC)
• Dual Channel Architecture
• Supports XMP
• Supports ASUS AEMP III

Graphics & Display Outputs

• 1 × DisplayPort 1.4
• 1 × HDMI 2.1
• 1 × USB Type-C 20Gbps with Display Output
• Supports up to 4K 60Hz

Expansion Slots

• 1 × PCIe 5.0 x16
• 1 × PCIe 4.0 x16
• 1 × PCIe 4.0 x1

Storage

• 3 × M.2 Slots
• 4 × SATA 6Gb/s Ports
• Supports:
  • PCIe 5.0 NVMe
  • PCIe 4.0 NVMe
  • RAID 0 / 1 / 5 / 10

Networking & Connectivity

• Realtek 2.5Gb Ethernet
• Wi-Fi 7
• Supports:
  • 2.4GHz
  • 5GHz
  • 6GHz
• Wireless speeds up to 2.9Gbps
• Bluetooth 5.4

USB Connectivity

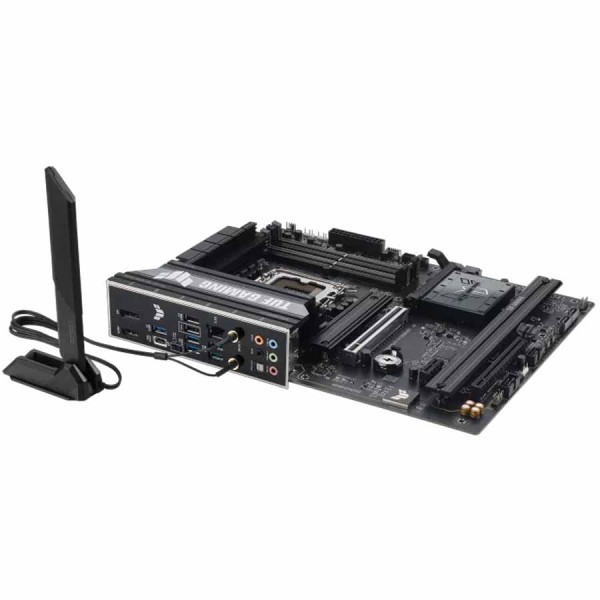

Rear I/O

• 1 × USB Type-C 20Gbps
• 2 × USB 10Gbps
• 3 × USB 5Gbps
• 2 × USB 2.0

Front USB

• 1 × USB Type-C 10Gbps
• 2 × USB 5Gbps
• 2 × USB 2.0

Audio

• Realtek 7.1 HD Audio
• Supports 24-Bit / 192kHz
• Optical S/PDIF Output
• Premium audio capacitors

Cooling & Power

• 1 × CPU Fan Header
• 1 × CPU OPT Header
• 1 × AIO Pump Header
• 4 × Chassis Fan Headers
• 2 × 8-Pin CPU Power Connectors

Additional Features

• SafeSlot
• Q-LED
• Q-DIMM
• M.2 Q-Latch
• Aura Sync RGB
• BIOS FlashBack™
• Stainless Steel Rear I/O

Operating System

• Windows 11 (22H2 & Later)

Form Factor

• ATX
• Dimensions:
  • 30.5 × 24.4 cm
