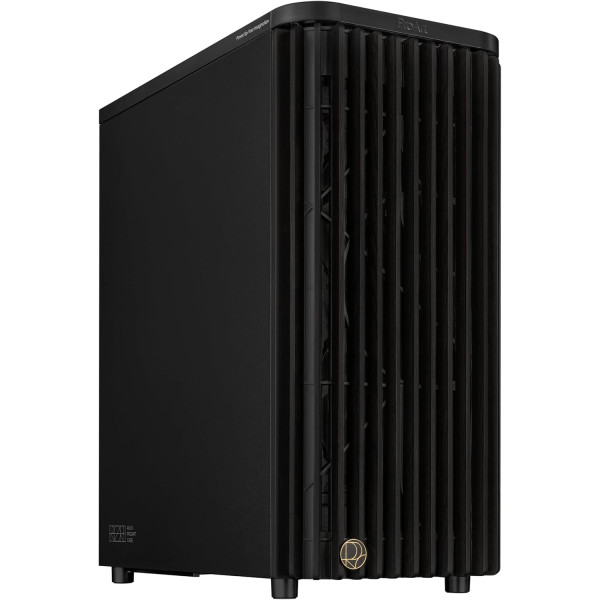

The ASUS ProArt PA401 Wood Edition blends artistic elegance with professional-grade performance, making it the ideal chassis for creators, designers, and users who demand style without compromising airflow or expandability. With its thoughtfully engineered layout and premium materials, it delivers quiet, cool, and clean aesthetics for modern workstation builds.
Key Features:
Premium wood-accented front panel design for a natural, elegant aesthetic
Tempered glass side panel to showcase internal components
Optimized airflow with pre-installed fans and versatile cooling support
Tool-free front panel and drive bays for easy installation
Spacious interior supporting ATX, micro-ATX, and mini-ITX motherboards
Designed with creators in mind – functionality meets style
Technical Specifications:
Model Name: ProArt PA401 Wood Edition
Part Number: 90DC00M0-B39000
Case Type: Mid Tower
Material: Steel frame, tempered glass side panel, wood-accented front panel
Motherboard Support: ATX / Micro-ATX / Mini-ITX
Side Panel: Tempered glass (hinged or removable, depending on configuration)

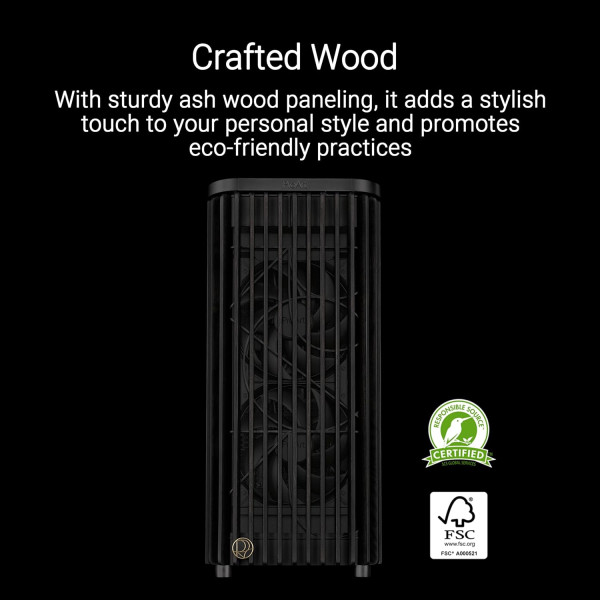

Front Panel Design: Real wood accent with optimized ventilation slats
Expansion Slots: 7
Drive Bays:
2 × 3.5" HDD
2 × 2.5" SSD
Pre-installed Fans:
Front: 2 × 140 mm
Rear: 1 × 120 mm

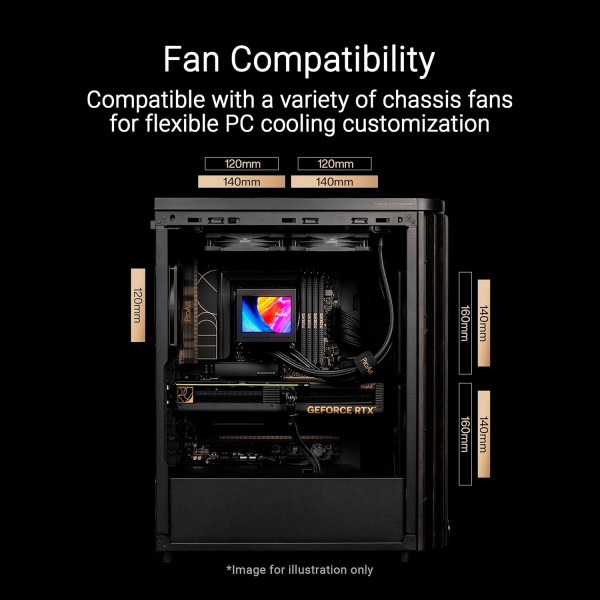

Fan Support:
Front: 3 × 120 mm or 2 × 140 mm
Top: 2 × 120/140 mm
Rear: 1 × 120 mm
Radiator Support:
Front: Up to 360 mm
Top: Up to 280 mm
Rear: 120 mm
Maximum GPU Length: Up to 380 mm
Maximum CPU Cooler Height: Up to 170 mm
Power Supply Support: ATX (up to 200 mm, depending on drive cage configuration)
I/O Ports:
2 × USB 3.2 Gen 1 Type-A
1 × USB 3.2 Gen 2 Type-C
1 × Audio Combo Jack (Headphone/Mic)
Dust Filters: Magnetic and removable (top, front, bottom)
Dimensions: Approx. 498 × 235 × 493 mm (L × W × H)
Weight: Approx. 8.6 kg
