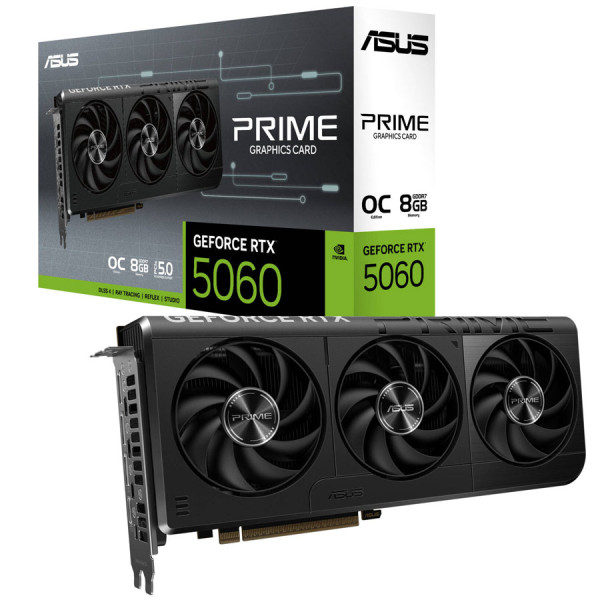

The ASUS PRIME GeForce RTX 5060 OC Edition is a factory-overclocked, midrange powerhouse based on NVIDIA’s Blackwell RTX 50 architecture. Designed to excel at 1080p high‑settings gaming and light 1440p, it delivers a solid combination of performance, thermals, and efficiency.
Key Features at a Glance
GPU Model: NVIDIA GeForce RTX 5060 (3840 CUDA cores)
Factory Overclocked Boost Clock: 2595 MHz (OC mode) / 2565 MHz standard
Memory: 8 GB GDDR7 @ 28 Gbps on a 128‑bit bus (≈ 448 GB/s bandwidth)
Power Draw: ~145‑180 W TGP; powered by a single 8‑pin connector
Bus Interface: PCIe 5.0 x16 (electrically x8)
Cooling: Triple Axial‑Tech fans with Dual‑Ball bearings + 0 dB fan stop under 50 °C
Cooling Design: 2.5‑slot heatsink, MaxContact heat spreader, vented backplate, stainless bracket
Dimensions: 268.3 × 120 × 50 mm, ~775 g
Display Outputs: 3 × DisplayPort 2.1b + 1 × HDMI 2.1b, HDCP 2.3
VRAM & Resolutions: Supports up to 7680 × 4320 px; ideal for 1080p, some 1440p
Dual BIOS: Switch between Performance or Quiet profiles
Recommended PSU: Minimum 550 W
