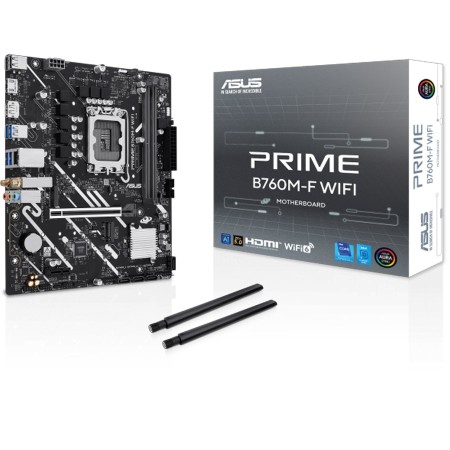

ASUS PRIME B760M-F WIFI Motherboard - Intel LGA1700 - DDR5 - PCIe 5.0 - Wi-Fi 6

ASUS PRIME B760M-F WIFI DDR5 Micro-ATX Intel LGA1700 Motherboard with PCIe 5.0 & WiFi 6

The ASUS PRIME B760M-F WIFI is built to deliver reliable performance for modern Intel processors, making it an excellent choice for gaming, content creation, and everyday computing. Powered by the Intel B760 chipset, it features an LGA1700 socket, DDR5 memory support, PCIe 5.0, dual PCIe 4.0 M.2 slots, integrated Wi-Fi 6, and ASUS-exclusive cooling and protection technologies for a stable, high-performance PC that's ready for next-generation AI workloads.

Key Features:

• Supports Intel Core 14th, 13th & 12th Gen, Pentium Gold, and Celeron processors.
• Intel B760 chipset with LGA1700 socket.
• Supports up to 96GB DDR5 memory at speeds up to 8000MT/s (OC).
• PCIe 5.0 x16 slot for next-generation graphics cards.
• Dual PCIe 4.0 M.2 slots for ultra-fast NVMe SSDs.
• Four SATA 6Gb/s ports with Intel Rapid Storage RAID support.
• Built-in Wi-Fi 6 and Bluetooth 5.3.
• Realtek Gigabit Ethernet for reliable wired networking.
• DisplayPort 1.4 and HDMI 1.4 video outputs.
• Advanced cooling with Fan Xpert 2+.
• Aura Sync RGB with Addressable Gen 2 RGB headers.
• Two-Way AI Noise Cancelation for crystal-clear communication.
• ASUS 5X Protection III for enhanced durability and stability.

Technical Specifications:

• Model: ASUS PRIME B760M-F WIFI
• Chipset: Intel B760
• CPU Socket: Intel LGA1700
• CPU Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron
• Memory: 2 × DDR5 DIMM, up to 96GB
• Memory Speed: Up to 8000MT/s (OC)
• Expansion Slot: 1 × PCIe 5.0 x16
• Storage: 2 × PCIe 4.0 M.2, 4 × SATA 6Gb/s
• Ethernet: Realtek 1Gb LAN
• Wireless: Wi-Fi 6, Bluetooth 5.3
• Video Outputs: DisplayPort 1.4, HDMI 1.4
• Audio: Realtek 7.1 HD Audio
• Rear USB: 4 × USB 5Gbps, 2 × USB 2.0
• Form Factor: Micro-ATX (24.4 × 21.1 cm)
