17,499 15,217

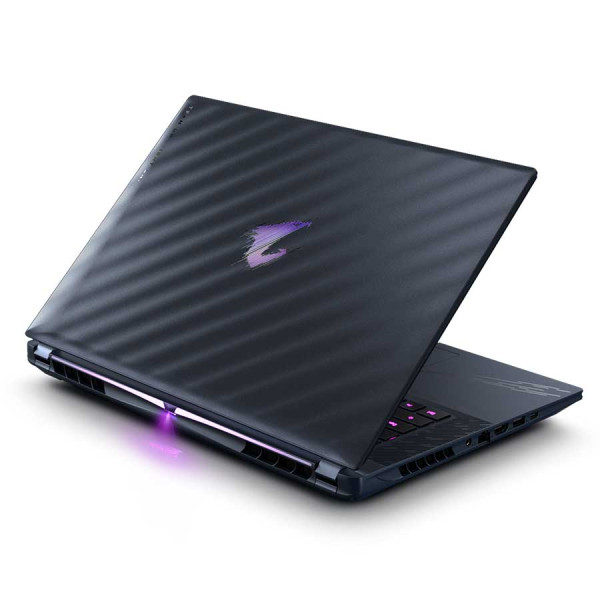

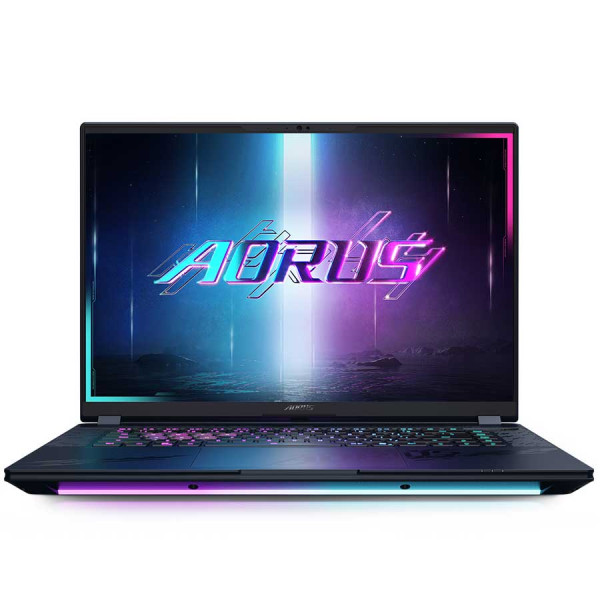

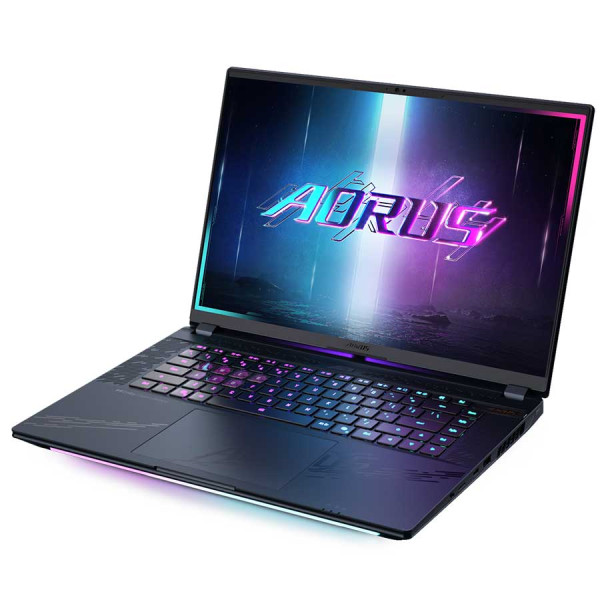

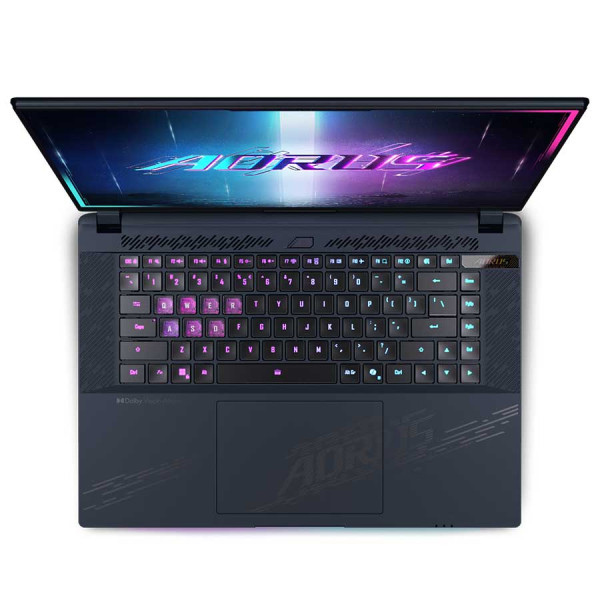

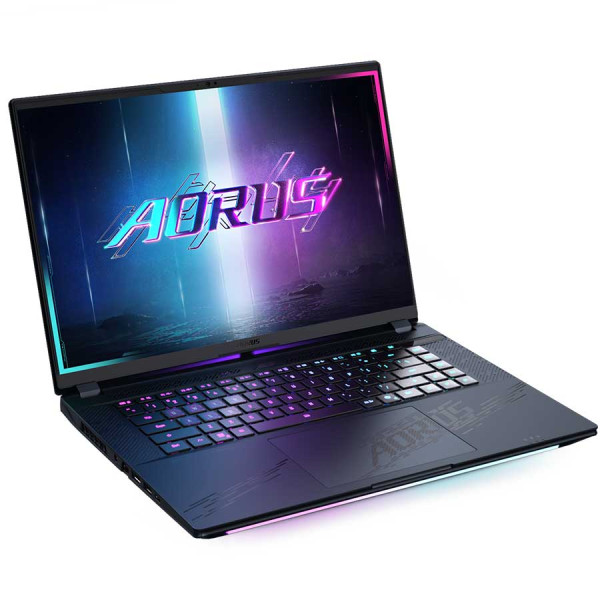

The AORUS MASTER 16 AM6H BZH is a high-performance gaming laptop powered by the Intel® Core™ Ultra 9 275HX processor and NVIDIA GeForce RTX 5090 24GB GPU. It features a stunning 16-inch OLED display with 2560×1600 resolution and 240Hz refresh rate, along with 32GB DDR5 RAM and a 1TB PCIe Gen4 SSD. Advanced cooling, Wi-Fi 7 connectivity, and Thunderbolt 5 ports make it perfect for gaming and creative work.
Key Features
Processor: Intel® Core™ Ultra 9 275HX — 24-core (8P + 16E), up to 5.4 GHz turbo, 36 MB cache, integrated NPU
Graphics: NVIDIA GeForce RTX 5090 Laptop GPU — 24 GB GDDR7, up to 175 W TGP with Dynamic Boost, supports DLSS 4 and real-time ray tracing
Display: 16-inch OLED WQXGA (2560×1600) with 240 Hz refresh rate, 1 ms response time, 100% DCI-P3 color gamut, VESA DisplayHDR True Black 500, G-SYNC support
Memory & Storage: 32 GB DDR5-5600 RAM (expandable to 64 GB); 1 TB PCIe Gen4 M.2 SSD with an additional Gen5 slot for up to 4 TB total storage
Cooling System: WINDFORCE Infinity EX with vapor chamber, dual 158-blade fans, thermal capacity up to 230 W
Connectivity: Wi-Fi 7, Bluetooth 5.4; includes Thunderbolt 5 & 4, HDMI 2.1, USB-A, microSD card reader, RJ-45 Ethernet port
Battery & Power: 99 Wh battery with USB-C Power Delivery fast charging; 330 W AC adapter included
Weight & Dimensions: Approximately 2.5 kg; dimensions 357 x 254 x 23–29.9 mm
Technical Specifications
Processor
Model: Intel® Core™ Ultra 9 275HX
Cores/Threads: 24 cores (8 Performance + 16 Efficient), 24 threads
Base/Turbo Frequency: Base ~2.1 GHz, turbo up to 5.4 GHz
Cache: 36 MB L3 cache
Additional: Integrated Neural Processing Unit (NPU)
Graphics
GPU: NVIDIA GeForce RTX 5090 Laptop GPU
VRAM: 24 GB GDDR7
TGP: Up to 175 W with Dynamic Boost
Features: DLSS 4, real-time ray tracing, NVIDIA Advanced Optimus
Display
Type: 16-inch OLED
Resolution: WQXGA (2560×1600), 16:10 aspect ratio
Refresh Rate: 240 Hz
Response Time: 1 ms
Color Gamut: 100% DCI-P3
Brightness: 500 nits peak
Contrast Ratio: 1,000,000:1
Certifications: Pantone validated, Dolby Vision, VESA DisplayHDR True Black 500
Adaptive Sync: NVIDIA G-SYNC
Memory
Capacity: 32 GB DDR5-5600 (2 x 16 GB)
Expandable To: 64 GB
Storage
Primary Storage: 1 TB PCIe Gen4 M.2 SSD
Additional Slot: PCIe Gen5 M.2 slot, supporting up to 4 TB total storage
Cooling
System: WINDFORCE Infinity EX
Fans: Dual 158-blade fans
Cooling Features: Vapor chamber, 0.1 mm fins, 4-way airflow
Thermal Capacity: Up to 230 W
Connectivity
Wireless: Wi-Fi 7 (802.11be 2x2), Bluetooth 5.4
Ports:

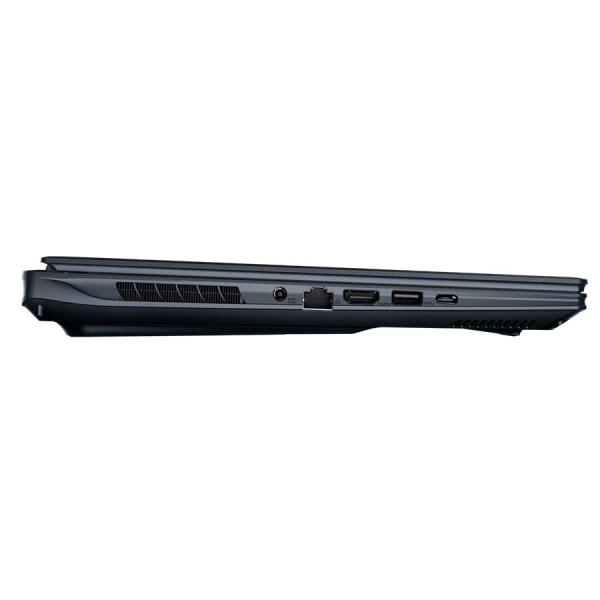

Left side: DC-in, RJ-45 Ethernet, HDMI 2.1, USB-A 3.2 Gen 2, Thunderbolt 5 (USB4, DisplayPort 2.1, Power Delivery 3.0)

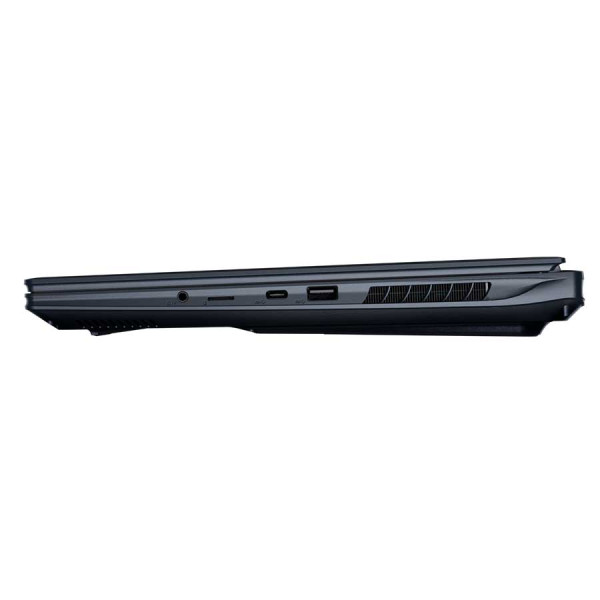

Right side: USB-A 3.2 Gen 2, Thunderbolt 4, microSD (UHS-II) card reader, 3.5 mm combo audio jack
Audio & Camera
Speakers: 4 x 2 W (2 woofers + 2 tweeters), Dolby Atmos support, Smart Amplifier
Camera: 1080p IR webcam with Windows Hello support, built-in microphone array with AI noise cancellation
Battery & Power
Battery: 99 Wh Li-polymer
Charging: USB-C Power Delivery fast charging (50% charge in ~30 minutes)
Power Adapter: 330 W AC adapter
Dimensions & Weight
Dimensions: 357 mm (W) × 254 mm (D) × 23–29.9 mm (H)
Weight: Approximately 2.5 kg
